18. LCD Assembly Replacement

This procedure provides instructions for removing and replacing the Liquid Crystal Display (LCD) once
the front panel assembly has been separated from the Spectrum Master.
1. Remove the front panel assembly as directed in section 17.
2. Place the front panel assembly face down on a protected work surface.
3. Remove the 14 Phillips screws that attach the backing plate to the front panel assembly.
4. Release the LCD display cable from the retaining clip on the front panel backing plate.

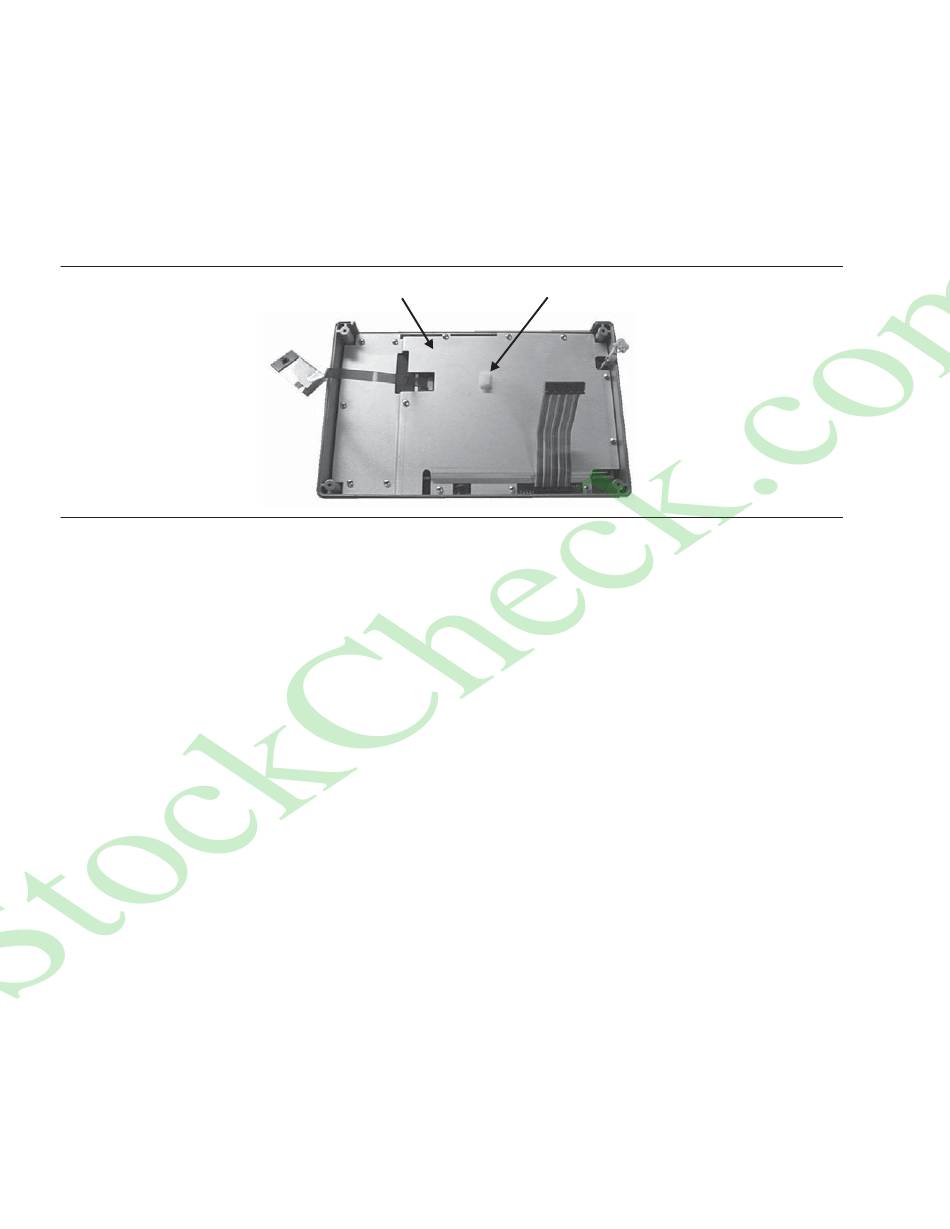

Figure 14. Front Panel Backing Plate
5. Remove the front panel backing plate, carefully feeding the LCD cable through the access hole to
avoid damage to the cable or connector.
6. Remove the rubber cushion pad from the LCD assembly and remove the assembly.
7. Reverse the above steps to install the replacement assembly.
36
FRONT PANEL
BACKING PLATE
LCD CABLE
RETAINING CLIP
