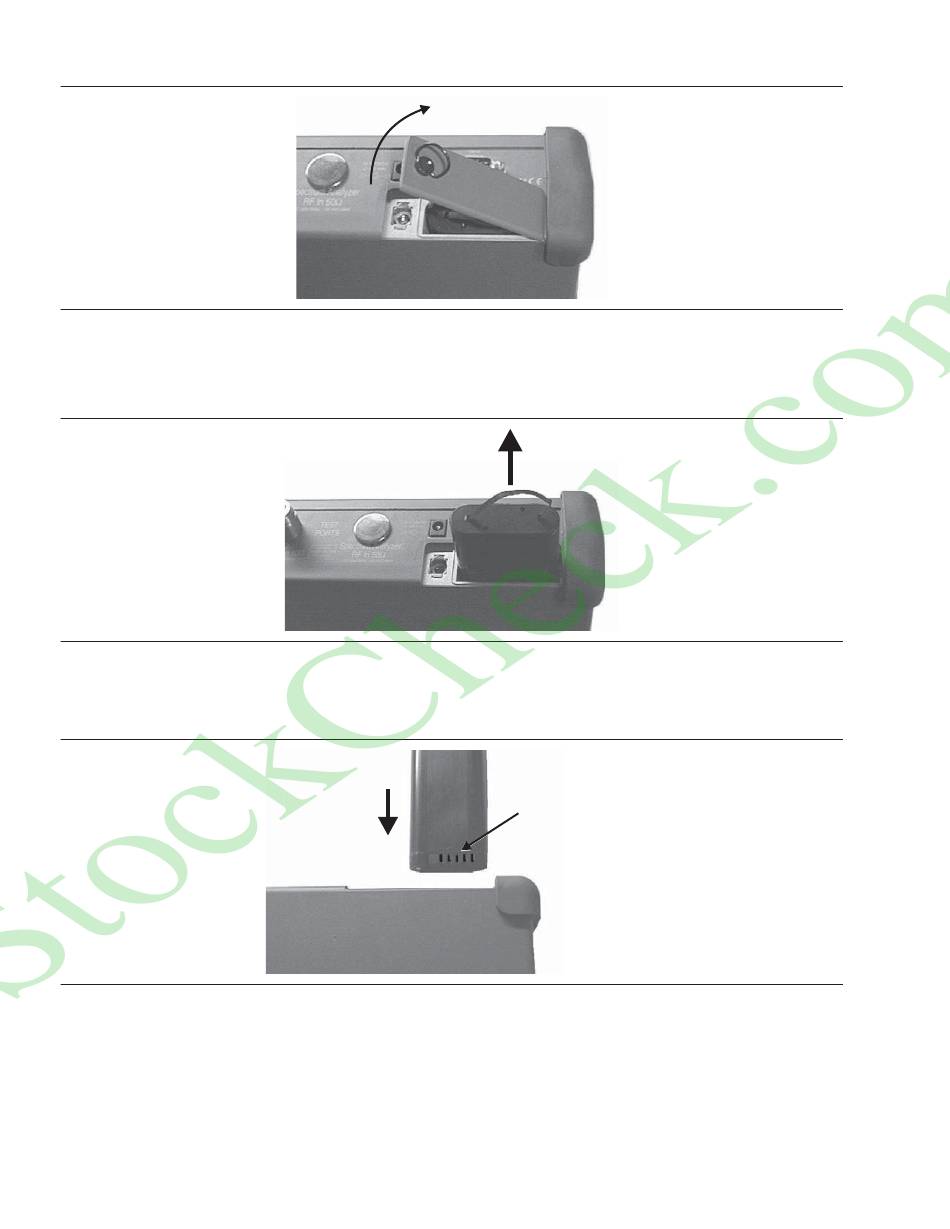

3. Lift the door and remove, as illustrated in Figure 8.

Figure 8. Removing the Battery Access Door

4. Grasp the battery lanyard and pull the battery straight up and out of the unit, as illustrated in Fig-

ure 9.

Figure 9. Removing the Battery

5. Replacement is the opposite of removal. Note the orientation of the battery contacts, and be sure to

insert the new battery with the contacts facing the rear of the unit (Figure 10).

Figure 10. Battery Orientation

BATTERY CONTACTS
