POWERING THE SYSTEM WITH SOLAR

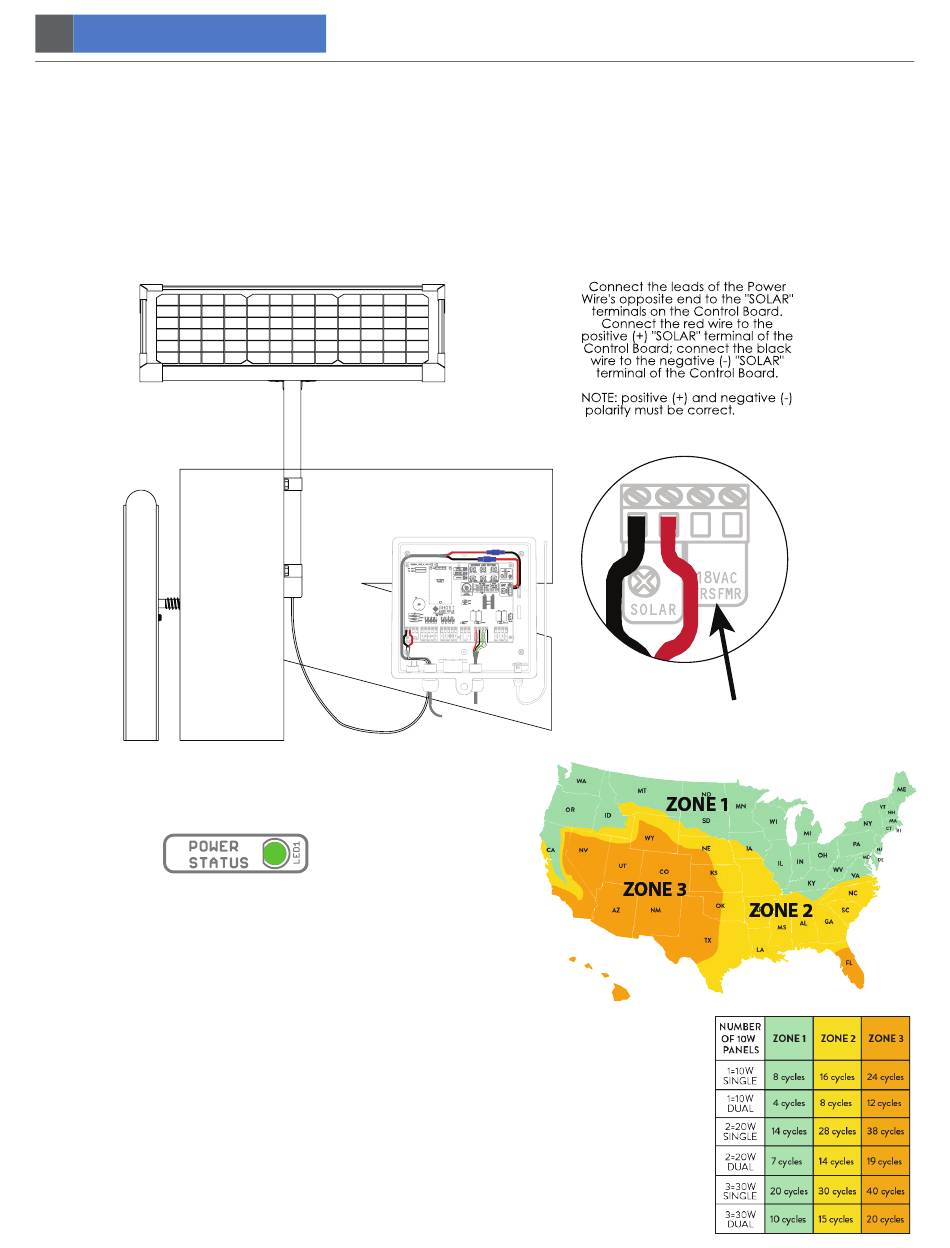

STEP 22. Adding a solar panel (optional) to the control box.
A . When wiring a Solar Panel you will need to insert the two solar wires into the SOLAR SCREW TERMINALS
which are located on the PWR INPUT section of the main control board. Once inserted then tighten each
screw so that the wires do not come loose and fall out. Please refer to diagram below. DO NOT CONNECT
AC TRANSFORMER IF USING SOLAR POWER.
B. Check that green LED (Power status) on top center of
control board is on. This indicates that the battery is being
charged.
C. Check the chart shown for number of hours of direct sun-
light available for solar applications.
D. Determine the number of expected winter cycles for a
single gate using solar power by reviewing the map and
chart shown.
A MAXIMUM OF 3 AXDP 10-WATT SOLAR PANELS OR NO
MORE THAN 30-WATTS OF SOLAR POWER SHOULD BE
CONNECTED TO ANY GHOST CONTROLS SYSTEM
CONTROL BOARD.
© G h o s t C o n t r o l s 2 0 1 9
Black
Operator Arm
Battery Harness
Red
DO NOT USE this terminal
if using Solar Panel
