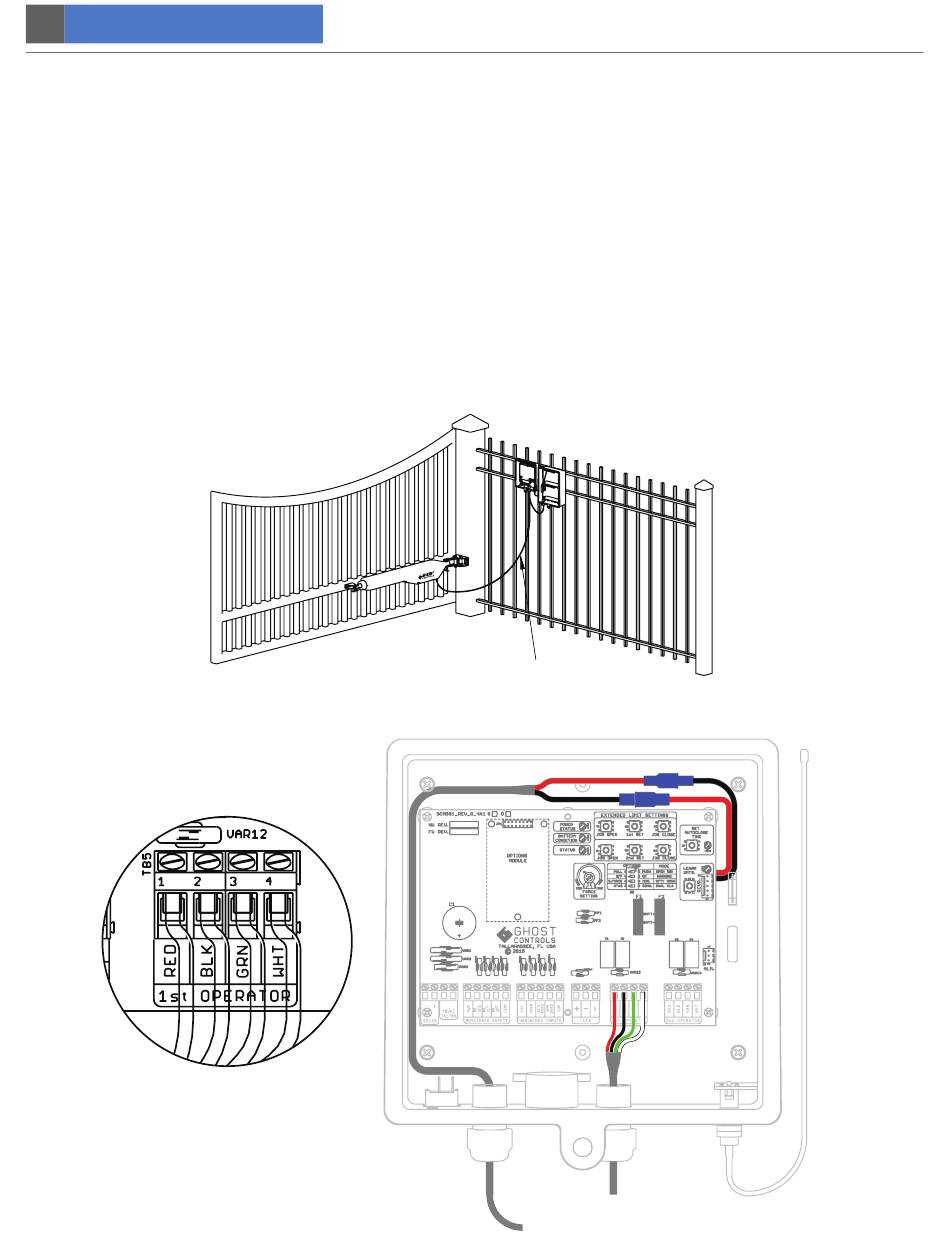

CONNECTING OPERATOR ARM TO CONTROL BOX
STEP 9. Insert the operator cable into the control box.
A . Route the operator cable through the same strain relief as
the battery harness cable and into the control box.
B. Connect the operator wires to the control board. Find the 1st operator screw terminal on control board and
insert the red, black, green and white wires (left to right) into the matching color coded terminals and tighten
each of the screws so that the wires do not come loose and fall out.
C. Make sure wires are not inserted too far into the terminal slots and that the wire insulation is not interfering
with contact to the system control board.
D. Tighten strain relief nuts on the control box to close the seals around the wires.
© G h o s t C o n t r o l s 2 0 1 9
Route the Control Cable of Operator 1
through the strain relief of theControl Box.
B
