P U S H - T O - O P E N
52

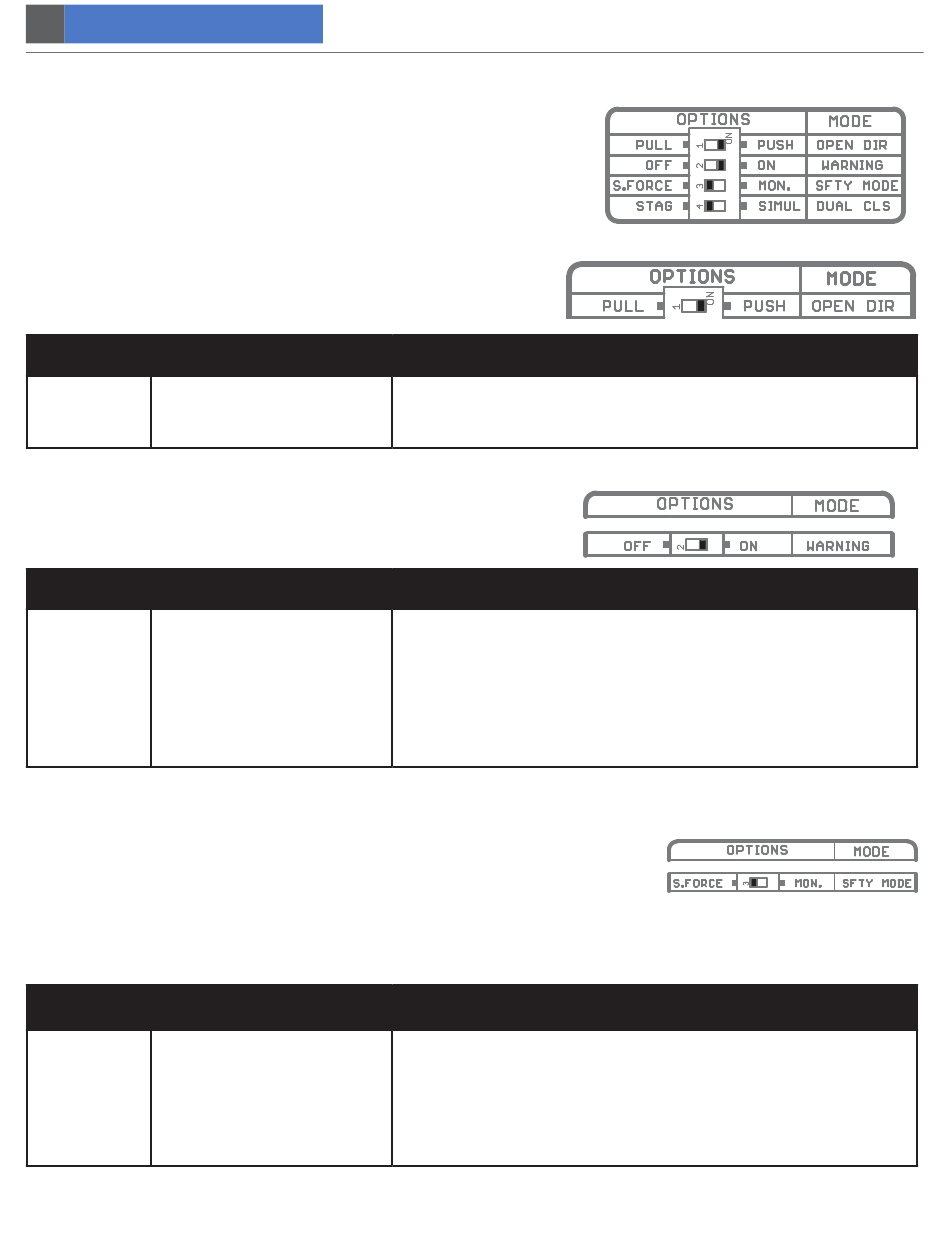

A . DIP SWITCH OPTION Settings. There are four DIP Switches located on the main control board (shown) that
must be positioned properly for your particular installation.
B. DIP #1 OPEN DIRECTION. The opening direction of the gate operator is determined by DIP#1.
DIP Switch # OFF Position
1
P u l l -To - O p e n
Default): Gate is pulled to open
into your property.
C. DIP #2 ALARM WARNING. The warning alarm is determined by DIP#2.
DIP Switch # OFF Position
2 Warning Disabled:
AUTOCLOSE and initial gate
movement alarm warning is dis-
abled. This does not disable the
alarm warning for consecu-
tive obstruction as required by
UL325 safety standard.
D. DIP #3 MONITORED SAFETY DEVICES. The mode of the monitored safety setting for the system is
determined by DIP#3. When using monitored external safety devices (such as monitored photo eyes), move
DIP Switch #3 to monitored safety mode.
UNIT WILL NOT OPERATE IN MONITORED SAFETY MODE WITHOUT MONITORED EXTERNAL SAFETY
DEVICES PRESENT, CONNECTED, AND POWERED ON.
DIP Switch # OFF Position
3 Patent-pending SafeForce®
Mode (Factory Default): Force
output is limited to ensure safe
operation as specified by Type
C in UL325 requirement.
© G h o s t C o n t r o l s 2 0 1 9
ON Position
( Fa c t o r y Push-To-Open Installation: Gate is pushed to open away from your
property.
ON Position
Warning Enabled (Factory Default): AUTOCLOSE and initial gate
movement warning is enabled.
ON Position
Monitored Safety Mode: Monitored safety devices required /
Compatible GHOST CONTROLS
safety devices must be present and operate properly as specified by
Type B1 or B2 in UL325 requirement. See monitored safety device
connection in the monitored photo eye instructions manual for more
details.
safety devices only. Monitored
®
