Ghost Controls DEP2 Installation And Owner's Manual page 49

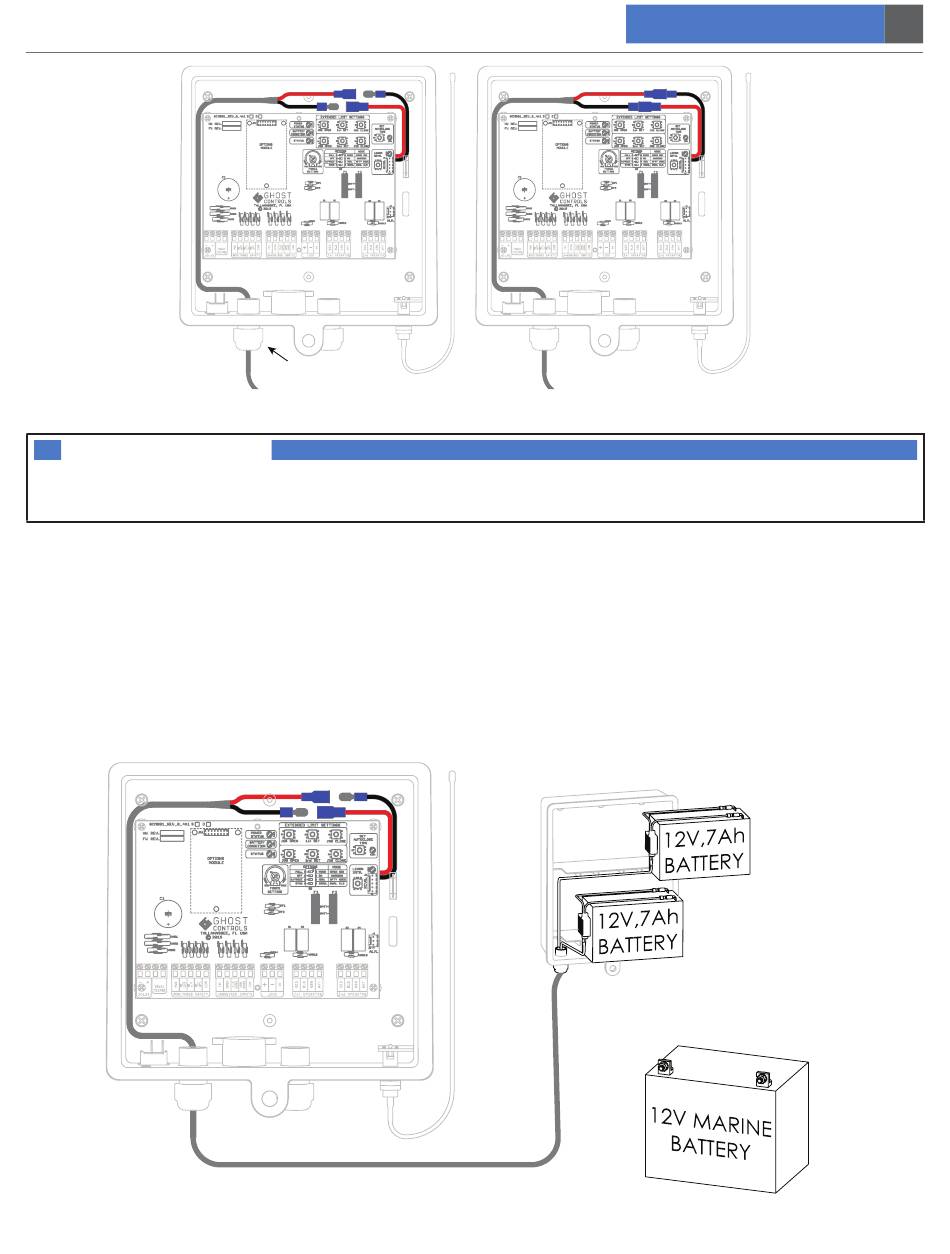

B. Connect the terminal leads of the battery harness to your battery.
IMPORTANT
YSYSTEM WILL NOT OPERATE WITHOUT BATTERY INSTALLED AND CONNECTED AT ALL TIMES.
IF USING SOLAR YOU WILL NEED TO HAVE TWO 12V BATTERIES.
Connect the battery harness from the control box to the battery.
Make sure RED WIRE CONNECTS TO BATTERY'S (+) TERMINAL. (CONNECT FIRST)
Make sure the BLACK WIRE CONNECTS TO BATTERY'S (-) TERMINAL.
IF USING THE ABBT BATTERY BOX ON A SOLAR INSTALLATION, WE RECOMMEND TWO BATTERIES BE
USED FOR EXTRA STORAGE CAPACITY.
Strain Relief
P U S H - T O - O P E N
2ND BATTERY COMPARTMENT
FOR SOLAR APPLICATIONS
2 BATTERIES REQUIRED
(ABBT) BATTERY BOX KIT
INCLUDES 1 BATTERY, WILL HOLD 2 BATTERIES
OR
© G h o s t C o n t r o l s 2 0 1 9
49
