PROGRAMMING THE CLOSED LIMIT FOR A PULL-TO-
OPEN INSTALLATION
This is the most common installation. The CLOSED limit is when the operator is extended and the gate is in the closed
position.
IMPORTANT
ONLY THE OPERATOR ARMS' EXTENDED LIMIT IS ADJUSTABLE AND CAN BE SET WITH THE CONTROL
BOARD. THE ARMS' RETRACTED POSITION IS FIXED AND IS NOT ELECTRONICALLY ADJUSTABLE.
THE OPEN POSITION IS SET BY HARDWARE MOUNTING ONLY. Please refer to the hardware installation to
make sure the retracted position is properly set/installed.
Installation Type
Pull-To-Open
TURN THE CONTROL BOX ON

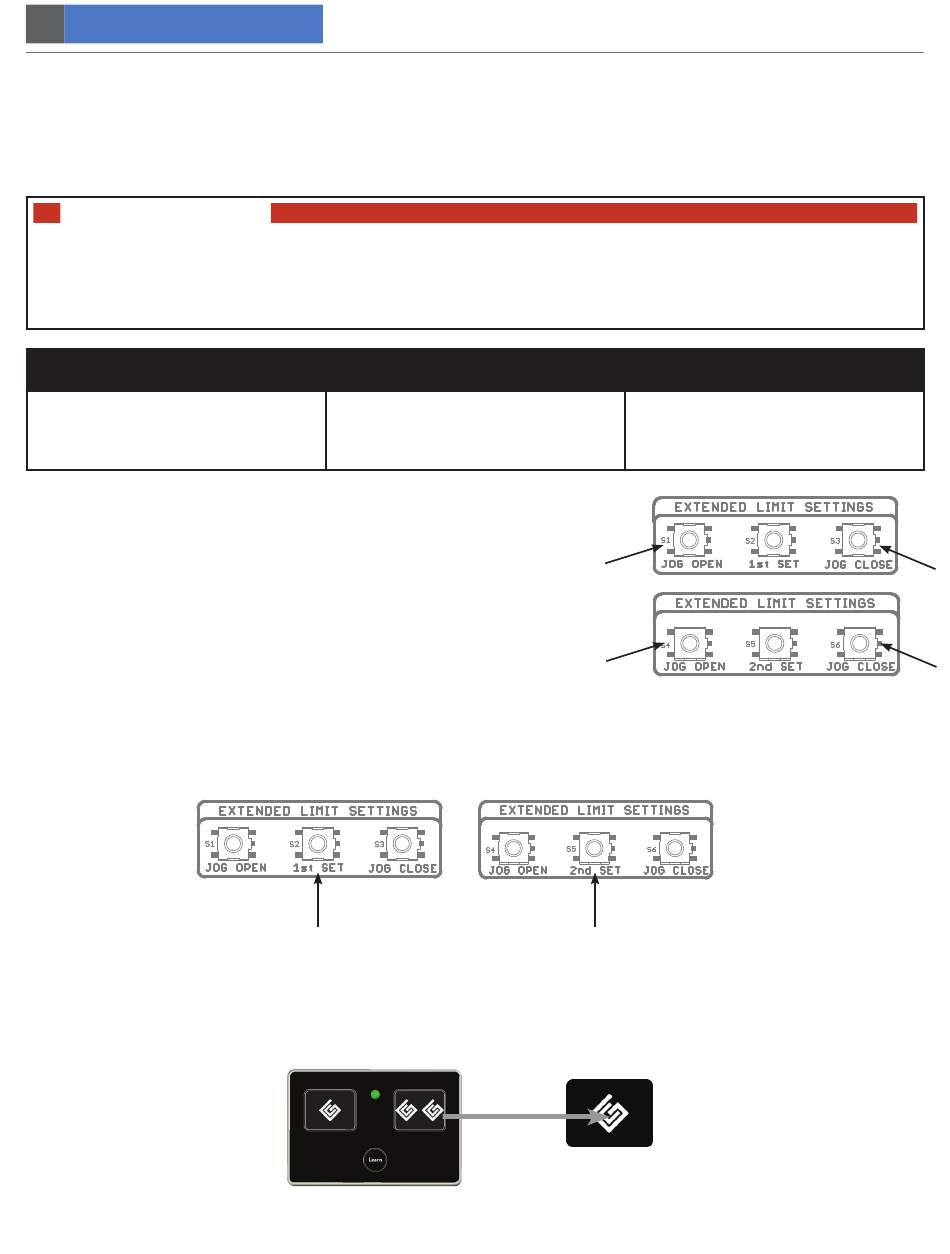

STEP 18. Setting the closed limit for each operator arm
A . Press and hold the JOG CLOSE button on the gate system control
board until the gate reaches the desired closed position. The gate
can move only if pressure is maintained. Releasing the JOG button
will stop the gate immediately. Once the 1st set is programmed
then repeat for the 2nd gate with the 2nd set JOG CLOSE button.
B. Both JOG OPEN or JOG CLOSE buttons are needed to 'fine' tune your desired CLOSED position.
STEP 19. Press and hold the 1st set limit button on the control panel until it beeps, then release. Then
Press and hold the 2nd set limit button until it beeps, then release
STEP 20. Press the transmitter button to activate the gate and let the gate open fully. You should
hear a single beep.
When the gate reaches its OPEN position, the control board will sound a single beep, confirming the CLOSED limit has
been set.
© G h o s t C o n t r o l s 2 0 1 9
Retracted Position
Gate at the fully OPEN position (not
electronically adjustable)
Extended Position
Gate at the CLOSED position (elec-
tronically adjustable)
