F. Align the innermost hole of the estate and front mount brackets and insert (1) M8 x 65mm flat washer,
and (1) M8 nylon locknut through both holes and tighten to secure the bracket to the gate. YOUR FRONT
MOUNT AND ESTATE BRACKET SHOULD NOW BE ATTACHED AND SECURED TO THE GATE.

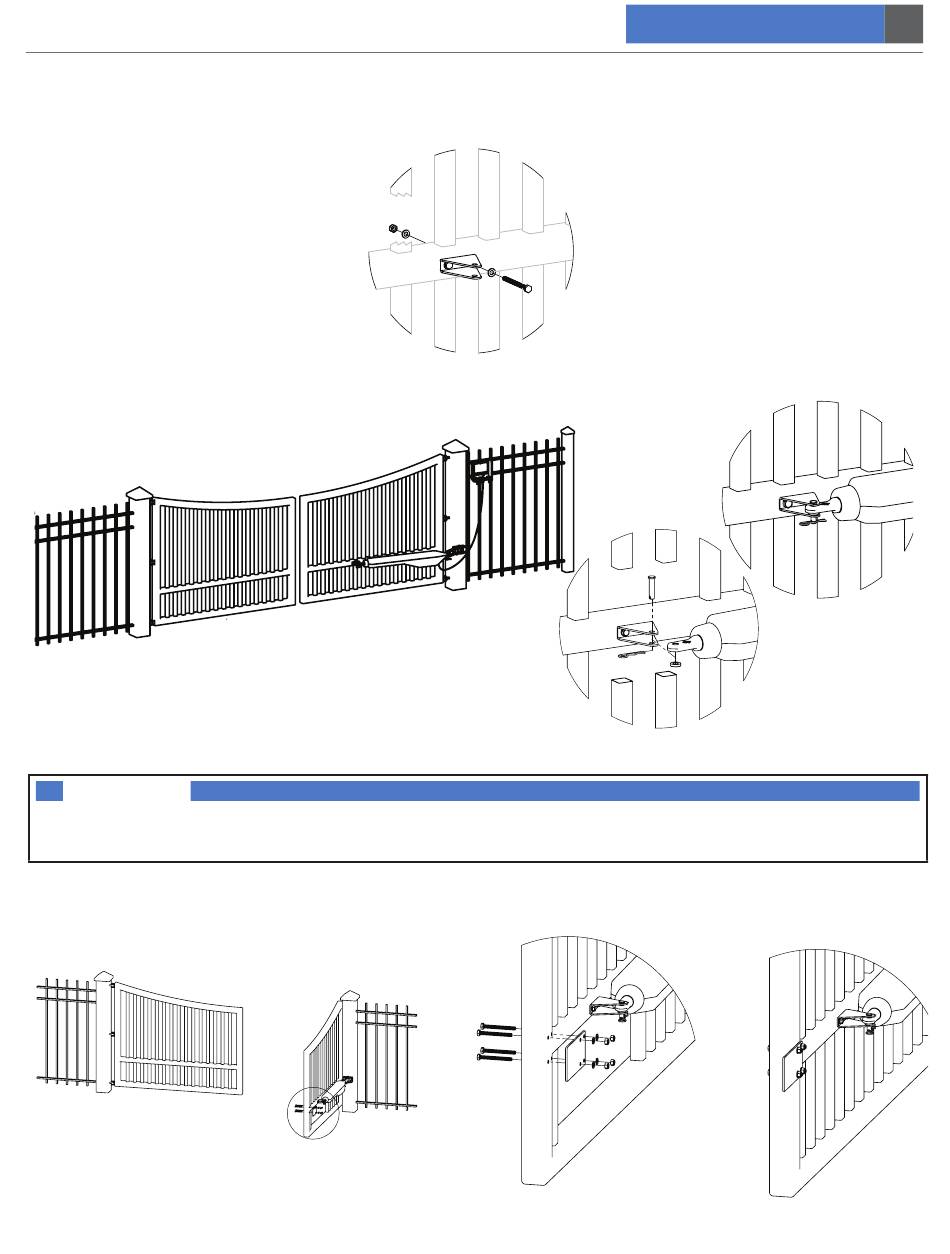

G. Align and attach arm of operator to the secured front mount bracket, as shown below. Make sure all parts
installed during installation are tightened down.
STEP 15. REPEAT STEPS 1 – 14 FOR INSTALLING SECOND GATE OPERATOR. (skip steps 7 & 8)
NOTE
Refer to image on page 14 for second operator. You will need to dig a trench and use pvc conduit to put second opera-
tor power cables thru to connect to the control box on the opposite side of the driveway.
STEP 16. Install the Positive Stop Plate.
Use the supplied Positive Stop Plate and U-bolts to install the Positive Stop Plate on the INSIDE OF THE FIRST
OPERATOR GATE as shown in the image below.
STEP 17. Proceed to Programming the Closed Limit Switch Step 18.
P U S H - T O - O P E N
57
