Application/use

4.1

Intended use

4.2

Improper use

5

Product description

5.1

Construction

7
6
1

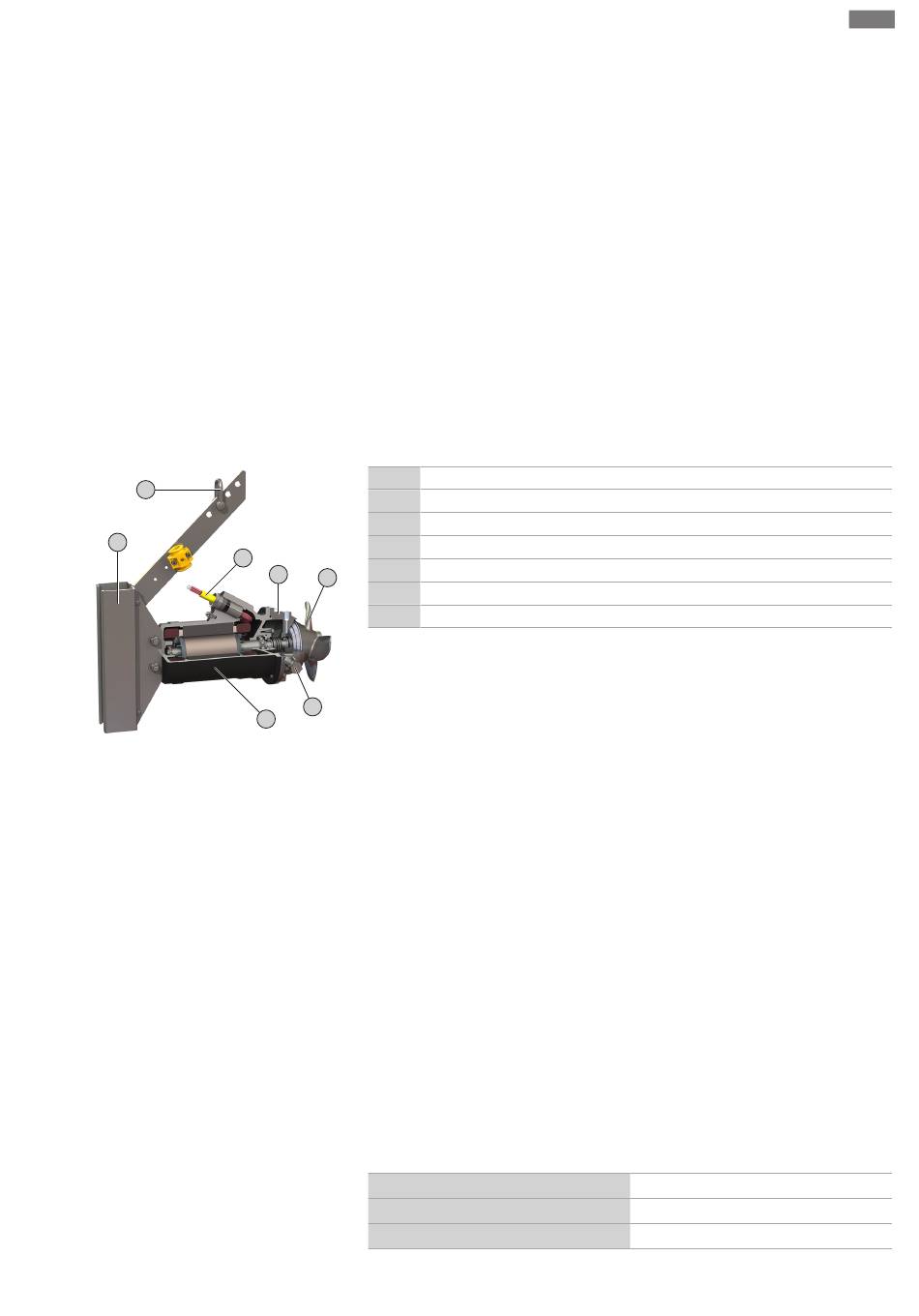

Fig. 2: Overview of the submersible mixer
5.1.1 Motor
Installation and operating instructions Wilo-Flumen OPTI-TR 20-1, 22, 28-1, 30-1, 40-1, Wilo-Flumen EXCEL-TRE 20, 30, 40
Application/use
For suspension and homogenisation in commercial areas of:
ƒ
Process sewage
ƒ
Sewage containing faeces
ƒ
Wastewater (with small amounts of sand and gravel)
Comply with the specific dimensioning based on the operator requirements. Any other
use deviating from this is regarded as non-compliant with the intended use.
The mixers must not be used in:
ƒ
Drinking water
ƒ
Non-Newtonian fluids
ƒ
Severely contaminated fluids containing hard components such as stone, wood,
metals, etc.
ƒ
Highly flammable and explosive fluids in pure form
The submersible mixer consists of the following main components:
1 Connection cable
2 Seal housing
3 Propeller
4 Pencil electrode (optional)
2
5 Motor
3
6 Frame for lowering device
7 Attachment point
4
5
Wilo-Flumen OPTI-TR ...
Surface-cooled submersible motor in three-phase current design with permanently
lubricated und large-size rolling bearings. The motor winding is equipped with temper-
ature monitoring. The motor heat is given off directly to the surrounding fluid via the
motor housing. The connection cable is designed for heavy mechanical loads, sealed
water pressure-tight against the fluid and is sealed longitudinally watertight. The con-
nection cable has bare cable ends and is 10 m (33 ft) long as standard.
Wilo-Flumen EXCEL-TRE ...
Surface-cooled submersible motor in three-phase current design with permanently
lubricated und large-size rolling bearings. The motor winding is equipped with temper-
ature monitoring. The motor heat is given off directly to the surrounding fluid via the
motor housing. The connection cable is designed for heavy mechanical loads, sealed
water pressure-tight against the fluid and is sealed longitudinally watertight. The con-
nection cable has bare cable ends and is 10 m (33 ft) long as standard.
The submersible motor meets the IE3 motor efficiency class (according to
IEC 60034-30).
Technical data
Operating mode, immersed
Operating mode, non-immersed
Fluid temperature
S1
-
3 ... 40 °C (37 ... 104 °F)
