Section 3

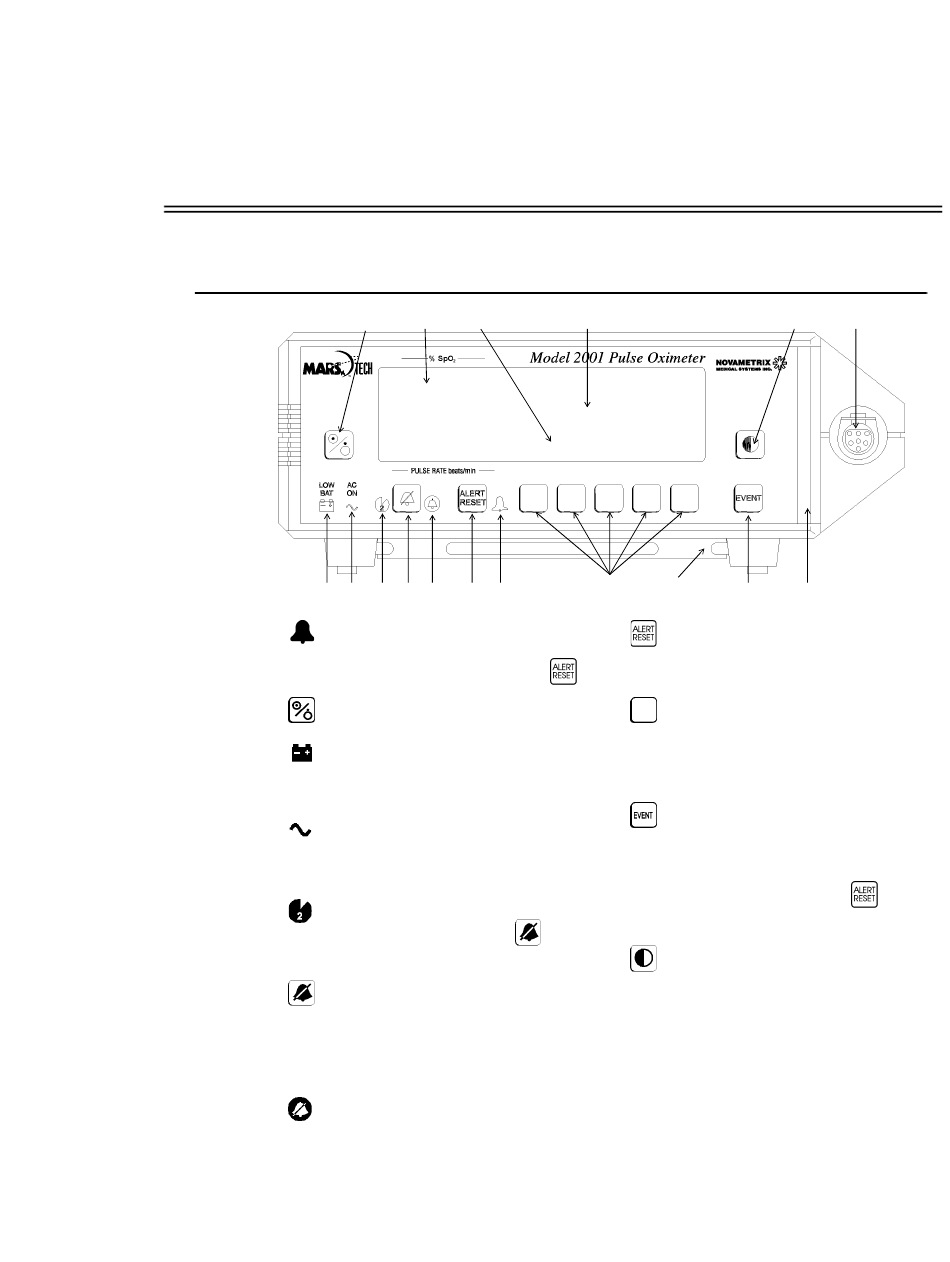

Front Panel

Rev. 01
1 17
2 3 4 5 6
1. Alert Indicator. Flashes (red) when
an alert/alarm occurs. Continues to
flash until condition corrected and
is pressed.
ALERT RESET
2. key. Press to turn on
POWER
monitor.
3. Low Battery Indicator. Illuminates
(red) if monitor powered from battery.
Flashes to warn of low battery voltage
condition.
4. AC Power Indicator. Illuminates
(green) if monitor is connected to AC
(Mains) and the rear panel power
switch is set to "|".
5. Two Minute Silence Indicator.
Illuminates (yellow) when the
key is pressed. Alarms silenced
AUDIO
for two minutes.
6. key. Press and release to
AUDIO
turn on/off the two minute silence
function. Press and hold to enable the
Audio Off feature (unless disabled via
Options Menu). Press and release to
disable Audio Off.
7. Audio Off Indicator. Flashes
(yellow) as a warning that the audible
alarms are disabled.
16 15
7 8 9
8.
disable active alert indicators. Alerts
will reactivate if alert condition still
exists.
9.
5
(left to right) to initiate action listed
above each key.
10. Kickstand and bedrail hanger.
11.
"event marker" into the trend.
12. Red Alert Bar. Flashes (red) when an
alert/alarm occurs. Continues to flash
until condition corrected and
ALERT RESET
13. SpO
14.
display for optimum viewing.
15. Waveform or trend data displayed
here.
16. Menu Display. Softkey functions and
menu messages displayed here.
17. Parameter Numerical Displays.
Numerical displays and alert limit
settings for measured parameters
displayed here. Also display units and
special display options noted here.

Illustrations

14
10 11 12
key. Press to
ALERT RESET
. Press software keys 1-
SOFTKEYS
key. Press to place an
EVENT
is pressed.
Sensor Input Connector.
2
Contrast key. Press to adjust
Model 2001 Service Manual
