Section 3
Illustrations

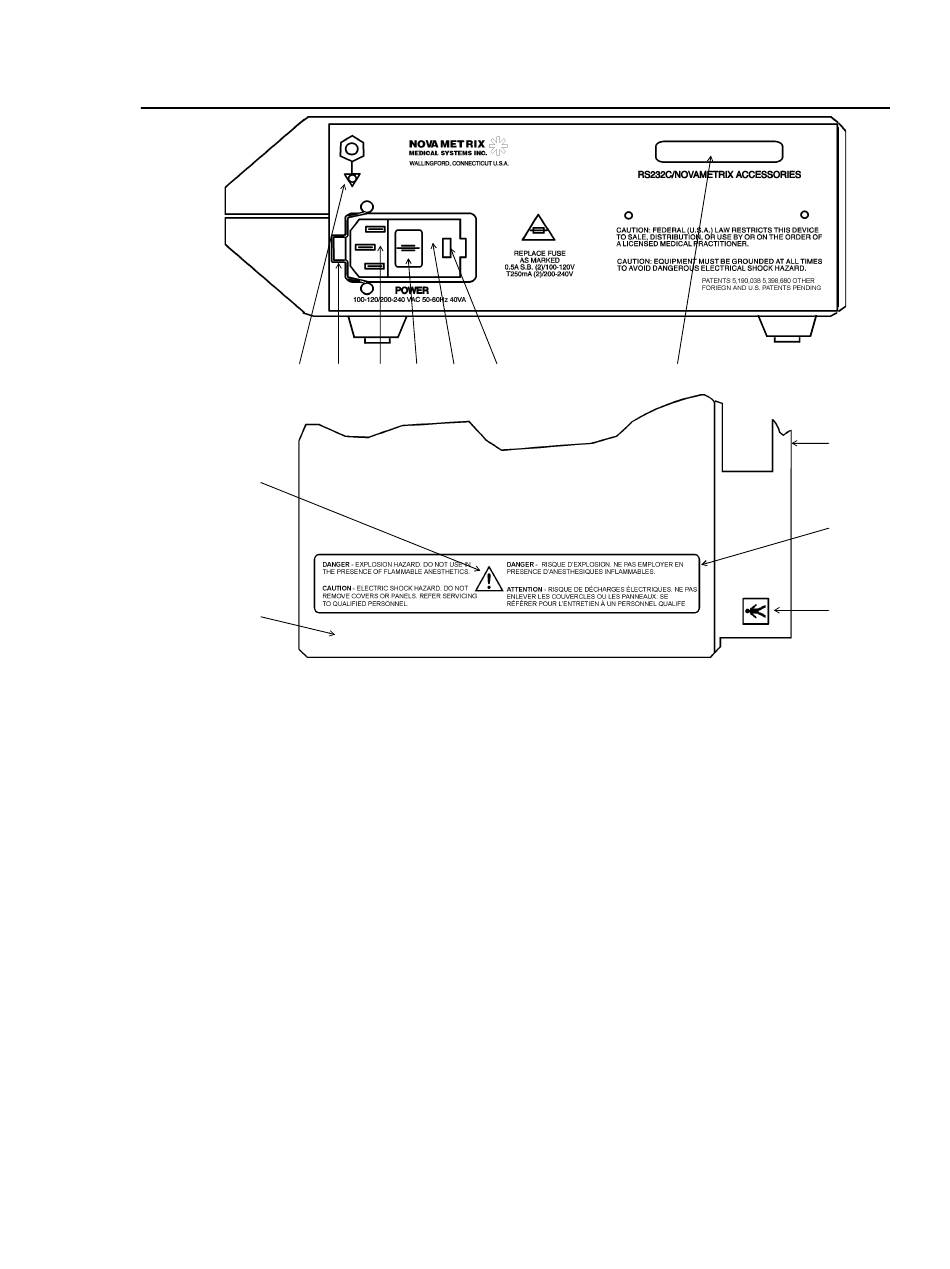

Rear and Top Panel

1. Ground symbol: Equipotentiality.
2. Line Cord Clip: This clip can be set
3. Line Cord Connector: The AC (Mains)
4. AC Mains Power Switch: With switch in
5. Fuse Compartment: The AC (Mains)
6. AC Mains Voltage: The currently
8
Model 2001 Service Manual
1 2 3
8
9
Connection to monitor's chassis.
around the line cord strain relief so that
the cord cannot be pulled out of the
connector.
line cord attaches to the monitor here.
"O" position, AC Mains voltage does not
enter monitor. With switch in "|" position,
AC Mains voltage allowed into monitor
to power unit and/or charge internal
battery.
line fuse(s) are inside this compartment.
Pry open with small screwdriver.
selected AC Mains input voltage is
identified here.
4 5 6
7. Serial Output Connector: Serial (RS232)
data output here for use with RS232
interfaces. A female 25-pin "D"
connector serves as the interface
connector.
8. Attention: Consult manual for detailed
information.
9. Top Cover
10. Carrying Handle: Monitor carrying
handle molded into case.
11. Warning Label: Explosion and electrical
shock warnings.
12. Patient Isolation Label: The Model 2001
is Type BF equipment.
Rear and Top Panel
7
10
11
12
Rev. 01
