NETWORK CONNECTION*

T h e r e a r e t w o w a y t o p o w e r a M E G Ap i x ® 1 0 8 0 p ™
c a m e r a .
U s e a P o E - e n a b l e d s w i t c h t o c o n n e c t d a t a a n d p o w e r t h r o u g h a s i n g l e
c a b l e a n d b e g i n v i e w i n g a n d r e c o r d i n g i m a g e s i n s t a n t l y. A n o n - P o E s w i t c h
w i l l r e q u i r e a n a d a p t o r f o r p o w e r t r a n s m i s s i o n .
1. Using a PoE-Enabled Switch
The MEGApix® 1080p™ Camera is PoE-Compliant, allowing transmission of power and data
via a single Ethernet cable. PoE eliminates the need for the different cables used to power,

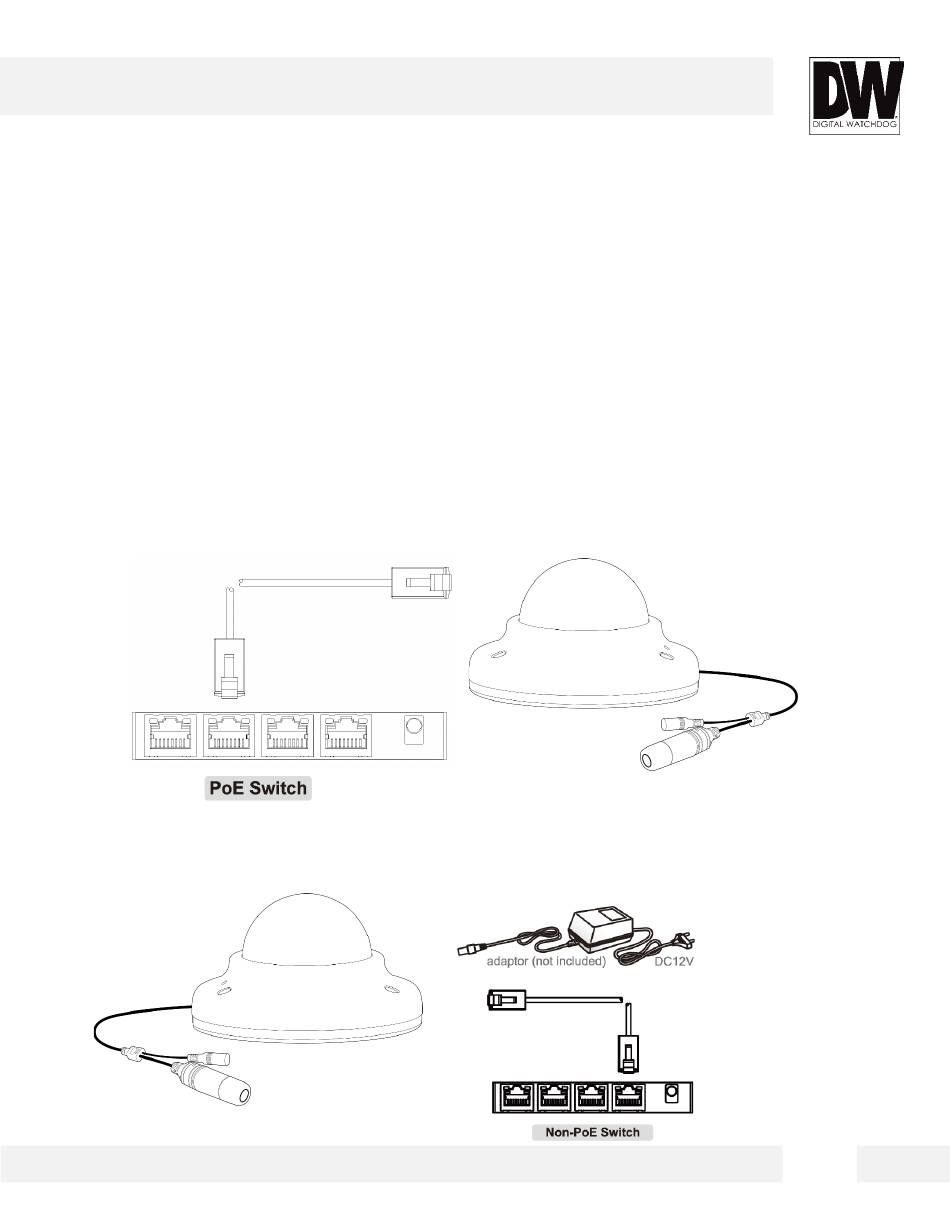

record, or control the camera. Follow the illustration below to connect the camera to a PoE-
enabled switch using an Ethernet cable.
2. Using 12VDC
If a PoE injector is not available, use a power adaptor for power transmission and a non-PoE
switch for data transmission. Follow the illustrations below to connect the camera without a PoE
Injector.
