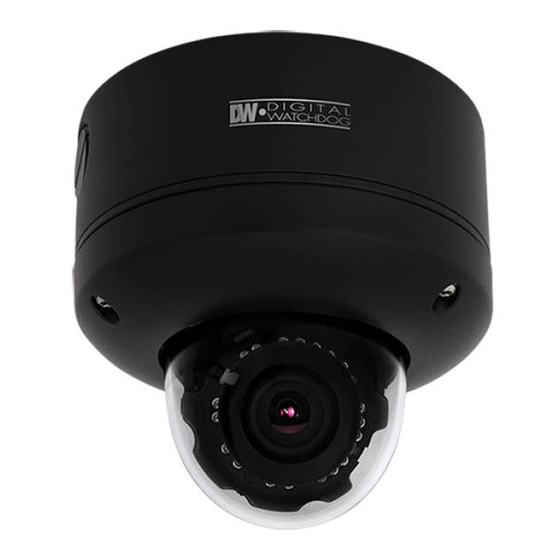

Summary of Contents for Digital Watchdog DWC-MV421D

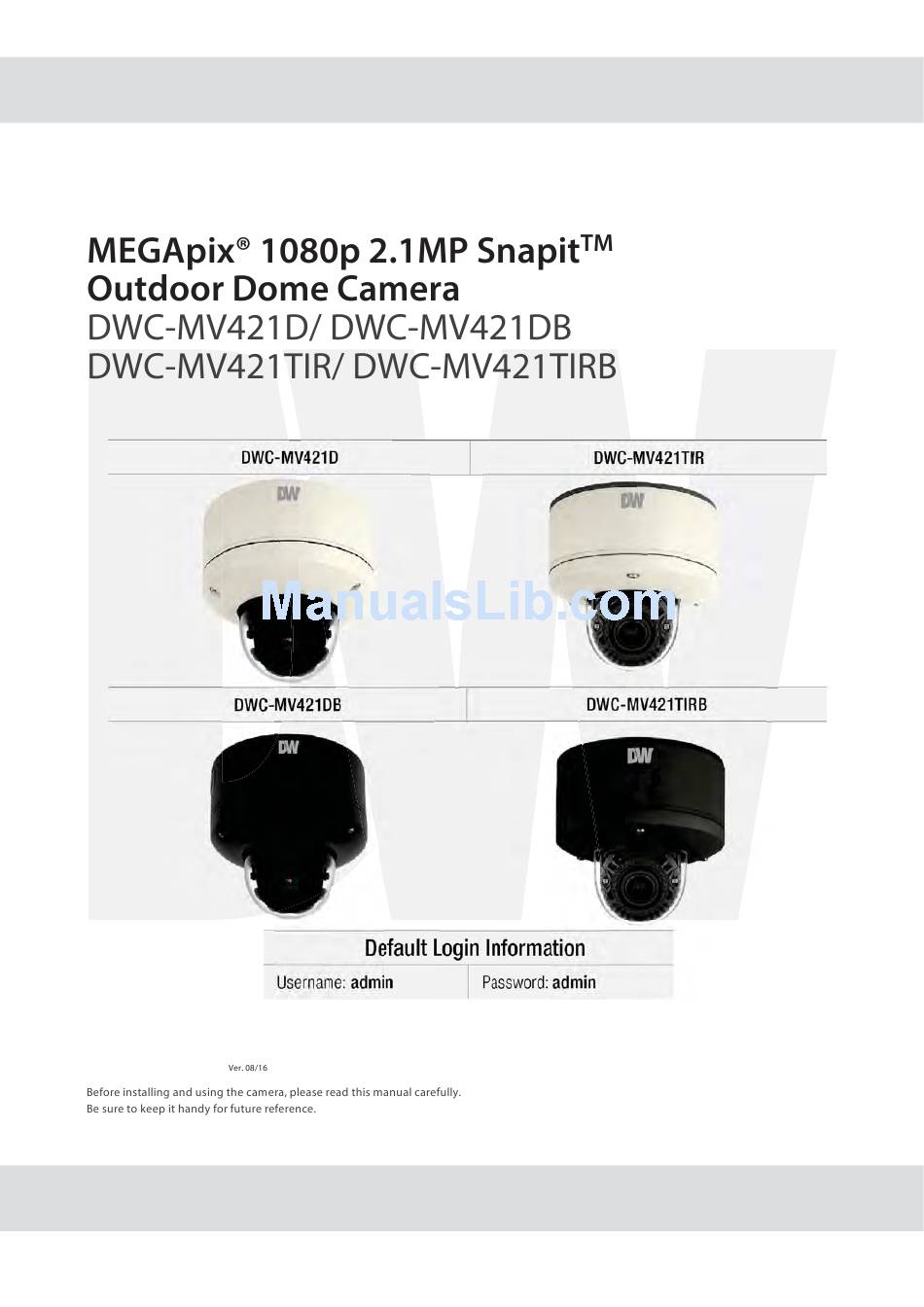

- Page 1 User’s Manual...
- Page 5 Non-IR Camera IR Camera Cables Screw & Plastic Anchor-4pcs Hexagonal Wrench Torx Screw Driver DC Plug Cable Quick Manual Template Sheet Test Monitor Cable...
- Page 6 SD Card Slot Reset Button Tilt Stopper Screw Test Video Slot Dome Cover Cables Main Body ¾” Pipe Mounting Hole Mount Braket Dome Cover Covers the inner cover, lens, and main body to protect them. It help reduce the inner heat of camera. Main Body Tilt Stopper Screw Includes a lens, a connecting slot, a PCB board, screws and...
- Page 7 UART +/- is for debugging purposes only.
- Page 8 Reset Button...
- Page 9 Disassemble the camera. See the section ‘Installation - Disassemble the camera’ for details. Using the mounting template sheet or the camera , mark and drill the necessary holes in the wall or ceiling. Pass the wires through the and make all necessary connections.
- Page 10 To achieve desired view direction and orientation, rotate 3-axis gimbal. To fix the setting, tighten the tilt stopper screw.
- Page 11 Alarm Cable Sensor/Alarm Input Relay/Alarm Output Network Connection Mic. Amplifier Power Audio Output Audio Input Power Connection Audio Input Connect the ‘Audio In’ plug of the camera to Please, check the voltage and current capacity of rated power carefully. microphone directly or ‘Line Out’ port of amplifier connected with microphone.
- Page 13 Micro Recommended SD Card Specification (Not Included)
- Page 15 If you use a static IP address assigned by your ISP If you have a dynamic address provided by your ISP admin.
- Page 21 If you use Case B, C If you use Case A, D...
- Page 25 Does not use the Smart Bitrate Control.
- Page 26 Extension Option B-Frame On(BP) / B-Frame On(BBP) Using B-Frames yields better quality for the same data rate, or lower data rate for the same quality. SVC-T On Scalable video coding is a type of video encoding algorithm that can be applied to streaming be transmitted over low bandwidth networks effectively.
- Page 29 Select the Audio Codec. Volume Select the Audio Volume from 0 to 10. Sample Rate Select the Audio Sample Rate.
- Page 31 Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
- Page 32 Automatic exposure(AE) automatically sets the aperture or Slow shutter Level lets you adjust the amount of light striking shutter speed, based on the external lighting conditions the sensor, determin when the video sensor sends out its for the batch of data for processing. The smaller number AE metering mode refers to the way in which Click 'Cancel' to return to the previous setting.
- Page 33 set to A rate at which ensitivity will be reduced in the dark light condition but better color reproduction performance obtained. ensitivity will be enhanced in the dark light condition. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
- Page 34 Select the WDR level depending on the difference in brightness between the darkest and lightest part of an image. Click ‘Save’ to Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
- Page 35 The R/G/B gain can be set only when the White Balance Mode is set to Manual. Select White Balance depending on the lighting conditions. Click ‘Save’ to Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
- Page 36 Click ‘Save’ to Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
- Page 37 Click ‘Save’ to Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
- Page 39 Define the Secondary DNS server IP address. Define the IP address. The address is consisted of four numbers separated by dots and the range of each number is from 0 to 255. between 1025 to 60000. Define the Subnet Mask. Format is same as the IP address. The RTSP port between 1025 to 60000.
- Page 40 It displays the unique id or address. Click ‘Apply’...
- Page 41 Allows access without ONVIF authentication. Allows access with WS-User Token of ONVIF authentication. Allows access with WS- User Token and Digest of ONVIF authentication. function can be enable or disable.
- Page 42 UPNP function can be enable or disable. Define the friendly name.
- Page 43 To use public DDNS service, select a site DynDNS www.dyndns.com No-IP www.no-ip.com Click ‘Apply’...
- Page 44 Password to access the FTP Server. Click ‘Apply’ FTP Server IP Address. Define a path in FTP server to store video . For the path name, English Alphabets, numbers and special characters ( / ~ !@ $ ^ ( ) _ - { } [ ] ; , ) can be used. the FTP Server Port User ID to access he FTP Server.
- Page 45 the Password to access SMTP Server. e-mail address Select ecurity mode rom Plain or SSL / TLS. the e-mail address of E-Mail Receiver. the SMTP Server Address. the Port used Plain or SSL / TLS security mode. the title camera The title of the Email is limited to 40 characters including spaces.
- Page 46 Click ‘Add’ to add custom action rules. Click ‘Modify' to modify selected item from the action rules list. Click 'Delete' to delete selected item from the action rules list.
- Page 47 name Select Click ‘Save’ to...
- Page 48 Image Transfer due to event is configured by setting Image transfer rate and Pre / Post alarm duration. Descriptions Define Number of image transferred per second. Define duration of image transfer before an event. Define duration of image transfer after an event. Click ‘Apply’...
- Page 49 Relay Output Select the Relay output. The number of relay outputs depends on the camera model. Mode Select the monostable / bistable for relay mode. Idle State Select whether the contact is normally opened or is closed. Duration Relay out is operated during the setting time. If bistable mode is selected, this funtion is activation.
- Page 50 custom Event Rule Event Rules list. Click ‘Add’ to add custom event rules. Click ‘Modify' to modify selected item from the event rules list. Click 'Delete' to delete selected item from the event rules list.
- Page 51 name Select event Click ‘Save’...
- Page 52 the sensitivity of motion detection hows Motion event status. . If it will detect Event Alert Icon( ) appears if ‘Motion Detection’ is activated. very small motion Set the motion detected area. Click ‘Save’ You can set up to four areas.
- Page 53 Input Device Setup Select input device type from OFF / N.O. / N.C. Operation Ignore this Input sensor. The contact is normally open and closed when activated. The contact is normally closed and open when activated.
- Page 54 Select the channel you want to record. Click ‘Save’ Display information recording settings. Click ‘Modify’ to modify selected item in the recording list.
- Page 55 Select the recording file type Select the storage type. mode is duration of recording before an event duration of even Click ‘Save’...
- Page 56 date / time, event, sort or storage format Click the 'Refresh' button to refresh the records list. Click 'Filter' to view the filtered recorded video. Click 'Play' to view the selected item in list of recorded video. Click 'Remove' to delete the selected item recorded video Click 'Download' to download the selected item.
- Page 57 Play the recorded video. Display information the recorded video Click 'Replay' to view the recorded video again. Click 'Back' to return to the previous menu.
- Page 59 Total capacity of SD card and emove the SD card from the device. displayed. Delete the all contents stored in SD card. Select the period for Auto delet The image data stored before period will be Click ‘Apply’ deleted automatically. SD card, new will start to overwrite e oldest data SD card,...
- Page 60 IP Address Filter IP filter function can be enable or disable. IP Filter Type Select the recording IP filter type. Click ‘Apply’ to make above setting effective. Filter IP Address Display the filterd IP address. IP Address Define the IP address you want to apply the IP filter. Click ‘Add’...
- Page 62 Do not turn off the power during the It shows the current Firmware Version. Firmware update. he system can unstable. the system will reboot automatically. Select the Firmwar file your computer by clicking [Select file] button. start update. Progress...
- Page 63 Password to access to the FTP Server. Server Define a path in FTP server to store video. For the path name, the FTP Server Port. English Alphabets, numbers and special characters ( / ~ ! @ $ ^ ( ) _ - { } [ ] ; , ) can be used. Click ‘Save’...
- Page 64 camera time server Date will be updated automatically every hour. Prior to setting below ‘New Camera Date & Time’, set correct Click ‘Apply’ to Shows the current date and time setting in the Camera. Set the date time using th currently connected Set the date time...
- Page 65 Set the Start time and end time the DST. Click ‘Apply’ to...
- Page 66 List all user accounts for Modify the information of user account. For admin account, only Password can be modified. Register a new user Delete selected user account. Admin account cannot be deleted. Enter a new user ID except Admin. Enter the user Password. Enter the user Password again for verification.
- Page 67 Select a date, sort or type of log to filter the log. Click the 'Refresh' button to Click 'Filter' to view the filtered log.
- Page 68 Reset to the factory default eturn setup to the factory default Reset all Settings to the factory defaults. xcept etwork related settings. Reset only Click ‘Apply’ to...
- Page 72 Internet Explorer Chrome...
- Page 73 Unit: ø...
