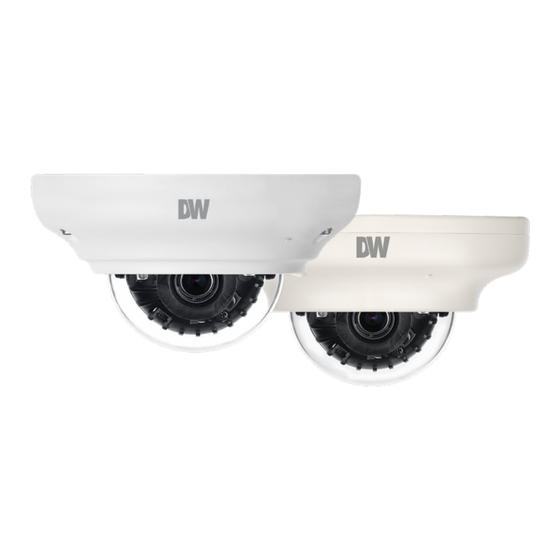

Digital Watchdog MEGApix IVA+ DWC-MPV75Wi28TW Quick Start Manual

Digital Watchdog MEGApix IVA+ DWC-MPV75Wi28TW Quick Start Manual

Hide thumbs Also See for MEGApix IVA+ DWC-MPV75Wi28TW:

Advertisement

Quick Links

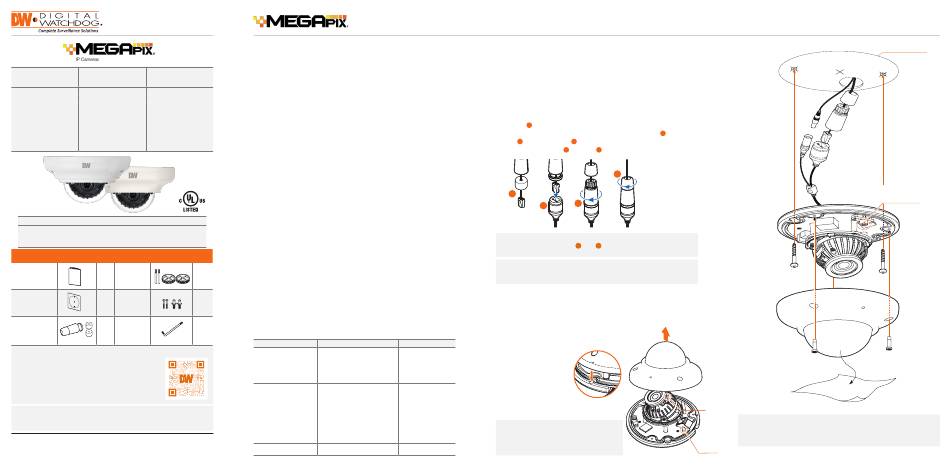

Quick Start Guide
MEGApix® IVA+™ models
5MP models
2.1MP/1080p models
DWC-MPV75Wi28TW
DWC-MV75Wi28TW
DWC-MV72Wi28ATW
DWC-MPV75Wi4TW
DWC-MV75Wi4TW
DWC-MV72Wi4ATW
DWC-MPV75Wi6TW
DWC-MV75Wi6TW
DWC-MV72Wi28TW
DWC-MPV72Wi28ATW
DWC-MV72Wi4TW
DWC-MPV72Wi4ATW
DWC-MV72Wi6TW
DWC-MPV72Wi28TW
DWC-MV72Di4TW
DWC-MPV72Wi4TW
DWC-MV72Di28TW
DWC-MPV72Wi6TW
Default Login Information: admin | admin
When logging into the camera for the first time, you will be prompted
to set up a new password. You can set the new password using the
DW® IP Finder™ software or directly from the camera's browser menu.
WHAT'S IN THE BOX
Quick Setup
Bolt and
and Installation
1 set
Nuts 2pcs
Guide
Screws
Mounting
and Plastic
1
Templates
Anchors -
2pcs
Waterproof Cap
and Rubber Rings
Star Wrench
(Black: ø0.15"
1 set
(T-20)
(ø4mm), White:
ø0.19" (ø5mm))
NOTE:
Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
digital-watchdog.com
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. CAUTION: These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
4. CAUTION: There is a risk of explosion if the battery is replaced
incorrectly, and it should be replaced only with the same battery.
ATTENTION: Il y a risque d'explosion si la batterie est remplacée par
une batterie de type incorrect. Mettre au rebut les batteries usages
conformément aux instructions.
5. Used batteries must be disposed of according to local regulations or
the battery manufacturer's instructions. Disposing of batteries in a fire
or in a hot oven, or mechanically crushing and cutting them may cause
an explosion.
6. Leaving the battery in very high temperature or low air pressure
environments may result in an explosion or leak of flammable liquids
or gases.
7. This product is intended to be supplied by a UL Listed Power
Supply Unit marked "Class 2" or "LPS" or "PS2" and rated 12
Vdc, 0.31A (DWC-MPV72 and DWC-MV72 series) and 0.5A
(DWC-MPV75 and DWC-MV75 series) min.
8. The wired LAN hub providing power over the Ethernet (PoE) in
accordance with IEEE 802-3af shall be a UL Listed device with
the output evaluated as a Limited Power Source as defined in
UL60950-1 or PS2 as defined in UL62368-1.
9. Unit is intended for installation in a Network Environment 0 as
defined in IEC TR 62102. As such, associated Ethernet wiring shall
be limited to inside the building.
10. For the installation process, remove the dome cover from the camera
module by loosening the three (3) screws on the dome. Use the wrench
provided with the camera.
11. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
1 set
STEP 2 – POWERING THE CAMERA
Pass the wires through and make all the necessary connections.
1 set
1.
If you are using a PoE switch, connect the camera using an Ethernet
cable for both data and power.
2. If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter
1
to power the camera.
Models
Power requirements
DWC-MPV75Wi28TW
DWC-MPV75Wi4TW
DWC-MPV75Wi6TW
DC 12V, PoE IEEE 802.3af
DWC-MV75Wi28TW
Class3. (Adapter not included)
DWC-MV75Wi4TW
DWC-MV75Wi6TW
DWC-MPV72Wi28ATW
DWC-MPV72Wi4ATW
DWC-MPV72Wi28TW
DWC-MPV72Wi4TW
DWC-MPV72Wi6TW
DC 12V, PoE IEEE 802.3af
DWC-MV72Wi28TW
Class2. (Adapter not included)
DWC-MV72Wi4TW
DWC-MV72Wi6TW
DWC-MV72Wi28ATW
DWC-MV72Wi4ATW
DWC-MV72Di4TW
DC 12V, PoE IEEE 802.3af
DWC-MV72Di28TW
Class2. (Adapter not included)
STEP 3 – INSTALLING THE CAMERA
1. Attach the main body to the mounting bracket or mounting surface by
tightening the lock screw.
2. The waterproof cap set comes with two rubber rings with different
diameters. The black rubber ring has an internal diameter of ø0.15"
(ø4mm). The white rubber ring has an internal diameter of ø0.19"
(ø5mm). When using the waterproof cap, use the rubber ring best
suited for your network cable's diameter.
a.
Pass the LAN cable through the waterproof cap, gasket and
the
rubber ring.
a
b. Connect the LAN cable to the camera's network port
c.
c
will be affixed to
b
with a ¼ turn counter-clockwise.
d. Thread and twist
tightly to
d
a
c
b
NOTE:
To ensure moisture seal, make sure the o-ring is in
place between
a
of an outdoor rated sealer is recommended.
NOTE:
Cables with ø4.5mm to ø5.5mm thickness should use
the black rubber ring. Cables over ø5.5mm in thickness
should use the white rubber ring.
3. The camera is equipped with a manual IR activation button. You
can choose to disable the camera's IR LEDs when the installation
environment requires so.
4. Adjust the camera's lens position by rotating the camera on its
three-axis gimbal.
5. When assembling the dome back on the camera,
Power consumption
align the screw holes in the dome and the
camera's base.
DC12V: max 6W
PoE: max 7.2W
6. When the installation is complete, remove
DC12V: max 3.7W
the dome's protective film.
PoE: max 5.5W
Resetting the camera: To reset the
camera's settings, including the network
settings, use the tip of a paper clip or a
pencil. Press the reset button for five
DC12V: max 3.7W
(5) seconds.
PoE: max 5.4W
.
b
c
.
d
and
. In extreme environments use
b
LED
on/off
NOTE:
Reset button
Quick Start Guide
Mounting Template
Microphone built-in
(DWC-MV72Wi28ATW,
DWC-MV72Wi4ATW models)
5
Protective Film
Camera models with a microphone built-in (DWC-M(P)
V72Wi28ATW and DWC-M(P)V72Wi4ATW) should be
installed approximately 3~6ft (1~2 meters) from a person
speaking in a normal tone (50~60 dB).
