Digital Watchdog DWC-MV72Wi4 User Manual

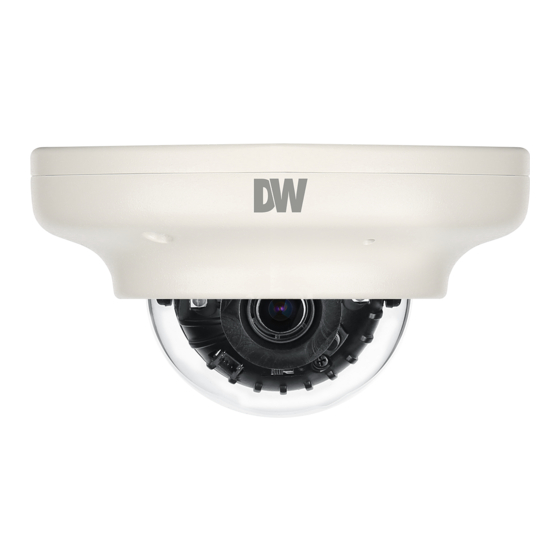

Megapix 2.1mp indoor/outdoor vandal dome ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

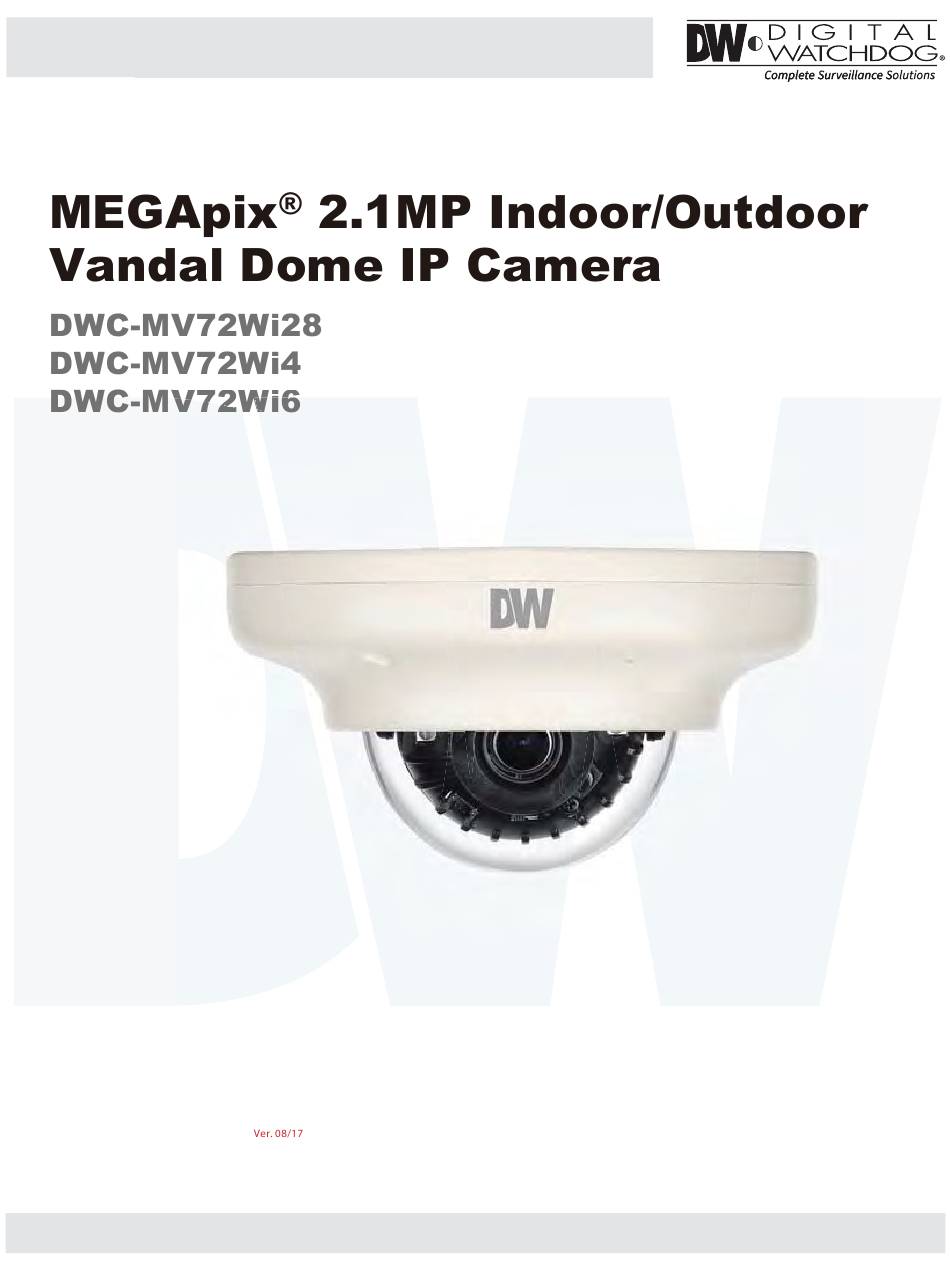

User's M
's a
Manu
nua a l l
Before installing and using the camera, please read this manual carefully.
n
stalling and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
to keep it handy
for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Digital Watchdog DWC-MV72Wi4

Summary of Contents for Digital Watchdog DWC-MV72Wi4

  • Page 1 User’s M ’s a Manu nua a l l Before installing and using the camera, please read this manual carefully. stalling and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. to keep it handy for future reference.
  • Page 2 Index INTRODUCTION Important Safety Information Part Name INSTALLTION Disassemble the Camera Installation using Mount Bolt & Nut Cabling NETWORK SETUP IP Installer Quick Start of Network Connection DDNS Registration Guide to Network Environment Setup Case (A~D) Port Forwarding Starting IP Camera WEB VIEWER SCREEN Basic Screen SETUP...

  • Page 3: Safety Information

    Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...

  • Page 4: Important Safety Instructions

    Important Safety Instructions Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions.
  • Page 5 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
  • Page 7 Introduction - Part Name Dome Cover Lens IR Switch IR LED Gimbal SD Card Slot Reset Button Bottom Case DC Power Cable RJ-45 Cable...
  • Page 8 ations - Dimension Unit: 28.2 32.5...

  • Page 9: Product And Accessories

    Introduction - Product & Accessories Camera Cables Mount Bolt & Nut Torx Wrench Waterproof cap & Gasket Template Sheet Quick Manual & Screw & for Installing by Bolt & Nut Download Guide Plastic Anchor-2pcs...

  • Page 10: Disassemble The Camera

    Installation - Disassemble the camera Before installing your camera, you have to read the following cautions. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise 3. When installing your camera, don’t allow any person to approach the installation site. If you have any valuable things under the place, move them away.

  • Page 11: Installation

    Installation - Installation Template Sheet Disassemble the camera. See the section ‘Installation - Disassemble the camera’ for details. Using the template sheet, make the cabling hole on the wall/ceiling. Connect the network cable and power cable respectively. See the section 'Installation - Cabling' for details.
  • Page 12 Installation - Installation Using Mount Bolt & Nut Template Sheet Disassemble the camera. See the section ‘Installation - Disassemble the camera’ for details. Using the template sheet, make the cabling holes on the ceiling panel. Insert the 2 mount bolts into bottom case of camera.
  • Page 13 Installation - Installation Using Mount Bolt & Nut Insert the mount bolts into template holes after connecting the cable. Fix the bottom case by tightening mount nuts to mount bolts on the ceiling panel. To achieve desired view direction and orientation, stopper screw.
  • Page 14 Installation - Cabling Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2.

  • Page 15: Inserting/Removing A Sd Memory Card

    Installation - Inserting/Removing a SD Memory Card The memory card is an external data storage device that has to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC) - Manufacturer: Transcend, Kingston, Toshiba, SanDisk - Capacity: 4GB~128GB - Class: UHS-I U3 Class 10...
  • Page 16 Network Setup - DW IP Finder™ To view the camera's web client, click on 'View Camera Website'. A ‘Port Forwarding’ has to be set in your network’s router for external access to the camera. To save the changes made to the camera's settings, input ID and PW of the camera for authentication.

  • Page 17: Quick Start Of Network Connection

    Network Setup - Quick Start of Network Connection Please follow the steps below to complete Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP 1) Open Internet Explorer.

  • Page 18: Ddns Registration

    Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. t, you have to check if you are using dynamic addressing.

  • Page 19: Guide To Network Environment

    Network Setup - Guide to Network Environment Please configure the IP Camera at the 5. The following descriptions are several basic network scenarios. Determine which scenario describes your network. installation site. You must determine your If your network does not match one of the scenarios below network scenario in order to configure the IP and you are unsure how to setup your IP Camera, contact Camera with the proper TCP/IP settings.
  • Page 20 Network Setup - Setup Case A, B Case A: as follows : Dynamic IP + Personal Router [Most SOHO] 1. Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Camera 2.
  • Page 21 Network Setup - Setup Case C, D Case C: Case D: Static(Fixed) IP [Dedicated line directly Dynamic IP + DSL/Cable Modem [Connected to the IP Camera] directly to the IP Camera] Camera Camera Phone Line or CATV Cable/xDSL Modem (ISP Provided) Public Line Gateway or Router at ISP...

  • Page 22: Port Forwarding

    Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’(Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP IP Camera TCP/IP Settings IP Address Subnet Mask...
  • Page 23 Network Setup - Starting IP Camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.

  • Page 24: Basic Screen

    Web Viewer Screen - Basic Screen Below “Menu”is supported in accordance with models. Web viewer is optimized with explorer10 or above version and Firefox. PTZ Control If VLC is not installed or VLC plugin is not supported (Chrome), This camera model does not supports the zoom and focus. Live buffering and Channel select menu on 3, 4 will be changed to Live Viewer menu, and then if HTML5(MJPEG) is selected on Preset...

  • Page 25: Video Configuration

    Setup - Video & Audio Setup Video Configuration Detail Page When you selects an item from the menu, you can set the details for the selected item. Setup Constitution Video&Audio [ VIDEO, OSD, ROI, PRIVACY MASK ] Camera [ IMAGE ADJUSTMENT, EXPOSURE, DAY&NIGHT, BACKLIGHT, WHITE BALANCE, IMAGE, VIDEO ] Network [ STATUS, NETWORK SETTING, AUTO IP, ONVIF, UPNP,...
  • Page 26 Setup - Video & Audio Setup Video Configuration Resolution Live Video Channel Setup Select the video resolution. combination of codec and resolution. Available resolution can be depends on the codec setup between The camera performance has to be considered when setting the channels.
  • Page 27 Setup - Video & Audio Setup Video Configuration Smart Bitrate Control GOP(Group of Pictures) Size Set up the number of frames (P-frame) which contain only changed information based on basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size You can not use the Smart Bitrate Control function.
  • Page 28 Setup - Video & Audio Setup Video Configuration Bitrate Mode Extension Option Select the bit rate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). You can not use the Extension Option. To guarantee the designated constant bit rate, the quality SVC-T On The H.264 SVC (Scalable Video Coding) is a video compre of video are controlled in this mode.

  • Page 29: Osd Configuration

    Setup - Video & Audio Setup OSD Configuration Date / Time Display the current time. User Text Output the TEXT entered by the user. Support a maximum of 30 characters. Click ‘Apply’ to make above setting effective.
  • Page 30 Setup - Video & Audio Setup Region of Interest Configuration Region of interest function gives much more efficiency picture quality for indicated area to improve picture qualities of movement scene at the same bandwidth. Stream Select the Stream. Currently it supports only Channel1. Activation The Region of interest can be enable or disable.

  • Page 31: Privacy Mask Configuration

    Setup - Video & Audio Setup Privacy Mask Configuration Use this function to mask areas that you want to hide on screen to protect privacy. Activation The Privacy mask function can be enable or disable. Area Select the Area1 ~ Area4 and Set the privacy area. Click ‘Save’...
  • Page 32 Setup - Camera Setup Camera Image Adjustment Sharpness Saturation Using this control, sharpness of image can be adjusted Using this control, Saturation of image can be adjusted to meet your preference. to meet your preference. Brightness Using this control, brightness of image can be adjusted Using this control, Hue of image can be adjusted to meet your preference.
  • Page 33 Setup - Camera Setup Camera Exposure Settings Auto Exposure Slow Shutter Automatic exposure(AE) automatically sets the aperture or Slow shutter Level lets you adjust the amount of light striking shutter speed, based on the external lighting conditions the sensor, and essentially determines when the video sensor for the photo.
  • Page 34 Setup - Camera Setup Camera Day & Night Settings Day & Night Transition Time Auto: In this mode, the IR cut filter is removed automatically If it is set to Auto, to determine the rate at which depending on the light condition around. Day / Night is converted.
  • Page 35 Setup - Camera Setup Camera Backlight Settings This is a feature used for problematic light conditions where the contrast from light to dark areas is very high. WDR (Wide Dynamic Range) The WDR function can be enable or disable. WDR Level Select the WDR level depending on the difference in brightness between the darkest and lightest part of an image.

  • Page 36: Camera White Balance

    Setup - Camera Setup Camera White Balance Activation RGB Gain White Balance can be enable or disable. The R/G/B gain can be set only when the White Balance Mode is set to Manual. White Balance Mode Select White Balance depending on the lighting conditions. Click ‘Save’...
  • Page 37 Setup - Camera Setup Camera Image Enhancement 3D Noise Reduction 3DNR function enables to suppress noise and retain good video quality in low light conditions. Mirror Reverse the video from side to side. Flip Reverse the video from up to down. Click ‘Save’...

  • Page 38: Video Enhancement

    Setup - Camera Setup Video Enhancement Flicker This function Enable to enhance the flicker situation. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.

  • Page 39: Network Status

    Setup - Network Setup Network Status This menu will show you all the information of Network setting in the camera. However, you cannot change those here.

  • Page 40: Network Settings

    Setup - Network Setup Network Settings Preferred DNS Server Network Type Define network IP address type from the Static Mode for the Define the DNS server IP address. Format is same as the fixed IP or the Dynamic Mode by the dynamic IP address. IP address.
  • Page 41 Setup - Network Setup Auto IP Settings General Setting Auto IP Settings function can be enable or disable. Auto IP Settings Information It displays the unique id or Auto IP address. Click ‘Apply’ to make above setting effective.

  • Page 42: Onvif Settings

    Setup - Network Setup ONVIF Settings Authentication None: Allows to access without ONVIF authentication. WS - Usertoken: Allows to access with WS-User Token of ONVIF authentication. WS - Usertoken + Digest: Allows to access with WS-User Token and Digest of ONVIF authentication. Discovery Mode The discorvery function can be enable or disable.

  • Page 43: Upnp Settings

    Setup - Network Setup UPNP Settings General Setting UPNP function can be enable or disable.  Friendly Name Define the friendly name. Click ‘Apply’ to make above setting effective.

  • Page 44: Ddns Settings

    Setup - Network Setup DDNS Settings DDNS Disable If it is selected, DDNS service does not work. Public DDNS To use public DDNS service, select a site address listed in the list. After filling out the Host Name of the site, the setup is completed by entering User Name and Password registered in that DDNS site.
  • Page 45 Setup - Network Setup FTP Settings To transfer / save the image to the relevant sites through FTP, Password then FTP needs to be setup. Define Password to access to the FTP Server. Fill out the correct Password registered in the FTP Server. General Setting FTP function can be enable or disable. ...

  • Page 46: Smtp Settings

    Setup - Network Setup SMTP Settings To send / save the image to the relevant sites by Email, SMTP Password needs to be setup. Define the Password to access to SMTP Server. Fill out the correct Password registered in the SMTP Server. General Setting SMTP function can be enable or disable.

  • Page 47: Snmp Settings

    Setup - Network Setup SNMP Settings SNMPv1/SNMPv2 Authentication Algorithm Select the SNMPv1/SNMPv2 option and type the names of Select MD5 or SHA as the authentication method. Read community and Write community. Authentication Password SNMP trap can be used to check periodically for operational The Authentication Password is an encryption for thresholds or failures that are defined in the MIB.
  • Page 48 Setup - Network Setup RTSP Information Target Stream Select the channel you want to set. Time out Set the RTSP time out. The session is disconnected after the specified time out. RTP Multicast Check RTP Multicast On/Off. To activate RTP Multicast, 1.
  • Page 49 Setup - Trigger Action Setup Action Rules Configuration Action rules List It indicates the custom action rule information added to Action rules list. Click ‘Add’ to add custom action rules. Click ‘Modify' to modify selected item from the action rules list. Click 'Delete' to delete selected item from the action rules list.
  • Page 50 Setup - Trigger Action Setup Action Rules Add / Modify Name Define name of action rules. Action1 ~ Aciton5 Select the action to take If the event occurs. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous menu.
  • Page 51 Setup - Trigger Action Setup Image Transfer Configuration Pre / Post Alarm Image Image Transfer due to event is configured by setting Image transfer rate and Pre / Post alarm duration. Descriptions Number Define Number of image transferred per second. of Image Pre-alarm Define duration of image transfer before an event.
  • Page 52 Setup - Events Setup Event Rules Configuration Event Rules List It indicates the custom Event Rule information added to Event Rules list. Click ‘Add’ to add custom event rules. Click ‘Modify' to modify selected item from the event rules list. Click 'Delete' to delete selected item from the event rules list.
  • Page 53 Setup - Events Setup Event Rules Configuration Name Define the Event rule name. Event Select the event among motion detection, Network Disconnected, Temperature Critical. Click 'Cancel' to return to the previous setting. You need a event one more. Rules Select the action rule defined in the Trigger Action-Action rule menu.

  • Page 54: Motion Detection Configuration

    Setup - Event Setup Motion Detection Configuration Sensitivity Motion Detection Define the sensitivity of motion detection. If High value is It shows the Motion event status. selected, it will detect very small motion while it becomes Event Alert Icon( ) appears if ‘Motion Detection’ is activated. relatively insensitive when Low value is selected.
  • Page 55 Setup - Events Setup Temperature Mode Select the either Fahrenheit and Celsius. Threshold Define the temperature at which the event trigger is occurred. Temperature It indicates the current temperature of the IP camera. Click ‘Apply’ to make above setting effective.

  • Page 56: Record Configuration

    Setup - Record Setup Record Configuration Target Stream Select the channel you want to record video. Click ‘Save’ to save the current settings. Recording List Display the information about the recording settings. Click ‘Modify’ to modify the selected item in the recording list.
  • Page 57 Setup - Record Setup Record Configuration Enabled The Recording function can be enable or disable. File Type Select the recording file type. Currently only supports Ts Type. Storage Select the storage type. Continous If continous mode is turned on, Start the continuous recording without any other setting.

  • Page 58: Recording List

    Setup - Record Setup Recording List Filter Select the date / time, event, sort or storage format to filter the recorded video. Click the 'Refresh' button to refresh the records list. Click 'Filter' to view the filtered recorded video. Recording List Dispaly the information to the recording video.

  • Page 59: Recording Video

    Setup - Record Setup Recording Video Recording Video Viewer Play the recorded video. Recording Video Information Display the information about the recorded video. Click 'Replay' to view the recorded video again. Click 'Back' to return to the previous menu.

  • Page 60: Storage Configuration

    Setup - Record Setup Storage Configuration Display the SD card information mounted from device. When you select the item in Storage list, You can set the functions related to the SD card.
  • Page 61 Setup - Record Setup Storage Configuration Storage Size Unmount Total capacity of SD card and the remainder of it are remove the SD card from the device. displayed. Format Auto Delete Delete the all contents that stored in SD card. Select the period for Auto delete. The image data stored before period will be deleted automatically.

  • Page 62: Ip Address Filter Configuration

    Setup - Security Setup IP Address Filter Configuration IP Address Filter IP filter function can be enable or disable. IP Filter Type Select the recording IP filter type. Click ‘Apply’ to make above setting effective. Filter IP Address Display the filterd IP address. IP Address Define the IP address you want to apply the IP filter.
  • Page 63 Setup - Security Setup RTSP Authentication Configuration RTSP Authentication RTSP Authentication can be enable or disable. Click ‘Apply’ to make above setting effective.

  • Page 64: Ieee 802.1X Configuration

    Setup - Security Setup IEEE 802.1X Configuration The feature is needed when connecting the camera to the Password network protected by the IEEE 802.1X. Type the Password to identify the client in the IEEE 802.1X authentication server. IEEE 802.1x The IEEE 802.1x feature can be enable or disable. Verify Verify Password.
  • Page 65 Setup - Security Setup HTTPS Configuration HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications. Certificate Select an installed certificate. If you can not select a certificate, please install the certificate from the Security->Certificates menu. HTTPS connection Policy Select one of “HTTP”, “HTTPS”, “HTTP and HTTPS”...
  • Page 66 Setup - Security Setup Certificates Configuration Server/Client Certificates Install Certificate It show the installed certificates. Install Certification Create Self-Signed Certificate CA Certificate A self-signed SSL certificate is an identity certificate signed It show the installed CA certificates. by its own creator. but they are considered to be less trust -worthy.
  • Page 67 Setup - Security Setup Certificates Configuration Detail for Install Certification. Cancel Cancel install certificate and then back to certificates configuration. Certificate From Signing Request Select to install signed certificate returned from the CA. Detail for Install CA Certification. Certificate And Private Key Select to install Certificate And Private Key to install a certi Certificate Name -ficate and private key.

  • Page 68: Service Configuration

    Setup - Security Setup Service Configuration Telnet The Telnet function can be enable or disable. Click ‘Apply’ to make above setting effective.

  • Page 69: System Information

    Setup - System Setup System Information System Capability information. Device Name You can define the device name. Click ‘Apply’ to make above setting effective.

  • Page 70: Firmware Update

    Setup - System Setup Firmware Update Warning: Version Information 1. Do not turn off the power of camera during the Firmware It shows the current Firmware Version in the system. update. Otherwise, the system can be stuck to be unstable. If updating is finished, the system will be rebooted Web Update Select the Firmwar file in your computer by clicking...
  • Page 71 Setup - System Setup Firmware Update FTP Server Address Password Define FTP Server IP Address. If IP Address form is incorrect, Define Password to access to the FTP Server. Fill out the a Message box will be shown to try again. correct Password registered in the FTP Server.

  • Page 72: Date And Time Settings

    Setup - System Setup Date & Time Settings TimeZone Setup Synchronize with time sever Time Zone (NTP) Choose TimeZone for camera. It will be activated after Choose time server available to connect to current camera. clicking ‘Apply’ button. Date & Time will be updated automatically every hour Prior to setting below ‘New Camera Date &...

  • Page 73: Dst Settings

    Setup - System Setup DST Settings Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months, and back again in the fall, in order to make better use of natural daylight. General Setting DST function can be enable or disable.

  • Page 74: Users Management

    Setup - System Setup Users Management Users Modify List all the user accounts for authentication. Modify the information of the user accounts registered. For admin account, only Password function can be modified. Register a new user Delete Delete the selected user account. Admin account cannot be deleted.

  • Page 75: System Log

    Setup - System Setup System Log Filter Select a date, sort or type of log to filter the log. Click the 'Refresh' button to refresh the log list. Click 'Filter' to view the filtered log. System Log List The filtered log is displayed.

  • Page 76: Factory Reset

    Setup - System Setup Factory Reset Reset to the factory defaults Return the setup to the factory default. Reset all Settings to the factory defaults. Except Network Settings Except Network related settings , reset all others to the factory default. Click ‘Apply’...
  • Page 77 Setup - System Setup Restart...
  • Page 78 Appendix A : Current TCP/IP Settings If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ. 1. Windows 7 Users 2.

  • Page 79: B : Changing Ip Address And Subnet Mask

    Appendix - B : Changing IP address and subnet mask 1. Windows 7 Users 2. Windows 10 Users Start Start Control Panel Settings Network and Network & Internet sharing center Click on Change adapter options in Manage network Ethernet connections Select the Ethernet, Properties Right click and...
  • Page 80 Spec CAMERA I/O & EVENT Image Sensor 1/2.7” 2.0M CMOS Event Notification FTP, E-mail, SD card Total Pixels 1928(H) X 1088(V) Focal Length 2.8mm, 6mm F2.0 /4mm F2.6 D : 136°, H : 118°, V : 65° (2.8mm) Angle D : 103°, H : 88°, V : 46° (4mm) SECURITY &...
  • Page 81 Appendix - My POWER light is not on? How do I “PING” an IP address? Power is not being supplied to the unit. Please use the power 1) Open an MS-DOS (or Command) prompt supply shipped with the unit and verify that a power source 2) At the prompt type - “ping xxx.xxx.xxx.xxx”...

This manual is also suitable for:

Dwc-mv72wi6Dwc-mv72wi28
