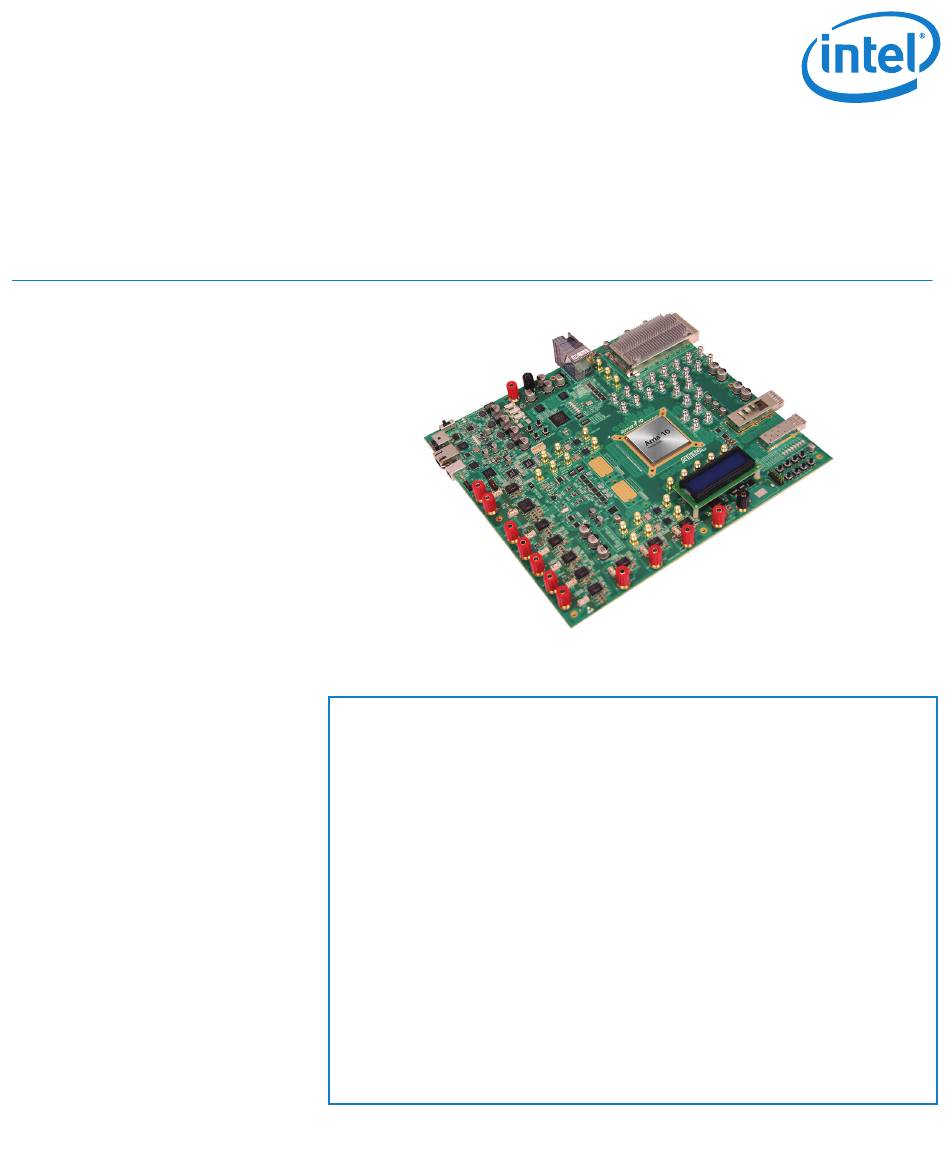

Quick start guide
Intel® Arria® 10 GX Signal
Integrity Development Kit
A Complete Development Platform for Prototyping
Introduction
The Intel® Arria® 10 GX Signal Integrity
Development Kit helps you thoroughly
evaluate the signal integrity of Intel
Arria 10 GX transceivers. With this kit,
you can:
• Evaluate Intel Arria 10 GX FPGA
transceiver performance
• Generate and check pseudo-
random binary sequence (PRBS)
patterns via an easy-to-use GUI
• Dynamically change differential
output voltage (VOD),
pre-emphasis, and equalization
settings to optimize transceiver
performance for your channel
• Perform jitter analysis
• Verify physical medium attachment
(PMA) compliance to PCI Express*
(PCIe*), Gbps Ethernet (GbE), XAUI,
CEI-6G, Serial RapidIO*, high-
definition serial digital interface
(HD-SDI), and other major
standards
What's in the Box
• Transceiver Signal Integrity Development Board,
- Intel Arria 10 GX FPGA (10AX115S2F45I1SG)
- Six full-duplex transceiver channels with 2.4 mm SMA connectors
- Four full-duplex transceiver channels to Amphenol Xcede+*
backplane connector
- Four full-duplex transceiver channels to CFP2 optical interface
- Four full duplex transceiver channel to QSFP+ optical interface
- Single transceiver channel to SFP+ optical interface
- Ten full-duplex transceiver channels to Samtec Bullseye high-density
connector
- LCD
- Ethernet PHY
• AC adapter power supply
• USB ll type A to B cable
• Ethernet cable
• Documentation
You can download the kit installer directly from
www.intel.com/content/www/us/en/programmable/products/boards_and_kits/dev-kits/altera/
kit-a10-gx-si.html
Advertisement
Related Manuals for Intel Arria 10 GX
Summary of Contents for Intel Arria 10 GX
- Page 1 Introduction The Intel® Arria® 10 GX Signal Integrity Development Kit helps you thoroughly evaluate the signal integrity of Intel Arria 10 GX transceivers. With this kit, you can: • Evaluate Intel Arria 10 GX FPGA transceiver performance • Generate and check pseudo-...
- Page 2 Quick Start Guide | Intel Arria 10 GX Signal Integrity Development Kit Using the Board Update Portal The Board Update Portal design example in this kit Step 1. Connect to the Board Update Portal facilitates easy development kit software and board flash 1. With the board powered down, set SW3 position 2 to memory updates, allowing you to: open (factory position).
- Page 3 Quick Start Guide | Intel Arria 10 GX Signal Integrity Development Kit Using the Transceiver Signal Integrity Demonstration Step 2. Install the development kit software The Transceiver Signal Integrity Demonstration consists of Install the latest development kit software tools from a Java-based GUI and an FPGA design.
- Page 4 Xeon, MAX, Nios, Quartus and Stratix are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. *Other marks and brands may be claimed as the property of others. Intel reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and...
