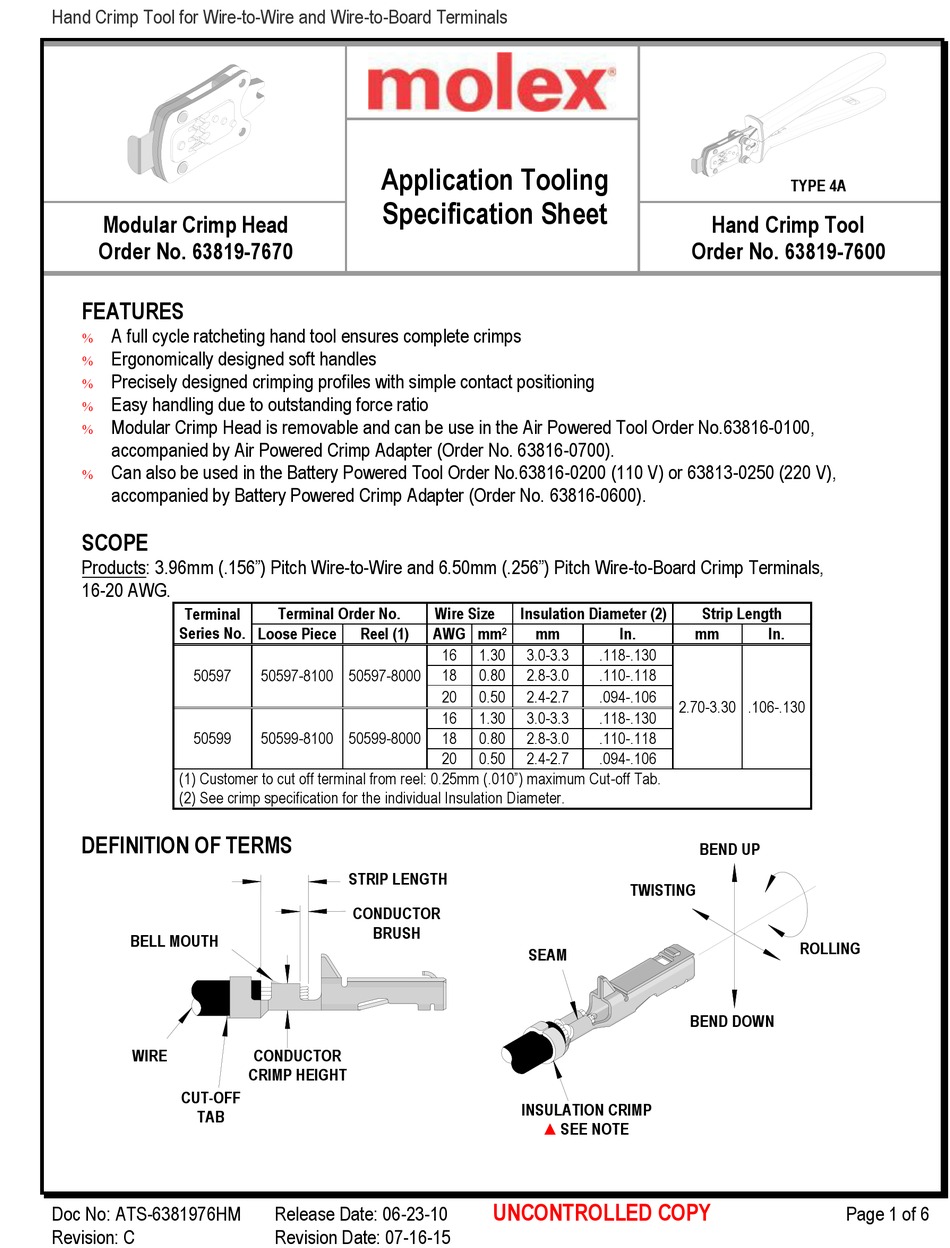

Hand Crimp Tool for Wire-to-Wire and Wire-to-Board Terminals
Modular Crimp Head
Order No. 63819-7670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63813-0250 (220 V),
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 3.96mm (.156") Pitch Wire-to-Wire and 6.50mm (.256") Pitch Wire-to-Board Crimp Terminals,
16-20 AWG.
Terminal
Series No.
50597
50599
(1) Customer to cut off terminal from reel: 0.25mm (.010") maximum Cut-off Tab.
(2) See crimp specification for the individual Insulation Diameter.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-6381976HM
Revision: C
Application Tooling
Specification Sheet
Terminal Order No.
Loose Piece
Reel (1)
50597-8100 50597-8000
50599-8100 50599-8000
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 06-23-10
Revision Date: 07-16-15
Wire Size
Insulation Diameter (2)
AWG mm
mm
2
16
1.30
3.0-3.3
.118-.130
18
0.80
2.8-3.0
.110-.118
20
0.50
2.4-2.7
.094-.106
16
1.30
3.0-3.3
.118-.130
18
0.80
2.8-3.0
.110-.118
20
0.50
2.4-2.7
.094-.106
SEAM
INSULATION CRIMP
▲SEE NOTE
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63819-7600
Strip Length
In.
mm
In.
2.70-3.30 .106-.130
BEND UP
TWISTING
BEND DOWN
ROLLING
Page 1 of 6
