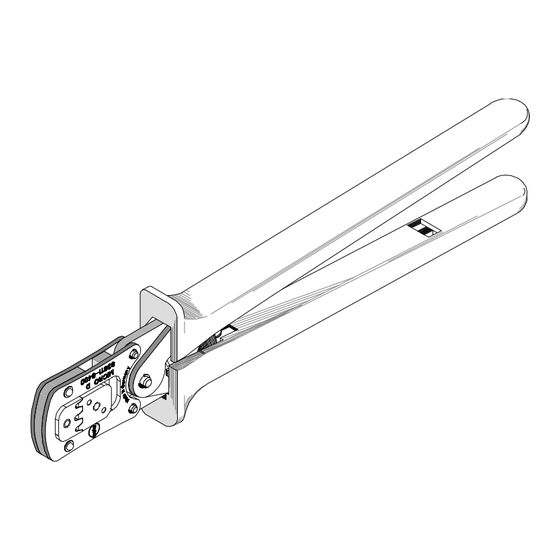

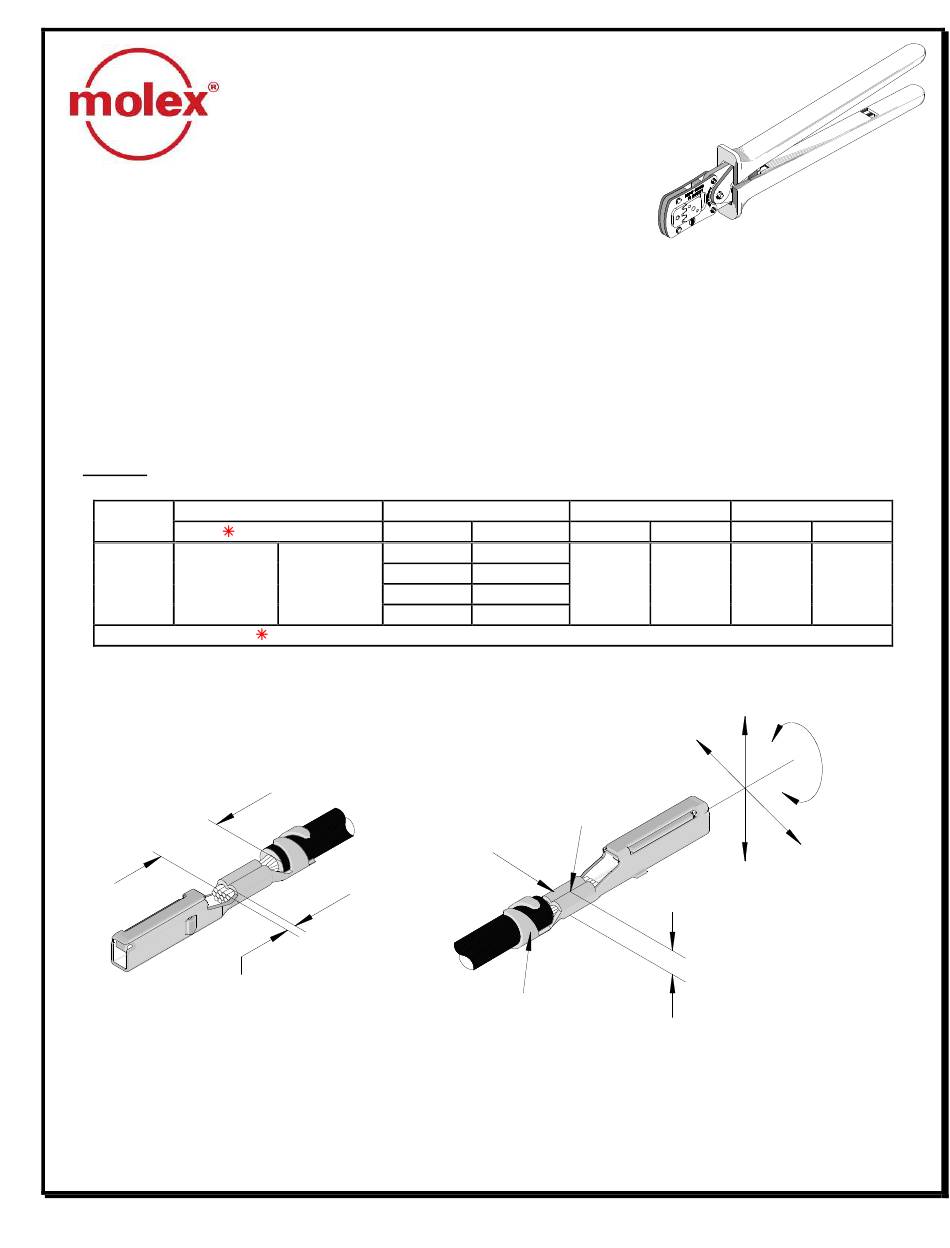

Hand Crimp Tool for CTX 1.50mm Receptacle Crimp Terminal
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
A-620 Class 2 compliant
%
RoHS compliant although not required
%
SCOPE
Products: CTX 1.50mm Receptacle Crimp Terminal for 1.25, 1.50, and 2.00mm
Terminal
Terminal Order No.
Series
502307-0113
502307
502307-1113
502307-2113
DEFINITION OF TERMS
STRIP
LENGTH
BRUSH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No: ATS-638194100
Revision: A
HAND CRIMP TOOL
Specification Sheet
Order No. 63819-4100
Reel Form only
Wire Style
AVSS
502307-0123
ISO
502307-1123
AVSS
502307-2123
ISO
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
Release Date: 01-05-09
Revision Date: 01-05-09
Wire Size
Insulation Diameter
mm
2
/ AWG
mm
1.25
1.50
2.10-2.80
2.00
2.00
SEAM
CONDUCTOR
CRIMP
INSULATION
CRIMP
UNCONTROLLED COPY
TYPE 4A
2
wires.
Wire Strip Length
In.
mm
.083-.110
4.50-5.00
BEND UP
TWISTING
BEND
DOWN
CRIMP HEIGHT
In.
.177-.197
ROLLING
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for molex 63819-4100
Summary of Contents for molex 63819-4100
- Page 1 Hand Crimp Tool for CTX 1.50mm Receptacle Crimp Terminal HAND CRIMP TOOL Specification Sheet Order No. 63819-4100 TYPE 4A FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning...
- Page 2 Hand Crimp Tool for CTX 1.50mm Receptacle Crimp Terminal CONDITIONS: Bell mouth Conductor Brush Bend up Bend Down Twist Roll Terminal Series Degree Degree 502307 0.20-0.55 .008-.022 0.20-0.70 .008-.028 After crimping, the crimp profiles should measure the following (See notes on page 4). Conductor Crimp Reference Profile Wire Size...
- Page 3 3. This tool is intended only for the wire types specified. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 4 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638194100 Release Date: 01-05-09 Page 4 of 4 Revision: A Revision Date: 01-05-09...
