Mase Generators IS 10 T Use And Maintenance Manual page 31

IS 8 - 9.5/ 9 - 10.2
Rif. Cod. Q.ty Descrizione
010291 1
011266 1
012977 1
012978 1
1 012397 1
2 32393 1
3 32402 1
4 30270 1
5 30474 1
5 30475 1
6 32375 1
6 32689 1
6 32223 1
7 31029 1
8 30356 1
QUADRO DI COMANDO IS 8 50.115/230
QUADRO DI COMANDO IS 9.5 60.120/240
QUADRO DI COMANDO IS 9 50.115/230
QUADRO DI COMANDO IS 10.2 60.120/240
PANNELLO + ADESIVO
MODULO PROTEZIONE MOTORE
INTERRUTTORE START/0/STOP
CALOTTA PER T11-211 TIPO H
CONTAORE 110V 50Hz IS 8 - IS 9
CONTAORE 110V 60Hz IS 9.5 - IS 10.2
INT.AM2S 35A 250V BIPOLARE IS 8 - IS 9
INT.AM2S 38A 250V BIPOLARE IS 9.5
INT.AM2S 45A 250V BIPOLARE IS10.2
DISGIUNTORE TERMICO 12A
FUSIBILE 6A 5x20
CRUSCOTTO COMANDI
CONTROL PANEL
Description
CONTROL PANEL
CONTROL PANEL
CONTROL PANEL
CONTROL PANEL
PANEL + LABEL
ENGINE PROTECTION MODULE
START/0/STOP BUTTON
THERMAL SWITCH PROTECTION
HOURSMETER 50Hz IS 8 - IS 9
HOURSMETER 60Hz IS 9.5 - IS 10.2
CIRCUIT BREAKER 35A 250V IS 8 - IS 9
CIRCUIT BREAKER 38A 250V IS 9.5
CIRCUIT BREAKER 45A 250V IS 10.2
THERMAL SWITCH 12A
FUSE 6A
IS 10 T
Rev. / Rel.

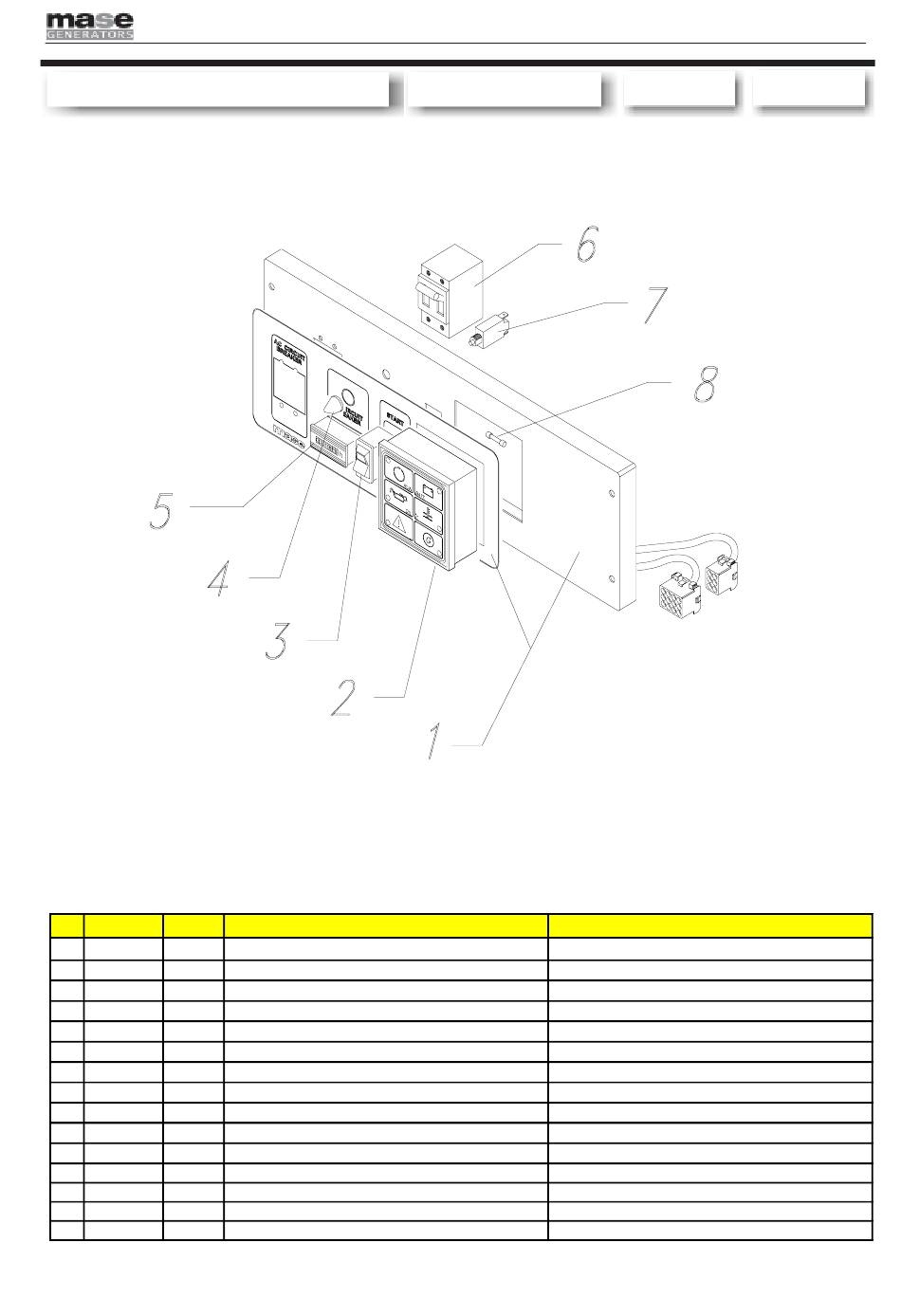

FIG. 5 / 7
50 Hz
- 31
