If, at this point, the user changes his/her mind and wants to keep the current value,
it's possible to exit the menu by pressing the front panel's left button or by pushing
the "ESC" key on the remote control.
Following is a description of all menu items.

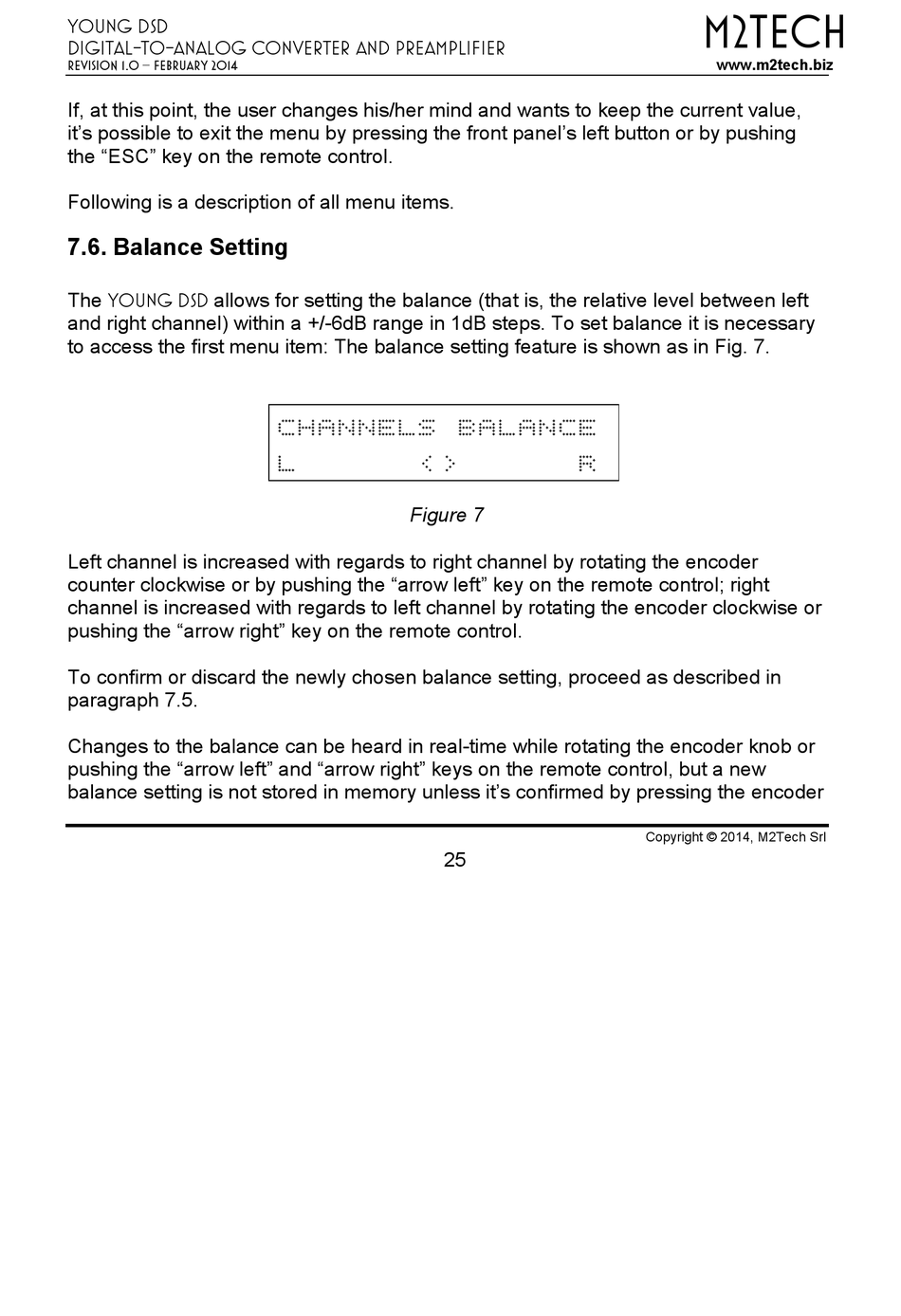

7.6. Balance Setting

The YOUNG DSD allows for setting the balance (that is, the relative level between left
and right channel) within a +/-6dB range in 1dB steps. To set balance it is necessary
to access the first menu item: The balance setting feature is shown as in Fig. 7.
Left channel is increased with regards to right channel by rotating the encoder
counter clockwise or by pushing the "arrow left" key on the remote control; right
channel is increased with regards to left channel by rotating the encoder clockwise or
pushing the "arrow right" key on the remote control.
To confirm or discard the newly chosen balance setting, proceed as described in
paragraph 7.5.
Changes to the balance can be heard in real-time while rotating the encoder knob or
pushing the "arrow left" and "arrow right" keys on the remote control, but a new
balance setting is not stored in memory unless it's confirmed by pressing the encoder
CHANNELS BALANCE
L <>
Figure 7
