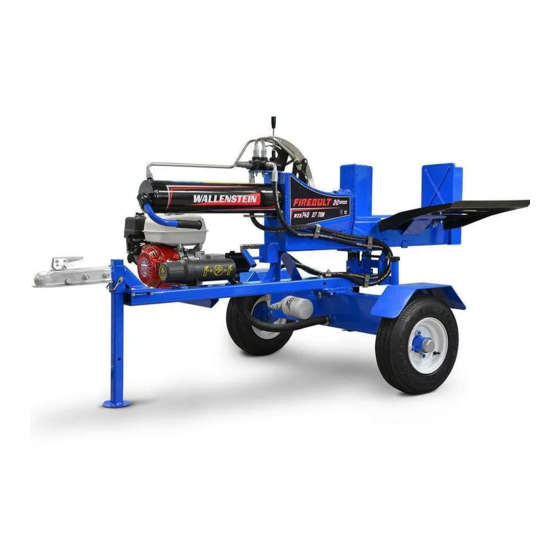

- Page 1 OPERATOR'S MANUAL WXR720 up to S/N 720123 WXR720L up to S/N 720123 WXR740 up to S/N 740377 720/L, 740/L WXR740L up to S/N 740383 Trailer Wood Splitter Rev Feb-2020 Part Number: Z97105_En...
-
Page 2: Introduction
Trailer Wood Splitter 1. Introduction Keep this manual handy for reference and to pass on to new operators or owners. Call your Wallenstein dealer, distributor or the factory if you need assistance, Foreword information or additional copies of the manuals. -
Page 3: Table Of Contents
WXR720/L, WXR740/L Introduction Trailer Wood Splitter Table of Contents 1. Introduction ............2 7. Storing the Wood Splitter ........32 Foreword ............2 Removing from Storage .........32 Delivery Inspection Report ......4 8. Service and Maintenance ........32 Serial Number Location ........5 Maintenance Safety ........32 Warranty ............6 Fluids and Lubricants ........33 Decal Information ..........7... -
Page 4: Delivery Inspection Report
WXR720/L, WXR740/L Introduction Trailer Wood Splitter Delivery Inspection Report WALLENSTEIN WXR720 / WXR740 Series Trailer Wood Splitters To activate warranty, register your product online at http://www.wallensteinequipment.com _________________________________________ Pre-delivery Inspection Customer’s Name Inspect for damage from shipping. Immediately contact the shipping company if damage is found. -
Page 5: Serial Number Location
Trailer Wood Splitter Serial Number Location Always provide the model and serial number of your Wallenstein product when ordering parts, or requesting service or other information. The product information plate location is shown in the illustration. For future convenience, record your product Model and Serial Number in the spaces provided below. -
Page 6: Warranty
Introduction Trailer Wood Splitter Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the operating and maintenance instructions supplied with the unit. -
Page 7: Decal Information
Product Decals indicate machine model and serial shows the message (how to avoid the hazard). number, and other important information. Manufactured by: Wallenstein Equipment Inc., 7201 Line 86, Wallenstein ON N0B2S0, Canada MODEL: ########## TYPE OF VEHICLE/TYPE DE VEHICLE: TRA / REM... -
Page 8: Safety
ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert Symbol identifies important safety messages on the Wallenstein wood splitter and in the manual. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message. -
Page 9: Why Is Safety Important
- Heavy work gloves • Accidents Can Be Avoided - Protective shoes with slip resistant soles The policy of Wallenstein Equipment Inc. is to produce • DO have a first-aid kit available products that are safe and reliable. However, even... -
Page 10: Equipment Safety Guidelines
WXR720/L, WXR740/L Safety Trailer Wood Splitter Equipment Safety Guidelines 2. Train all new personnel and review instruc tions frequently with existing workers. Only properly Always place the machine in a Safe Condition before trained and physically able operators should performing any service work, maintenance procedures, use this equipment. -
Page 11: Refueling Safety
WXR720/L, WXR740/L Safety Trailer Wood Splitter 2.10 Hydraulic System Safety 12. Check that all the lights, reflectors and other lighting requirements are installed and in good 1. Make sure that all the components in the hydraulic working condition. system are kept in good condition and are clean. 13. -
Page 12: Be Prepared
WXR720/L, WXR740/L Safety Trailer Wood Splitter 6. DO NOT remove fuel tank cap while engine is 3. Examine muffler periodically to be sure it is running. functioning effectively. A worn or leaking muffler should be repaired or replaced as necessary. 7. - Page 13 WXR720/L, WXR740/L Safety Trailer Wood Splitter 2.12.1 Sign-Off Form The design and manufacture of this product conforms to relative provisions in the following standards: Anyone using this machine must read and thoroughly understand all Safety, Operation and Maintenance ISO 4254-1 Agricultural machinery – Safety information in this manual.
-
Page 14: Safety Signs
WXR720/L, WXR740/L Safety Signs Trailer Wood Splitter 3. Safety Signs Safety Sign Locations The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various safety signs, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. -
Page 15: Safety Sign Explanations
WXR720/L, WXR740/L Safety Signs Trailer Wood Splitter Safety Sign Explanations 1. Warning! Always wear appropriate Personal Protective Equipment when using this machine. For example: • A hard hat • Heavy gloves • Hearing protection • Protective shoes with slip resistant soles •... -
Page 16: Replacing Damaged Safety Signs
WXR720/L, WXR740/L Safety Signs Trailer Wood Splitter 4. Warning! Keep feet away from falling split wood. Always wear steel toed foot wear while machine is operating to avoid serious personal injury. Replacing Damaged Safety Signs 1. Keep safety signs clean and legible at all times. 2. -
Page 17: Familiarization
WXR720/L, WXR740/L Familiarization Trailer Wood Splitter 4. Familiarization 4.1.1 Training Each operator must be trained in the proper set-up and operating procedures before using the machine. To the New Operator 1. Move the unit to a large open area to allow the It is the responsibility of the owner or operator to operator to become familiar with control functions read this manual and to train all other operators... -
Page 18: Machine Components
WXR720/L, WXR740/L Familiarization Trailer Wood Splitter Machine Components WXR720, WXR720L 00618 Fig. 3 – WXR720, WXR720L Wood Splitter Components 1. Hydraulic Cylinder 2. Splitter Control Handle 3. Sliding Push Block 4. Non-tilting Splitter Bed 5. Splitter Wedge 6. Trailer Tongue 7. - Page 19 WXR720/L, WXR740/L Familiarization Trailer Wood Splitter WXR740, WXR740L 00619 Fig. 4 – WXR740, WXR740L Wood Splitter Components 1. Tilting Splitter Bed 2. Sliding Wedge 3. Splitter Control Handle 4. Splitter Bed Spring Latch 5. Hydraulic Cylinder 6. Honda GX200 Engine 7.
-
Page 20: Controls
WXR720/L, WXR740/L Controls Trailer Wood Splitter 5. Controls 5.1.2 Choke Lever The choke lever opens and closes the choke valve in IMPORTANT! Before starting work with the wood the carburetor. splitter, become familiar with the location and • Place the choke lever in the CLOSED position (3) function of all controls. -
Page 21: Hydraulic Controls
WXR720/L, WXR740/L Controls Trailer Wood Splitter Hydraulic Controls 5.1.4 Throttle Lever This lever controls the engine speed. Move the lever The WXR Series wood splitters are equipped with side to side to increase or decrease engine rpm. 2X2–Speed FIREBOLT technology. The FIREBOLT Always operate the wood splitter with the throttle lever system consists of a two-stage hydraulic pump and a in the MAX position. -
Page 22: Operating Instructions
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 6. Operating Instructions Wallenstein WXR Trailer Wood Splitters are self- contained machines designed to push wood through a wedge to split it. • The WXR720 splitter models operate in the horizontal configuration only. -
Page 23: Before Starting The Engine
11. Do not try to split logs across the grain. Some types of wood can burst or splinter causing pieces Efficient and safe operation of the Wallenstein to be thrown causing injury. wood splitter requires that each operator reads and 12. -
Page 24: Machine Break-In
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter Machine Break-In Although there are no operational restrictions on the wood splitter when used for the first time, it is recommended that the following items be checked: Review the engine owner's manual for break-in recommendations. -
Page 25: Fuel Level Check
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 6.6.1 Adding Hydraulic Oil to the Tank The hydraulic system uses Dexron® III ATF. 1. Clean the area around filler cap and remove it. 2. Use a clean funnel and add oil until the level is at the full mark on the dipstick. -
Page 26: Engine Air Cleaner
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter Machine Set-up 2. Install fuel fill cap securely and wipe up any spilled fuel. IMPORTANT! Park the wood splitter on a level, Engine Air Cleaner dry work area free of debris and other objects. Position the splitter so the prevailing wind blows A dirty air filter can restrict air flow to the carburetor, engine exhaust away from the operator. -
Page 27: Starting The Engine
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 6.9.2 WXR740, WXR740L 00201 00623 Fig. 17 – WXR740, WXR740L Set-up 1. Jack Stand, Snap Lock Pin Fig. 18 – Rotate Splitter to Vertical 2. Jack Stand 6.10 Starting the Engine The WXR740 Series splitters are designed with a pivoting main frame that allows horizontal or fully vertical splitting. -
Page 28: Stopping The Engine
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 00188 00192 Fig. 19 – Choke Lever Fig. 22 – Recoil Starter 1. Choke Lever 2. Choke OPEN 3. Choke CLOSED IMPORTANT! Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter. -
Page 29: Log Placement
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 6.13 Log Placement 6.14 Splitting Logs WARNING! WARNING! Risk of pinching or crushing hazard between the Risk of pinching or crushing hazard! The worker wedge or push block and the log! loading the splitter MUST be the only one in control of the hydraulic cylinder and splitting Never place hands at the ends of the log. - Page 30 WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 00621 Fig. 25 – High Speed (2), High Power (1) Vertical Splitting (WXR740, WXR740L only) 00622 Fig. 26 – Vertical Splitting...
-
Page 31: Transporting
WXR720/L, WXR740/L Operating Instructions Trailer Wood Splitter 6.15 Transporting 6.15.2 Connecting a Tow Vehicle 1. Keep bystanders are clear of the machine. 6.15.1 Prepare for Transport 2. Make sure there is enough room and clearance to • On WXR740 Series splitters, make sure the safely back up to the machine. -
Page 32: Storing The Wood Splitter
WXR720/L, WXR740/L Service and Maintenance Trailer Wood Splitter 7. Storing the Wood Splitter 8. Service and Maintenance After the season's use and the wood splitter is going WARNING! to be put away in storage, it should be thoroughly inspected and prepared. Repair or replace any worn Risk of serious personal injury. -
Page 33: Fluids And Lubricants
WXR720/L, WXR740/L Service and Maintenance Trailer Wood Splitter Maintenance Schedule 8. Inspect and tighten all bolts, nuts and screws. Check that all electrical and fuel connections are Perform maintenance procedures at time shown or properly secured. hour interval, whichever comes first. 9. -
Page 34: Grease Points
WXR720/L, WXR740/L Service and Maintenance Trailer Wood Splitter Grease Points Grease Points Location – Every 40 hours of operation Use a hand-held grease gun for all greasing. Pump or annually one shot of grease per fitting. Frame slide • Wipe grease fitting with a clean cloth before greasing to avoid injecting dirt and grit. -
Page 35: Hydraulic Oil - Changing
WXR720/L, WXR740/L Service and Maintenance Trailer Wood Splitter Hydraulic Oil – Changing Hydraulic Oil Filter – Changing Change the hydraulic oil at 100 hours of operation Change hydraulic oil filter at 100 hours of operation or annually. or annually. The filter is located on side of the hydraulic oil tank. CAUTION! Place the machine in a Safe Condition. -
Page 36: Engine Air Cleaner
WXR720/L, WXR740/L Service and Maintenance Trailer Wood Splitter Electrical System – General required. 3. Apply a light coat of clean oil to the seal and install (As equipped) the new filter. Tighten by hand only. 4. Run the machine for 1–2 minutes operating the IMPORTANT! When assembling or replacing cylinder. -
Page 37: Troubleshooting
The following table lists some problems that may be the manual tube. encountered, with possible causes and solutions. If a problem persists after reading through the Troubleshooting section, contact the local dealer, distributor or Wallenstein Equipment. Have the machine serial number ready. Problem Cause Solution Oil filter plugged. -
Page 38: Specifications
WXR720/L, WXR740/L Specifications Trailer Wood Splitter 10. Specifications 10.1 Machine Specifications Model WXR720/L WXR740/L Mounting Trailer Mounted Engine Model Honda GX200 196 CC Engine Displacement 4.5" (114 mm) Cylinder Diameter 24" (610 mm) Cylinder Stroke 27 Ton Splitting Force 4-postion, Spring-loaded To neutral Valve Type 2-stage Hydraulic Pump Type... -
Page 39: Common Bolt Torque Values
WXR720/L, WXR740/L Specifications Trailer Wood Splitter 10.2 Common Bolt Torque Values Checking Bolt Torque Imperial Bolt Torque Specifi cations The tables shown give correct torque values for Torque Value various bolts and capscrews. Tighten all bolts to Bolt the torque values specified in the table, unless SAE Gr. -
Page 40: Hydraulic Fitting Torque
WXR720/L, WXR740/L Specifications Trailer Wood Splitter 10.3 Hydraulic Fitting Torque Hydraulic Fitting Torque Tightening Flare Type Tube Fittings Tube Size Flats From 1. Check flare and flare seat for defects that Size Torque value Across Finger Tight might cause leakage. Flats 2. -
Page 41: Alphabetical Index
WXR720/L, WXR740/L Alphabetical Index Trailer Wood Splitter 11. Alphabetical Index Stop Position ............22 Hydraulic Fitting Torque ..........40 Hydraulic Oil ...............33 Hydraulic Oil – Changing ...........35 Adding Hydraulic Oil to the Tank ........25 Hydraulic Oil Level Check ..........24 Air Cleaner Inspection ..........26 Hydraulic Oil Type ............25 Angled Splitter Bed ............27 Ignition Switch ............20... - Page 42 WXR720/L, WXR740/L Alphabetical Index Trailer Wood Splitter Personal Protective Equipment (PPE) ....9 Preparation ............12 Refueling Safety ............11 Safety Alert Symbol ..........8 Safety Do's and Don'ts ..........9 Safety Training ............10 Signal Words ............8 Tire Safety .............11 Transport Safety ............10 Safety Alert Symbol ............8 Safety Notice Labels ............7 Safety Sign Explanations ...........15 Safety Sign Locations ..........14...
