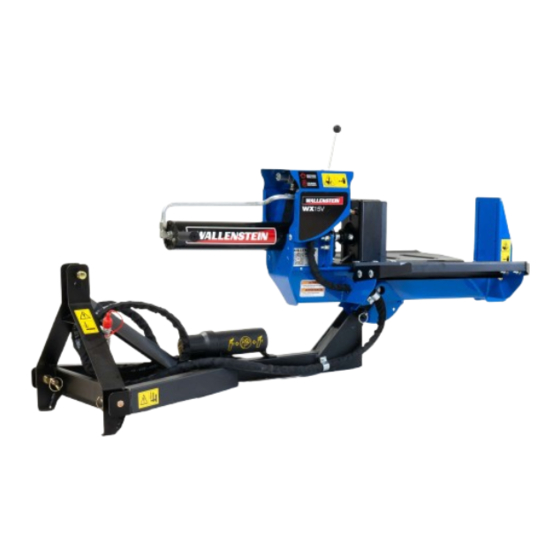

Wallenstein WX15V Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
Serial number 1103257 and up
WX 15V / WX 20V
Log Splitter
Revision: Sep-2024
Document number: Z97173_En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WX15V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wallenstein WX15V

Summary of Contents for Wallenstein WX15V

  • Page 1 OPERATOR'S MANUAL Serial number 1103257 and up WX 15V / WX 20V Log Splitter Revision: Sep-2024 Document number: Z97173_En...

  • Page 2: Table Of Contents

    WX15V / WX20V Log Splitter Table of Contents 1. Introduction ............3 7. Transport ............32 1.1 Delivery Inspection Report ........4 7.1 Transport Safety ............. 32 1.2 Serial Number Location ..........5 7.2 Prepare the Machine for Transport ......32 1.3 Types of Labels on the Machine ........ 6 8.

  • Page 3: Introduction

    WX15V / WX20V Introduction Log Splitter 1. Introduction For support or service, contact your local Wallenstein dealer or WARNING! Wallenstein Equipment. Do not start or operate the machine before This manual is subject to change without notice. For the most you read this manual.

  • Page 4: Delivery Inspection Report

    Log Splitter 1.1 Delivery Inspection Report Wallenstein WX15V / WX20V Log Splitter To register your product and start the warranty, go to WallensteinEquipment.com. This form must be completed by the dealer at the time of delivery, and then signed by the dealer and customer.

  • Page 5: Serial Number Location

    WX15V / WX20V Introduction Log Splitter 1.2 Serial Number Location Always provide the model and serial number of your Wallenstein product when you order parts, or request service or other information. The product information plate location is shown in the following illustration.

  • Page 6: Types Of Labels On The Machine

    This type of label gives the operator information or shows the operation of There are different types of labels on your Wallenstein product. a control. The labels are for safety, information, and product identification.

  • Page 7: Safety

    • Accidents are preventable. You are responsible for the safe operation and maintenance of your Wallenstein Equipment product. You must make sure that you and anyone who uses, maintains, or works around the machine is familiar with the operation and maintenance procedures and related safety information in this manual.

  • Page 8: Safety Rules

    • Protective shoes with steel toes and slip resistant soles. W016 • Long exposure to loud noise can Wallenstein Equipment puts considerable effort into designing cause permanent hearing loss. Power products that are safe to use; however, it is also the equipment, with or without a vehicle responsibility of the operator to use the equipment safely.

  • Page 9: Equipment Safety Guidelines

    WX15V / WX20V Safety Log Splitter 2.5 Equipment Safety Guidelines SAFE CONDITION Safety is one of the primary concerns in equipment design and 1. On the machine, fully retract the wedge. development. However, every year there are accidents that can be prevented.

  • Page 10: Training Record

    WX15V / WX20V Safety Log Splitter 2.8 Training Record The design and manufacture of this product conforms to the applicable provisions in the following standards: Everyone who uses this machine must read and fully understand • ANSI/OPEI B71.7:2018 Powered Consumer Ram-Type Log all safety and operation information in this manual.

  • Page 11: Work Site

    WX15V / WX20V Safety Log Splitter 2.9 Work Site 2.9.2 Create a Safe Work Area Read and obey the instructions for safe operation of the CAUTION! machine. Keep bystanders and workers safe from hazards. Obey the The operator must be fully familiar with the work following important guidelines: site before starting work.
  • Page 12 WX15V / WX20V Safety Log Splitter 1. Safe zone 2. Work zone 10 ft (3 m) 10 ft (3 m) 10 ft (3 m) 10 ft (3 m) 02819 Figure 2 – Example of a safe work area...

  • Page 13: Safety Labels

    Replacement safety labels are available damaged, or illegible. If a component is replaced from your local Wallenstein dealer Wallenstein Equipment. and it has a safety label on it, apply a safety label to the new component. If a person operates •...

  • Page 14: Safety Label Locations

    Safety Labels Log Splitter 3.2 Safety Label Locations The WX20V is shown, but the WX15V safety labels are the same. Numbers correspond with the Safety Label Definitions on page 16. 02820 Figure 3 – Safety label locations- right side (WX20V shown)
  • Page 15 WX15V / WX20V Safety Labels Log Splitter 02821 Figure 4 – Safety label locations- left side (WX20V shown)

  • Page 16: Safety Label Definitions

    WX15V / WX20V Safety Labels Log Splitter 3.3 Safety Label Definitions 4. Warning! Put on the necessary PPE 1. Caution! For example: Read the Operator's Manual • A hard hat. There is important safety information and instructions in the Operator's •...
  • Page 17 WX15V / WX20V Safety Labels Log Splitter 7. Warning! Impact and crush hazard A tractor side link can disconnect from the machine if it is not safely connected. If a side link disconnects from the machine, the machine can fall and cause serious injury.

  • Page 18: Familiarization

    WX15V / WX20V Familiarization Log Splitter 4. Familiarization The Wallenstein WX15V and WX20V log splitters are designed to 4.3 Operator Orientation split logs into firewood. When a log is put onto the split bed, the operator extends the IMPORTANT! The directions that are referred to in this wedge to split the log.

  • Page 19: Machine Components

    WX15V / WX20V Familiarization Log Splitter 4.4 Machine Components Know the machine components before you operate, service, or maintain the machine. 02823 Figure 6 – Machine components (WX20V shown) 1. Stop block 7. Top-link hitch pin (removable) 13. Splitter-control hydraulic cylinder 2.

  • Page 20: Controls

    WX15V / WX20V Controls Log Splitter 5. Controls WARNING! Do not operate the machine until you know the location of all the controls and how to use them correctly. 5.1 Splitter Control The splitter control extends the wedge to split a log.

  • Page 21: Split-Bed Latch

    WX15V / WX20V Controls Log Splitter 5.2 Split-bed Latch The split-bed latch holds the split bed in the horizontal position or the vertical position. The split-bed latch has two positions: Engaged The split-bed latch is extended and engaged with the split-bed latch plate.

  • Page 22: Operation

    WX15V / WX20V Operation Log Splitter 6. Operation It is the operator's responsibility to know and obey all the CAUTION! operation and safety procedures. Do not split wood across the grain. Some types 6.1 Operation Safety of wood can burst or splinter. Pieces of wood can become projectiles that are impact and cut hazards.

  • Page 23: Hydraulic System Operation Safety

    WX15V / WX20V Operation Log Splitter • Keep your hands, feet, clothing, and long hair away from • Keep all hydraulic system components clean and in good the machine during operation. condition. • Know the movement and turn radius of the tractor and •...

  • Page 24: Pre-Start Checklist

    WX15V / WX20V Operation Log Splitter 6.3 Pre-Start Checklist 6.4.2 After One to Five Hours of Operation • Examine the wedge and stop block. Make sure that they are Do the following before you start the machine the first time and in good condition and that the wedge moves freely.

  • Page 25: Connect The Machine To A Tractor

    WX15V / WX20V Operation Log Splitter 6.6 Connect the Machine to a Tractor WARNING! Pressurized hydraulic fl uid can penetrate the skin or eyes and cause serious illness, injury, or death. • Make sure that all hydraulic connections are tight before you apply pressure to the hydraulic system.
  • Page 26 WX15V / WX20V Operation Log Splitter 6. Connect the 3PH top link: a. Put the free end of the 3PH top link between the two sides of the machine top-link connection. b. Put a hitch pin through the two sides of the machine top-link connection and the top link.

  • Page 27: Disconnect The Machine From A Tractor

    WX15V / WX20V Operation Log Splitter 6.7 Disconnect the Machine from a 9. Disconnect the 3PH side links: Tractor a. On the right side of the machine, remove the linchpin from the hitch pin. b. Remove the left side link from the hitch pin.
  • Page 28 WX15V / WX20V Operation Log Splitter 6.8.2 Move the Split Bed to the Horizontal 8. Engage the split-bed latch: Position a. Turn the latch clockwise to move the pin out of the slot. b. Slowly release the latch until it engages with the hole in This procedure tells you how to move the split bed to the the latch plate.

  • Page 29: Start The Machine

    WX15V / WX20V Operation Log Splitter 6.9 Start the Machine 6.11 Emergency Stop 1. Stop the tractor. WARNING! For instructions, see the tractor manufacturer's manual. 2. Apply the tractor parking brake. Before you start the machine, read and understand all the safety information in this 3.
  • Page 30 WX15V / WX20V Operation Log Splitter CAUTION! Do not split more than one log at one time. A log can be pushed out of the machine and cause personal injury. CAUTION! Do not split wood across the grain. Some types of wood can burst or splinter.
  • Page 31 WX15V / WX20V Operation Log Splitter 9. Pull the splitter control to the Retract position, and then 9. Lift the splitter control to the Retract position, and then release it. release it. The wedge continues to retract. When the wedge gets to The wedge continues to retract.

  • Page 32: Transport

    Transport safety and transport of machinery. Select the applicable procedure to prepare the machine for Before taking a WX15V or WX20V on a public roadway, make sure that the tractor has the necessary lights, transport. reflectors, and markings, and that they are in good 7.2.1 The Machine is Attached to a Tractor...

  • Page 33: Storage

    WX15V / WX20V Storage Log Splitter 8. Storage At the end of the season or when the machine is not going to 8.3 Remove the Machine from be used for long period of time, store the machine correctly to Storage prevent damage.

  • Page 34: Service And Maintenance

    WX15V / WX20V Service and Maintenance Log Splitter 9. Service and Maintenance Regular preventive maintenance can improve performance and • Keep a fire extinguisher and first aid kit available at all prolong the life of the machine. Machine maintenance is your times.

  • Page 35: Hydraulic System Maintenance Safety

    WX15V / WX20V Service and Maintenance Log Splitter 9.2 Hydraulic System Maintenance • Before you apply pressure to the hydraulic system, make sure that all the connections are tight, and the hoses, tubes, Safety and fittings are not damaged. • Immediately replace a hydraulic hose that shows signs WARNING! of swelling, wear, leaks, or damage.

  • Page 36: Maintenance Schedule

    WX15V / WX20V Service and Maintenance Log Splitter 9.3 Maintenance Schedule Do the maintenance tasks at the specified time or hour interval, whichever comes first. Task 8 hours or daily 100 hours or annually Reference See page 39. Torque all the fasteners to the correct specifications.

  • Page 37: Troubleshooting

    10. Troubleshooting If you find a problem that is difficult to solve, even after reading WARNING! this information, please contact your local Wallenstein dealer or Wallenstein Equipment. When you contact someone, please Before troubleshooting, read and understand the have the serial number of your product available. To find the Service and Maintenance Safety on page 34.

  • Page 38: Specifications

    WX15V / WX20V Specifications Log Splitter 11. Specifications For available accessories, go to WallensteinEquipment.com. 11.1 Machine Specifications Parameter WX15V WX20V Compatibility Tractor Split force 15 ton 20 ton Cylinder stroke 19" (48 cm) 24" (61 cm) Cylinder diameter 3.5" (9 cm) 4"...

  • Page 39: Bolt Torque

    WX15V / WX20V Specifications Log Splitter 11.3 Bolt Torque Imperial Bolt Torque Specifications Torque IMPORTANT! If you replace hardware, use fasteners Bolt of the same grade. SAE Gr. 2 SAE Gr. 5 SAE Gr. 8 Diameter lbf•ft N•m lbf•ft N•m lbf•ft...

  • Page 40: Hydraulic Fitting Torque

    WX15V / WX20V Specifications Log Splitter 11.4 Hydraulic Fitting Torque Hydraulic Fitting Torque Specifications Tighten flare-type tube fittings: Hex size Tube size across Flats from finger 1. Check the flare and flare seat for defects that might flats Torque tight cause leaks.

  • Page 41: Limited Warranty

    Warranty Log Splitter 12. Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the opera�ng and maintenance instruc�ons supplied with the unit.

  • Page 42: Index

    WX15V / WX20V Index Log Splitter 13. Index Information labels ������������������������������������������������������������ 6 Maintenance labels ���������������������������������������������������������� 6 Accessories ��������������������������������������������������������������������������� 3 Mandatory action labels ��������������������������������������������������� 6 Adjust, detent release ��������������������������������������������������������� 36 Product labels ������������������������������������������������������������������ 6 Replace a safety label ��������������������������������������������������� 13 Safety labels ������������������������������������������������������������������ 13 Blockage, remove ���������������������������������������������������������������...
  • Page 43 WX15V / WX20V Index Log Splitter Transport ����������������������������������������������������������������������������� 32 Prepare for ��������������������������������������������������������������������� 32 Safe condition ����������������������������������������������������������������������� 9 Safety����������������������������������������������������������������������������� 32 Safety ������������������������������������������������������������������������������������ 7 Troubleshooting ������������������������������������������������������������������ 37 Alert symbol ��������������������������������������������������������������������� 7 Types of labels ���������������������������������������������������������������������� 6 Equipment guidelines ������������������������������������������������������ 9 Hydraulic system Maintenance �������������������������������������������������������������...
