ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screw-
driver .

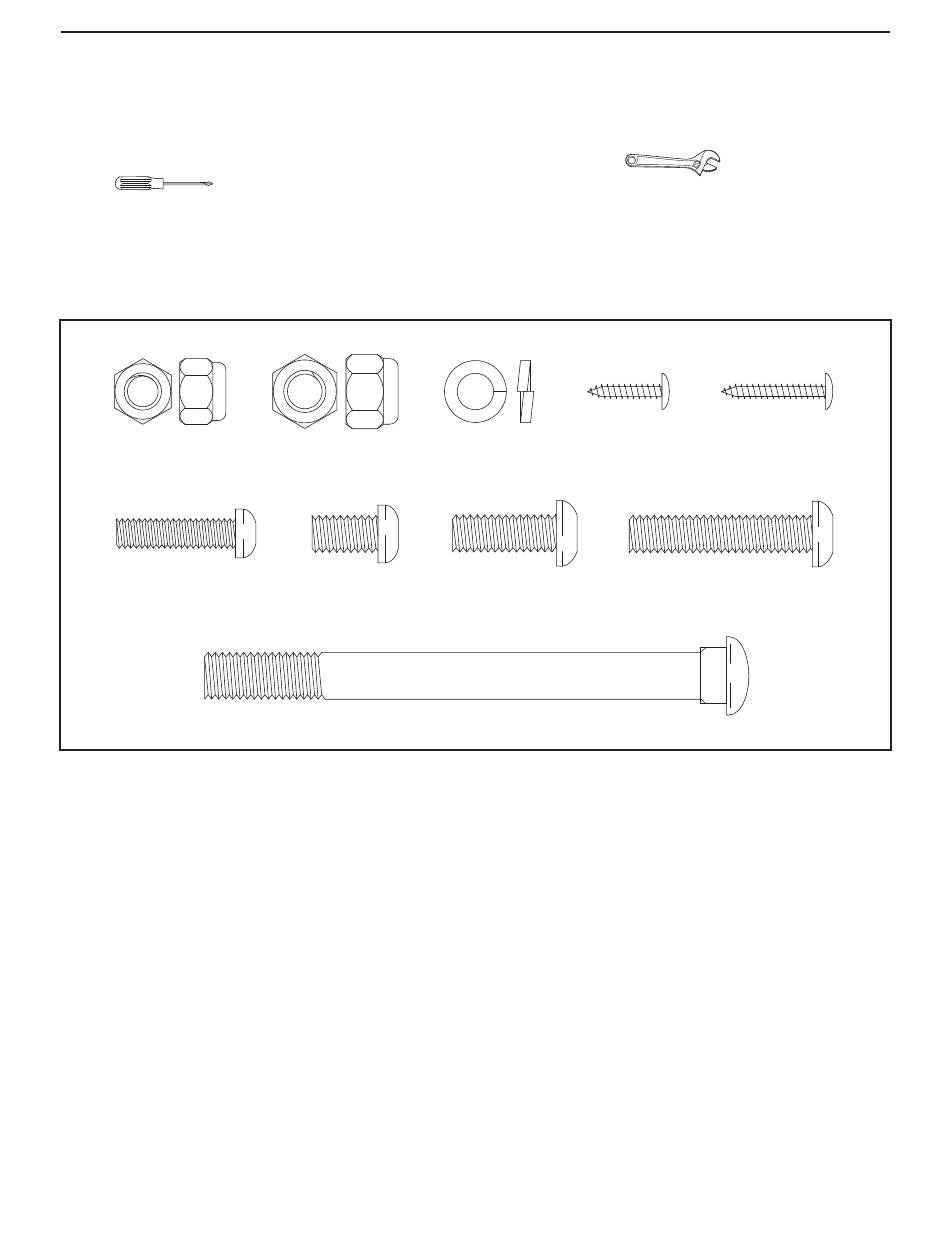

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached. If a part is not in
the parts bag, check to see if it has been pre-attached.
M8 Nylon M10 Black Nylon M8 Split M4 x 16mm M4 x 22mm
Locknut (10)–6 Locknut (63)–4 Washer (70)–4 Screw (66)–6 Screw (21)–2
M8 x 22mm Button M8 x 39mm Button
M6 x 25.4mm Button M8 x 14mm Button
Screw (33)–1 Screw (49)–1 Screw (74)–4 Bolt (64)–2
M10 x 112mm Carriage Bolt (65)–4
5
