ACCESSORY INSTALLATION
WIEGAND INPUT MODULES
The TEC OPTIONALLY can be equipped with two or
four internal card reader inputs. The card reader modules work
with 26 or 30 bit Wiegand format bit streams. There are no LED
drive indicator signals on the 4 door reader. Belden 9941 is
used to connect readers to the card reader modules.
Reader 1 Common
(Black)
Reader 1 LED
(Brown)
Reader 1 D0
(Green)
Reader 1 D1
(White)
Reader 1 Power
(Red)
Reader 2 Common
(Black)
Reader 2 LED
(Brown)
Reader 2 D0
(Green)
Reader 2 D1
(White)
Reader 2 Common
(Red)
1
2
3
4
READER 2 CONTROLS OUTPUT RELAY
ON TBS-15 & TBS-16 ONLY
READER 3 CONTROLS K2 OUTPUT RELAY ONLY
SEE SECTION 12.0 ENTRANCE CONTROL
READER 4 CONTROLS K2 OUTPUT RELAY ONLY
SEE SECTION 12.0 ENTRANCE CONTROL
WIEGAND
BARIUM
FERRITE
OR
PROXIMITY
insert or key readers are 5 volts. Many RF, PROXIMITY and INFRARED readers are 12 volts. If the
readers and the card option were purchased together, this has already been configured. If not, see the
diagram to select the appropriate card reader voltage setting. Check with the manufacturer of your
card reader for correct voltage selection.
Note that the card reader and relay assignments cannot be mixed. Card Reader 1 will
ALWAYS control the first relay. This is the relay on the terminal barrier strip to the left of the mother
board. Card Reader 2 will ALWAYS control the 2nd relay output on the terminal barrier strip to the left
of the mother board. The maximum distance for WIEGAND readers is 500 feet. Belden #9941 or
close equivalent must be used for card reader signals. The maximum distance for RF, PROXIMITY, or
INFRARED readers is 100 feet, using Belden #9941. For distances up to 500 feet use Belden #
83656, or close equivalent.
The maximum power consumption available for using on-board power supply is 125 ma. per
reader. For readers with greater power requirements, an external power supply MUST be used.
(OPTIONAL)
(OPTIONAL)
READER 1 CONTROLS OUTPUT RELAY
ON TBS-13 & TBS-14 ONLY
Jumper selection is typical for all 4
reader modul e s
.
CARD READER VOLTAGE SELECT
2
BARIUM
FERRITE
OR
PROXIMITY
WIEGAND
For older style readers still in use, above are
the jumper settings for voltage select.

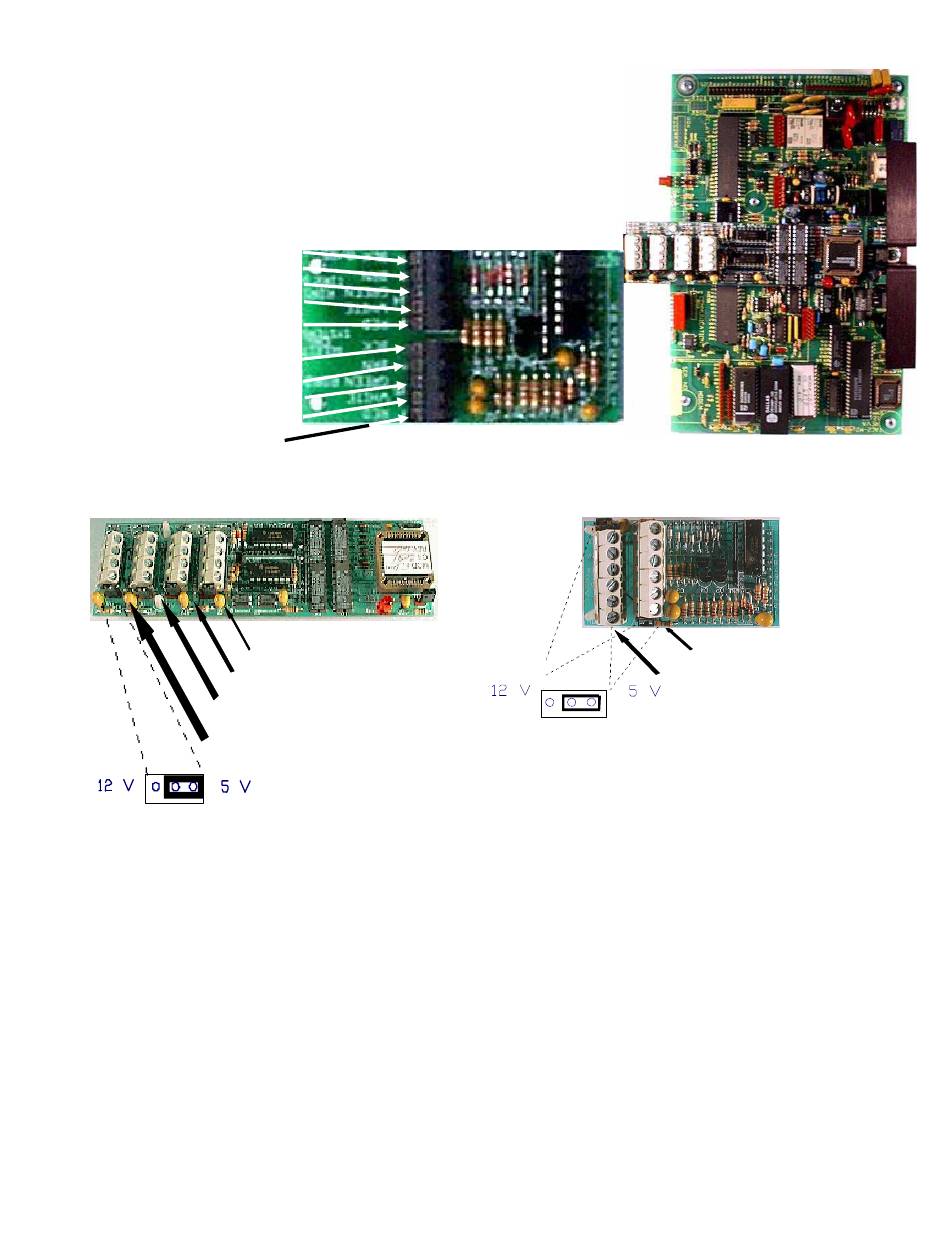

There are jumpers on the card reader board to select 5 or
12 volts for various reader types. Many WIEGAND swipe,
1
READER 1 CONTROLS OUTPUT RELAY
ON TBS-13 & TBS-14 ONLY
READER 2 CONTROLS OUTPUT RELAY
ON TBS-15 & TBS-16 ONLY
Jumper selection is typical for both
reader modules
.
