Summary of Contents for Select Engineered Systems SAT3

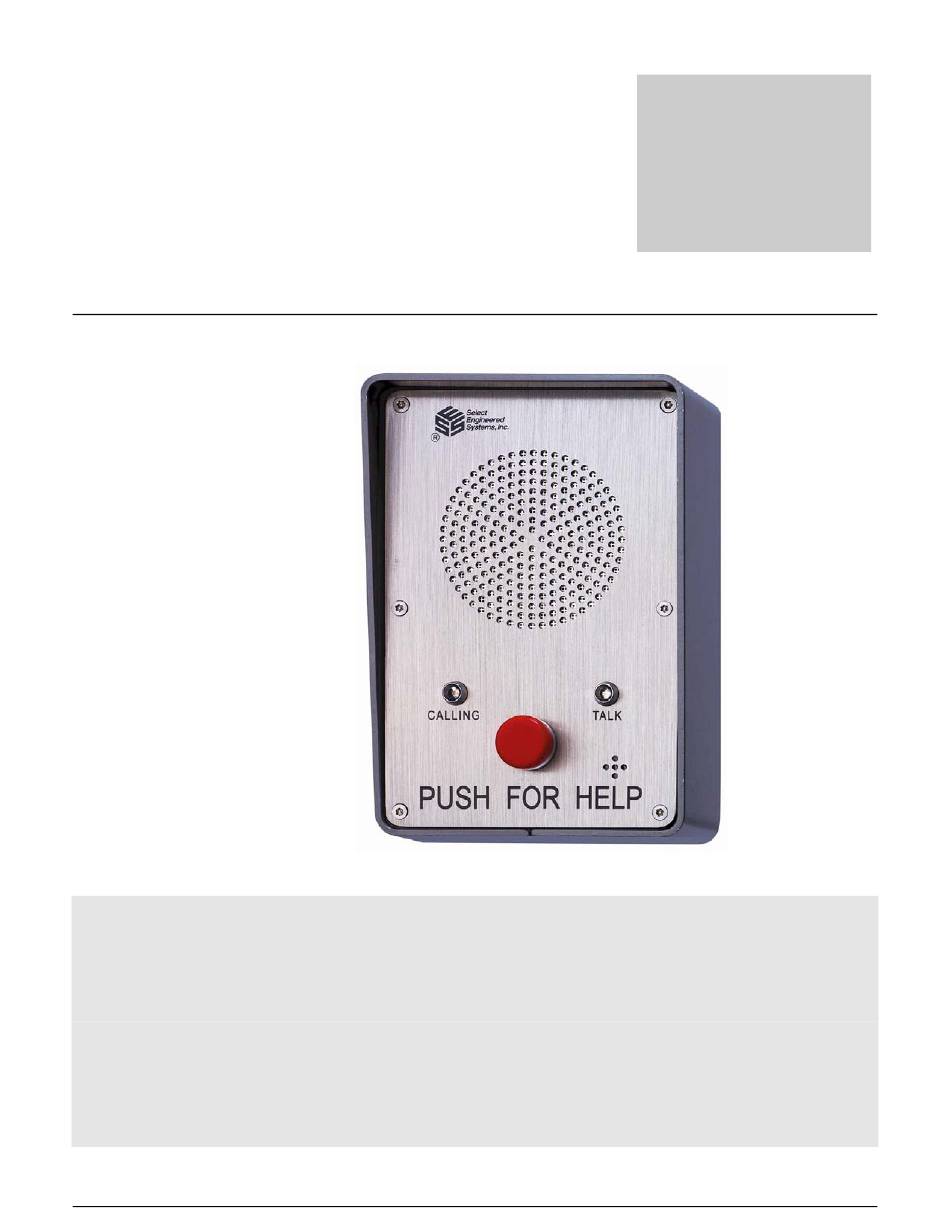

- Page 1 S A T 3 U S E R I N S T A L L E R G U I D E SELECT ENTRY SYSTEMS User / Installer Guide Dec 08 SAT3 SAT3/D...
- Page 2 I N S T A L L E R G U I D E V 1 . X S elf Identifying A utomatic T elephone 3 & 3/D © Select Engineered Systems, Inc. 12/08 7991 West 26 Avenue Hialeah, Florida 33016 Phone 305.823.5410• Fax 305.823.5215 www.selectses.com...
-
Page 3: Table Of Contents
Change SAT3 back to Original Factory Settings C H A P T E R Converting SAT3 to Ring Down PROGRAMMING Set SAT3 To Call a Central Station HOW TO: Program a SAT3 C H A P T E R Get out of program mode... -
Page 4: Introduction
It can dial up to 9 additional 16-digit phone numbers. After dialing, it permits two-way voice communication without having to hold a handset (Hands Free). The amount of time that you can talk on the SAT3 before it disconnects is programmable from 1 to 9 minutes, or 20 minutes. -
Page 5: Sat3 Features, Continued
This function, (when programmed to do so), will automatically dial the next number in it’s memory, if the SAT3 does not send it’s 4 to 8 digit account number. SAT3 keeps doing this until it does send the account number, or until it has dialed all the numbers (up to 10 total) programmed into it. - Page 6 G U I D E SAT3 Features, continued. Central Station signals. This allows the SAT3 to automatically call a central station using the SIA “fast” format (300 Baud) for off-site monitoring, using central station digital receivers with two-way voice capability.
-
Page 7: Programming
(OptSAT3Prgm), or it can be programmed with an ordinary Touch-Tone™ telephone. The SAT3 is designed to answer immediately and prompt (with a beep) for the 4 digit password. SAT3 comes from the factory with all 4 digits set to 7 (7777 is the password). -
Page 8: Put In A Single Phone Number
10, followed by 9 # the phone number, and Example: To make the SAT3 dial 555 -1212, from behind a PABX that uses 9 to get an outside line, and requires a pause, key in 10 9 # 555 1212... -
Page 9: Program Pause Time
SAT3 Programming Cont. How To Program Pause Time Duration. SAT3 can be set to pause from 1 to 9 seconds when the # key is pressed during programming. This is useful for overseas exchanges that might require longer pauses. ☺ After getting into program mode, (see Pg. 4) use your Touch-Tone™ phone to key... -
Page 10: Set Sat3 Account Confirm
☺ After getting into program mode, (see Pg. 4) use your Touch-Tone™ phone to key in 10 followed by the location number, followed by the phone number, and Example: To make the SAT3 call 555 -1212 in the first location and 1 800 342- 5737 in the second location, key in 10 5551212 11 18003425737 Any number can be put in any location. -
Page 11: Specific Location
91 1 How To Change SAT3 Ring Time. SAT3 can be set to ring from 10 to 90 seconds before it quits trying and hangs up. Ring Time is in 10-second increments. The factory default Ring Time is 40 seconds. -
Page 12: Change Sat3 Password
How To Change SAT3 Back To Original Factory Settings. SAT3 can be set back to original factory settings. This is useful if you think you may have mis-keyed a function, or if you did not realize the consequences of some of your choices. -
Page 13: Converting Sat3 To Ring Down
SAT3 Programming Cont. How To Change SAT3 To Ring Down. SAT3 can be set to function as a ring down type unit. The factory default is Ring Down mode = OFF. After getting into program mode, (see Pg. 4) use your Touch-Tone™ phone to key in... -
Page 14: Sat3 Operation
CALLING light will turn on. There will be a brief dial tone to let the user know SAT3 is starting the call. The SAT3 MUST sense a dial tone within 6 seconds, or it will hang up, and not automatically re-dial again. -
Page 15: How To Remotely Call A Sat3
. Begin talking. SAT3 Central Station Operation The SAT3 has a built-in data modem that will call a Central Station using the universal SIA 1 (“Fast”) protocol. Placing 2 pause commands (#, #) in front of the phone number will cause the modem to dial the number and connect with the Central Station equipment. -
Page 16: Sat3 Modem Operation
G U I D E SAT3 Modem Operation The SAT3 has a built-in data modem that will connect at 300 or 1200 Baud. Any modem terminal program that can call at 300 or 1200 Baud can call the SAT3. The SAT3 screen formatting emulates a VT-100 terminal. - Page 17 You will see the following screen, showing SAT3 firmware version and menu choices: I C O N K E Y Valuable Info Be Careful! Installers Note To key in SAT3 phone numbers (up to 10) press the 1 key and the Enter key. ☺ User Note SAT3 Feature...
- Page 18 SAT3 Phone number to dial in 1 location. (0) To key in the first number for the SAT3 to dial, press 0, (1 code location) then the phone number (up to 16 digits) then the Enter key. Everywhere the terminal screen prompts for a CR (Carriage Return) press the Enter key.
- Page 19 G U I D E SAT3 Modem Operation (Cont.) Menu 2 (Info Phone) is used only on the (optional) 2-button SAT3/D for dialing a single 16-digit number for further information or to dial a different location other than ones programmed into the 10 pre-programmed locations.
- Page 20 SAT3 Modem Operation (Cont.) Menu 3 controls relay choices for a related product, the SAT3R. Since the SAT3 does not support relay functions of any type, this menu may be ignored, as any choices selected will not affect operation of the SAT3.
- Page 21 I N S T A L L E R G U I D E SAT3 Modem Operation (Cont.) Menu 4 controls SAT3 System Parameters. These are: 1) Talk Time from 1 to 9 minutes, or 20 minutes. 2) Acknowledge Tone between 1 and 9.
- Page 22 S A T U S E R I N S T A L L E R G U I D E SAT3 Modem Operation (Cont.) Menu 5 controls: 1) Account ID from 0000 – 9999 2) Zone number from 0000 – 9999 3) Account cycle time in second increments from 10 -90 (Key in 1 to 9.)
-
Page 23: Installation
Using a wire nut connect the ground wire to a 16 gauge wire that is connected to a ground rod or a cold water earth ground. MAKE SURE THE SAT3, AND THE SAT3 BACK BOX ARE GROUNDED TO GOOD EARTH GROUND. -
Page 24: Adjusting Sat3 Audio
G U I D E Installation of SAT3 (Continued) Connect the RJ-11 cable to the RJ-11 jack on the SAT3. The RJ-11 cable must be attached to a standard telephone line with at least 25 ma of line current, or an analog port on a PABX switch having at least 24 volts and 25ma of line current. -
Page 25: Sat3 Mounting Template
S A T U S E R I N S T A L L E R G U I D E Installation of SAT3 (Continued) SAT3 Mounting Template 2.75” 1.5” 2.125” 1.5” Holes placement accurate for mounting SAT3 2.25” 2.75”... -
Page 26: Fcc Requirements
The SAT3 has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference in a residential installation. -
Page 27: Specifications
S A T U S E R I N S T A L L E R G U I D E SAT3 Specifications Signaling DTMF (50 msec tone bursts) Loop Current 25 ma minimum Relay Output: Dry contact relay 2A 48V maximum. -
Page 28: Troubleshooting Flow Chart
U S E R I N S T A L L E R G U I D E SAT3 Troubleshooting Flow Chart Properly Programmed SAT3 is plugged in to Analog Phone Line with 24-52 VDC Push Pg 11 and minimum 25 milli-amperes of current Button from phone line. -
Page 29: Quick Programming Guide
18 + Phone # 9 + * 19 + Phone # 10 + * Menu 2 (2 Phone number for optional SAT/D & SAT3/D) 21 + Phone # + * (Up to 16 digits, including pause characters) Menu 4 (System Control) - Page 30 I N S T A L L E R G U I D E “BETTER TECHNOLOGY MAKES BETTER SYSTEMS” Last Revision Date 12/08 Select Engineered Systems, Inc. 7991 West 26th Ave. Hialeah, FL 33016 Toll Free: 1-800-342-5737 In FL: 305-823-5410 Fax: 305-823-5215 http://www.selectses.com...
