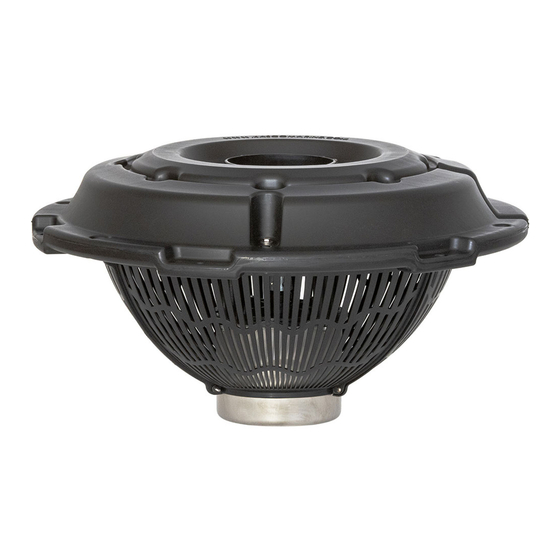

- Page 1 VFX Decorative Aerator 2400VFX, 3400VFX, 3400HVFX, 4400VFX, 4400HVFX Operation & Maintenance Manual 800 Deere Rd. Prescott, WI 54021 • 715.262.4488 • sales@kascomarine.com • www.kascomarine.com Document number 884170...
-
Page 2: Table Of Contents
During flotation operation, the water is pulled from 360 de- grees around the unit and from below the unit. The water is pulled upward and thrust through the flotation collar into the air. Your Kasco Marine aerator is ready for immediate use (after installation)�... -
Page 3: Important Safety
2400 – 4400 VFX DECORATIVE AERATOR MANUAL IMPORTANT SAFETY • Please read and follow these important instructions to help ensure your safety and the quality performance of your Kasco equip- ment� • Use caution when dealing with any electrical and/or moving equipment�... -
Page 4: Parts Included
Back to Contents 2400 – 4400 VFX DECORATIVE AERATOR MANUAL PARTS INCLUDED Description Qty Part # Aerator Float 242001 1/4”-20 x 3-1/2” Phillips pan head screw 251210 1/4” split washers 840537 1/4” (3/4” OD) flat washer 251300 1/4”-20 x 1-3/4” hex head screw 475630 Bottom screen section 361540... -
Page 5: Assembly Instructions
Back to Contents 2400 – 4400 VFX DECORATIVE AERATOR MANUAL ASSEMBLY INSTRUCTIONS 1� Rest the float on the 4 legs of the housing Align power cord with notch Align bolt holes with legs� 2� Lock washer goes between bolt and flat washer. Tighten down in 4 places. -
Page 6: Unit Installation Instructions
If your Kasco cord comes with a strain relief kit attached, attach the available link to the float-side knot in the mooring rope, as pictured here�... -
Page 7: Control Panel Installation
Once completed, power can be restored to the panel� Record the following data while the Aerator is operating in the water under load: Date installed: L1-L2 Volts Amps L1-N Volts Amps L2-N Volts Any unauthorized modifications to this control panel will void the UL listing and the Kasco warranty. 884170 / 2021.1.1... -
Page 8: C-25 Timer Control Instructions
IF THE GFCI FAILS TO RESET PROPERLY, DO NOT USE TIMER! CONTACT A QUALIFIED SERVICE TECHNICIAN! Failure to use the C-25 with Kasco Fountains will void the warranty and cause the Fountain to not be listed to UL and CSA standards via ETL�... -
Page 9: C85 / C95 Non-Metallic Control Panel Timer
Back to Contents 2400 – 4400 VFX DECORATIVE AERATOR MANUAL C85 / C95 NON-METALLIC CONTROL PANEL TIMER TIME CLOCK SETTING To set the current time, turn the inner dial clockwise. Do not set the time by rotating “outer” dial. Turn the min- ute hand or small plastic inner dial clockwise until the time of day on the outer dial is aligned with the triangle marker on the inner dial (two o’clock position). -
Page 10: Replacement Parts
Lock washer, 1/4” 840537 #14 x 1-1/4” long hex washer head 251250 Prop, 2400VFX 240595 Prop, 3400VFX, 3400HVFX 340595 Prop, 4400VFX, 4400HVFX 440600 Top disk, 2400VFX 241025 Top disk, 3400VFX, 3400HVFX 241035 Top disk, 4400VFX, 4400HVFX 241045 O-ring 990281 Sealing plug 990280... -
Page 11: Maintenance Recommendations
Seal replacement and all other repair services should be performed by Kasco Marine or a Kasco-trained Authorized Repair Center� Any alterations or changes made to Kasco units by an unauthorized source will void the warranty� This includes tampering with the unit, power cord, and/or control panel. -
Page 12: Repair
Kasco® Marine, Inc� warrants this aerator to be free from defects in material or workmanship under normal use and service (exclud- ing ropes, power cord, and propeller)� The Kasco Marine, Inc� obligation under this warranty is limited to replacing or repairing free of charge any defective part within the warranty period from the date of shipment�... -
Page 13: Non-Warranty Repairs
• Kasco Marine does estimates on repairs at the request of the customer� The request for estimate should be included in the letter that accompanies the returned unit and must include a daytime phone number and/or e-mail address� We will contact the customer with a total after the unit has been evaluated but before the work is performed�... -
Page 14: Troubleshooting Tips
“My Aerator turns itself off and back on without the timer and without tripping the GFI breaker.” (single phase units only) Each Kasco aerator has a Thermal Overload built in that will turn the unit off when it overheats� Once the unit has cooled down, it will start back up�... -
Page 15: Repair Contact Form
2400 – 4400 VFX DECORATIVE AERATOR MANUAL REPAIR CONTACT FORM • Kasco requires that all equipment sent for repair MUST be accompanied by this form and marked to Repairs attention� • Kasco is NOT responsible for shipping damage accrued in return shipment� •...
