Summary of Contents for Kasco EJ Series

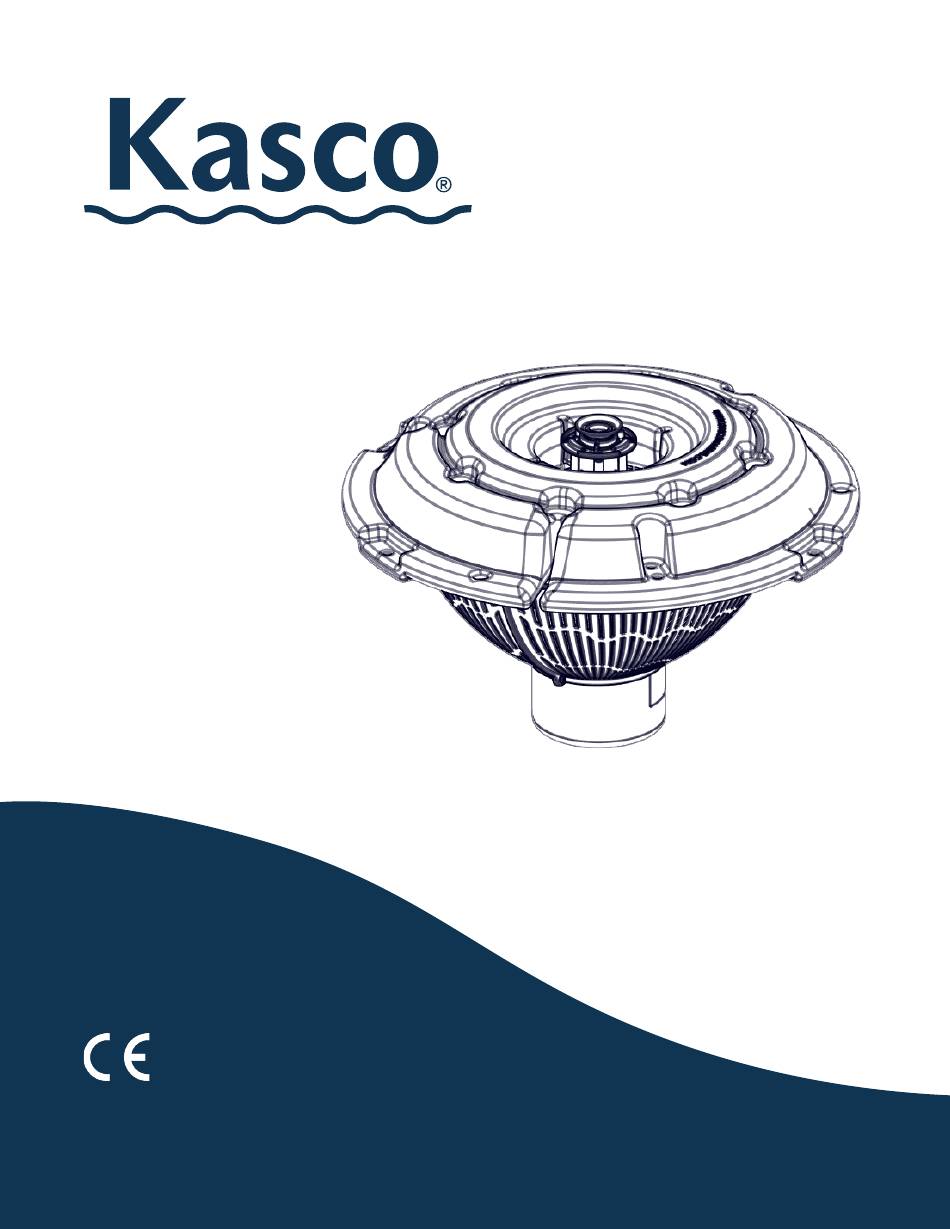

- Page 1 MOVING WATER FORWARD, SINCE 1968 EJ SERIES FOUNTAIN 2400EJ, 3400EJ Operation & Maintenance Manual Document number 884151 Document version 2022.1.0 800 Deere Rd. Prescott, WI 54021 | sales@kascomarine.com | kascomarine.com 3400 - 4400 J SERIES FOUNTAIN MANUAL...
-
Page 2: Table Of Contents
Troubleshooting Tips ������������������������������������������������������������������������������������������������������������10 Warranty ��������������������������������������������������������������������������������������������������������������������������������11 Other Repairs ������������������������������������������������������������������������������������������������������������������������12 Repair Contact Form ������������������������������������������������������������������������������������������������������������13 TOOLS AND SUPPLIES NEEDED • 7/16” socket and ratchet • 7/16” wrench • 11/32” wrench (for #8 fasteners) 7/16’’ socket 7/16’’ combination wrench 11/32” wrench SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 3: Safety First
Size (m²) Amps of Operation 2400EJF 230 / 1 / 50 1,000 38cm 3400EJF 230 / 1 / 50 1,350 45cm WIRE SIZE Cord Length 2400EJF 1.5mm² 1.5mm² 2.5mm² 2.5mm² 3400EJF 1.5mm² 1.5mm² 2.5mm² 2.5mm² SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 4: Parts Included
1/4 -20 x 1-3/4” Hex Head Bolt 475630 Bottom Screen Section 361540 1/4”-20 Nut 840536 #8 nut 771034 #8 flat washer 361543 #8 x 3/4” screw 361545 Mooring ropes (not pictured) 990700 Cable ties (not pictured) 415038 SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 5: Included Nozzles
5.8m 3400 3.5m 2.4m No nozzle installed. Comes installed. Linden (431232) Cypress (431236) Model Height Width Model Height Width 2400 2.3m 6.7m 2400 1.8m 4.5m 3400 2.7m 8.5m 3400 2.1m 5.5m 431259 451126 431258 451100 SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 6: Premium Nozzles (Not Included)
Mahogany (431345K) Mighty Oak (431335K) Model Height Width Model Height Width 2400 2.4m 5.5m 2400 2.1m 5.3m 3400 3.2m 7.9m 3400 2.9m 7.9m Contact Kasco Marine at sales@kascomarine.com or your local distributor for order information. SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 7: Assembly Instructions
Back to Contents ASSEMBLY INSTRUCTIONS Align power cord with this notch. SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 8: Nozzle Installation
Push the nozzle into the cone and twist to lock the 3 tabs into the nozzle plate. Premium Nozzle Installation Twist the nozzle into place and insert the quick release pin into one of the holes in the nozzle base plate. Quick release pin SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 9: Installation Instructions
(at least 3 feet from the float for every foot of water depth). Alternate Installation Anchor rope Secondary weight Normal water level Low water level High water level SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 10: Maintenance Recommendations
Sacrificial Anode All Kasco units include a sacrificial anode installed on the shaft to protect against corrosion and electrolysis. Replace the anode if it is reduced to half the original size or if it is white in color. Corrosion from electrolysis most commonly occurs in saltwater or brackish water, but it is important to check the anode in all installations at least every two to three months. -
Page 11: Troubleshooting Tips
Turn the unit off and disconnect from power source. • Remove the equipment from the water and inspect for debris or damage. • If there is build-up on the unit and motor can, remove the debris and clean the unit. SMALL EJ SERIES FOUNTAIN MANUAL... -
Page 12: Warranty
Also, register the unit online at: www.kascomarine.com. Once the warranty coverage has been established, the unit may be sent to any Kasco authorized repair center for evaluation and repair. Please call Kasco at 715-262-4488 prior to shipping to receive any updated information or a repair form, or call to locate your nearest authorized repair center. -
Page 13: Other Repairs
Please ship according to the instructions in the previous section. Kasco does estimates on repairs at the request of the customer. The request for an estimate should be included in the letter that accompanies the returned unit and must include a daytime phone number and/or email address. -
Page 14: Repair Contact Form
Back to Contents REPAIR CONTACT FORM • Kasco requires that all equipment sent for repair MUST be accompanied by this form and marked to Repairs attention. Kasco Marine • Unit should be cleaned before shipping. 800 Deere Road • Kasco is NOT responsible for shipping damage accrued in Prescott, WI 54021 return shipment.
