Summary of Contents for Kasco VFX Series

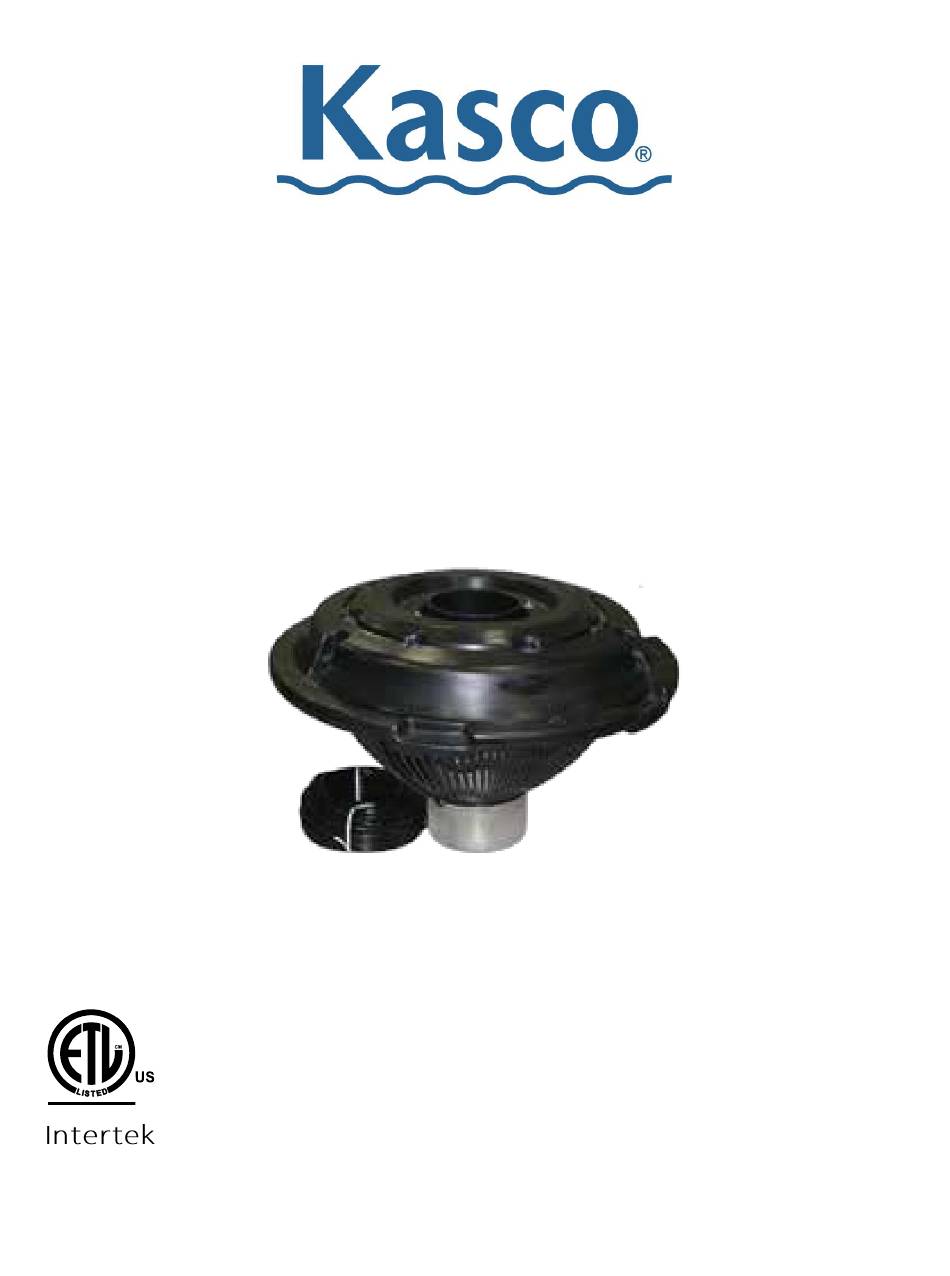

- Page 1 Owners Manual VFX Series Aerators 2400VFX, 3400VFX, 4400VFX 3400HVFX, 4400HVFX Kasco Marine, Inc. Manual Number 800 Deere Rd. 884170 Prescott, WI 54021 3020379 PH (715) 262-4488 ANSI/UL 778: 2016 Ed.6+R:22Feb2017 www.kascomarine.com Rev. 7-2020 CSA C22.2 #108: 2014 Ed.5...
-
Page 2: Important Safety Instructions
THANKS We at Kasco Marine, Inc. would like to both thank and congratulate you on your purchase of the VFX model aerator. We appreciate you choosing Kasco and for your purchase. Your decision to purchase Kasco’s VFX model Aerator will not disappoint you. The VFX model Aerator will be a great addition to your body of water. -
Page 3: Warranty
During flotation operation, the water is pulled from 360 degrees around the unit and from below the unit. The water is pulled upward and thrust through the flotation collar into the air. Your Kasco Marine aerator is ready for immediate use (after installation). -
Page 4: Unit Specs
Unit Specs Model Voltage Amps Lock rotor Control box connection Aerator connection amps single phase aerators 2400VFX 110-120 C-25 plug in Plug into C-25 3400VFX 110-120 C-25 plug in Plug into C-25 3400HVFX 208-240 Hardwire C-85 plug into or hardwire 4400VFX 110-120 11.3... -
Page 5: Parts Included
2400VFX, 3400(H)VFX and 4400(H)VFX Parts Included Item Part# Aerator Float 242001 1/4-20 x 3 1/2” 251210 Phillips Pan Head Screw 1/4” split washers 840537 1/4” (3/4” OD) Flat 251300 Washer 1/4 -20 x 1-3/4” Hex 475630 Head Bolt Bottom Screen 361540 Section 1/4”-20 Nut... - Page 6 2400VFX, 3400(H)VFX, 4400(H)VFX Assembly 1 . Rest the float on the 4 legs of the housing. Align power Align bolt holes cord with notch with legs . Lock washer goes between bolt and flat washer. Tighten down in 4 places 3 .
- Page 7 6 . Turn upright. Secure power cord to rope hole Without Strain Relief With Strain Relief 7. If ready to install in the pond, go to Installation instructions. Light Kits can also be installed at this time, go to Light kit instructions.
- Page 8 VFX Installation Instructions Use the ropes to position the aerator in the desired location in the pond/lake. Anchor the ropes or secure them to the shoreline so the ropes are free of slack, but not tight. To prevent twisting of the unit due to torque, you should place the anchor at least 3 feet from the float for each foot of depth (Ex.
-
Page 9: Control Panel Installation
Aerator is operating in the water under load: Voltage: L1-L2 ________ L1-N _________ L2-N _________ Amperage: L1 __________ L2 __________ Date installed _____/_____/_____ Any unauthorized modifications to this control panel will void the UL listing and the Kasco warranty. - Page 10 THE G.F.C.I. FAILS TO RESET PROPERLY, DO NOT USE TIMER! CONTACT A QUALIFIED SERVICE TECHNICIAN! Failure to use the C-25 with Kasco Fountains will void the warranty and cause the Fountain to not be listed to UL and CSA standards via ETL.
- Page 11 C85 / C95 non-metallic Control Panel Timer TIME CLOCK SETTING To set the current time, turn the inner dial clockwise. Do not set the time by rotating “outer” dial. Turn the minute hand or small plastic inner dial clockwise until the time of day on the outer dial is aligned with the triangle marker on the inner dial (two o’clock position).
-
Page 13: Maintenance Recommendations
Kasco Marine or a Kasco trained Authorized Repair soon as possible. ALWAYS UNPLUG THE UNIT BEFORE Center. Any alterations or changes made to Kasco units by an ATTEMPTING TO REMOVE CLOGS. unauthorized source will void the warranty. This includes tampering with the unit, power cord, and/or control box. -
Page 14: Warranty Policy
Some parts are essential for structural support during Kasco® Marine, Inc. warrants this aerator to be free from defects shipping and others, such as the power cord, are essential to in material or workmanship (except for the ropes, power cord, and properly diagnose potential causes of failure. -
Page 15: Troubleshooting Tips
If you are noticing these symptoms, the unit should be unplugged immediately because the Thermal All other warranty and repair inquiries should be directed to Kasco Overload will continue to turn on and off until it burns out and Marine, Inc. - Page 17 Sales@kascomarine.com Repair Contact Form ❖ Kasco requires all Repairs sent in MUST be accompanied by this form and marked to Repairs attention. (ex. Attn: Repairs) ❖ Repairs returned should include upper pump housing or wire basket for Aerators and De‐Icers. These parts protect the motor during shipping.
- Page 18 Registration Information Fill in the information below and keep for your records. Model # (Ex. 5.1VX)_______________________________ Serial # (Ex. 5101VX511725)______________________________ Purchase Date:_____________________ Purchased From:___________________________________ Registration Date: ___________________________...
