Installation and Operation Instructions
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician, qualified
in hot water boiler and heater installation and maintenance. Improper installation and/or operation could create
carbon monoxide gas in flue gases which could cause serious injury, property damage, or death. Improper
installation and/or operation will void the warranty.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other unit.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any unit.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
nearby phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency, or gas supplier.

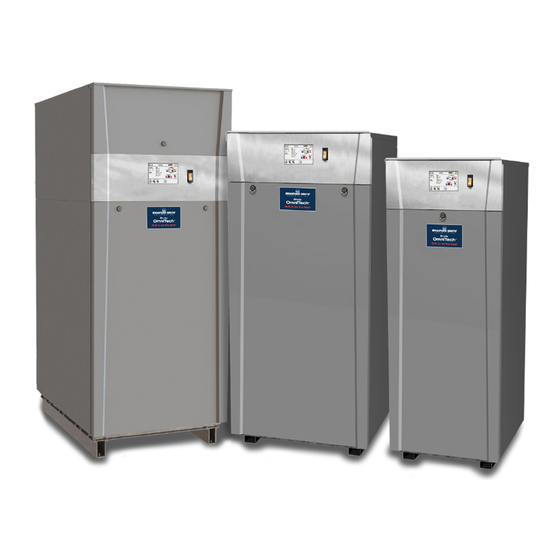

Installation and Operation Instructions for
Brute OmniTech
WARNING
Category II and IV Venting
with touchscreen controls
Boiler
Model BONH1250
1,250 MBTU/h
Model BONH1500
1,500 MBTU/h
Model BONH1750
1,750 MBTU/h
Model BONH2000
2,000 MBTU/h
Model BONH2500
2,500 MBTU/h
Model BOCH3000
3,000 MBTU/h
AVERTISSEMENT
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au minimum
le risque d'incendie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.
Ne pas entreposer ni utiliser d'essence ni d'autres
vapeurs ou liquides inflammables dans le voisinage de
cet appareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareils.
• Ne touchez à aucun interrupteur. Ne pas vous servir des
téléphones dansle bâtiment où vous êtes.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incendies.
L'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par le
fournisseur de gaz.
Document 1472C
®
Water Heater
Model BONV1250
1,250 MBTU/h
Model BONV1500
1,500 MBTU/h
Model BONV1750
1,750 MBTU/h
Model BONV2000
2,000 MBTU/h
Model BONV2500
2,500 MBTU/h
Model BOCV3000
3,000 MBTU/h
