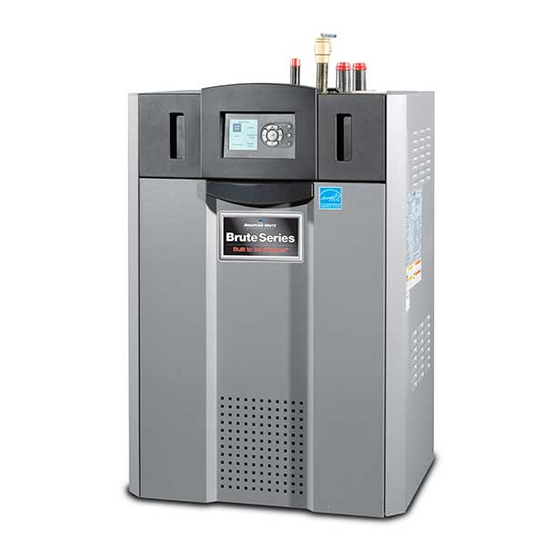

Modulating boiler sizes 285–850 mbtu/h, water heater sizes 150-850 mbtu/h, with touchscreen display
Hide thumbs Also See for Brute BNTH:
Table of Contents

Advertisement

Quick Links

Download this manual

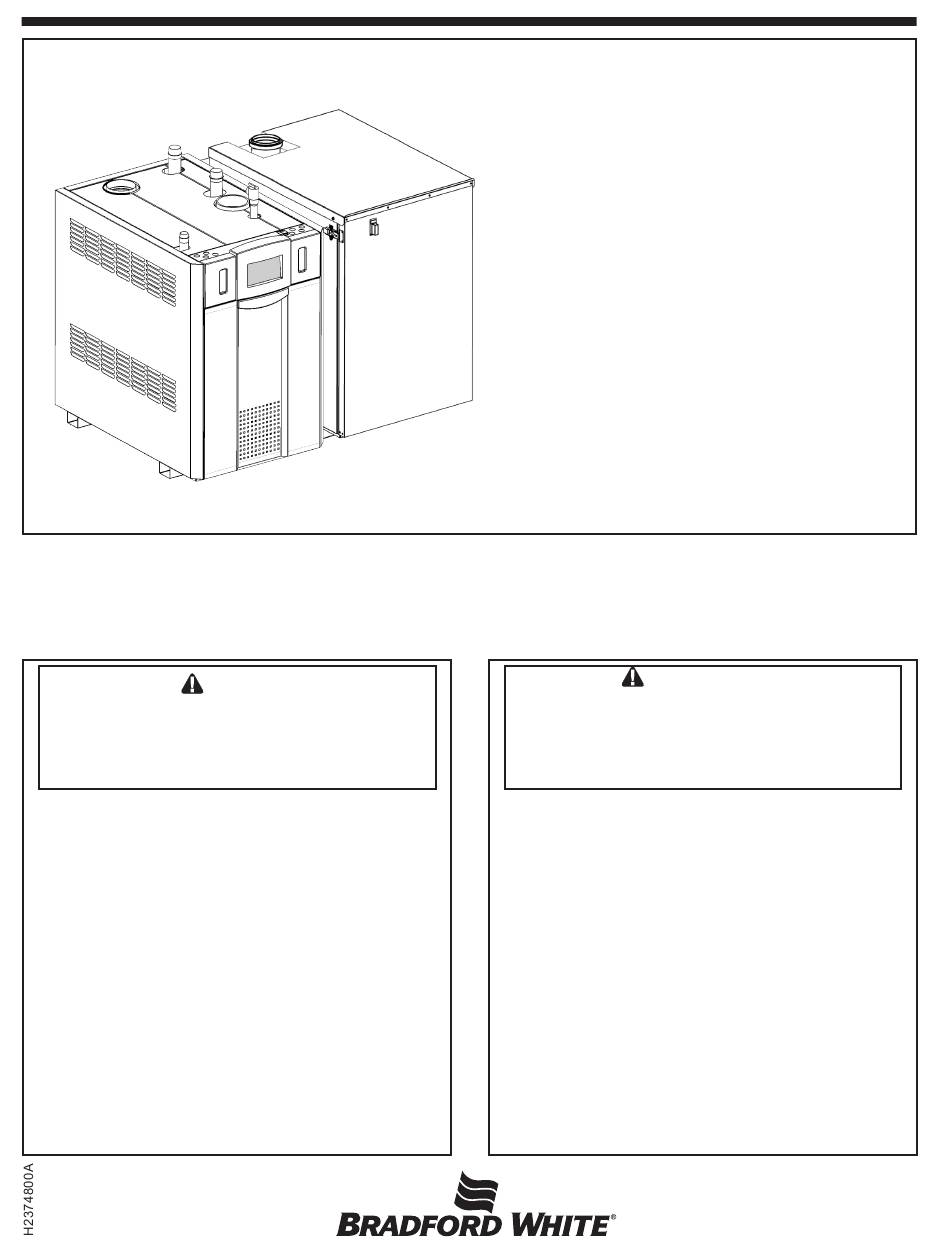

User's Manual
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,
qualified in hot water boiler and heater installation and maintenance. Improper installation and/or operation
could create carbon monoxide gas in flue gases which could cause serious injury, property damage, or
death. Improper installation and/or operation will void the warranty.
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
nearby phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency, or gas
supplier.
Outdoor
Indoor
WARNING
User's Manual for
Brute
with Touchscreen Display
Modulating Boiler
Model BNTH
Sizes 285–850 MBTU/h
Water Heater
Model BNTV
Sizes 150-850 MBTU/h
AVERTISSEMENT
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au
minimum le risque d'incendie ou d'explosion ou
pour éviter tout dommage matériel, toute blessure
ou la mort.
Ne pas entreposer ni utiliser d'essence ni
d'autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareils.
• Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones dansle bâtiment où vous
vous trouvez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le sservice des incendies.
L'installation et l'entretien doivent être assurés par
un installateur ou un service d'entretien qualifié ou
par le fournisseur de gaz.
Document 1345A
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brute BNTH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradford White Brute BNTH

Summary of Contents for Bradford White Brute BNTH

  • Page 1 User’s Manual Document 1345A User’s Manual for Brute with Touchscreen Display Modulating Boiler Model BNTH Sizes 285–850 MBTU/h Water Heater Model BNTV Outdoor Sizes 150-850 MBTU/h Indoor FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician, qualified in hot water boiler and heater installation and maintenance.

  • Page 2: Table Of Contents

    RADFORD HITE CONTENTS Familiarizing yourself to the Brute ........1 FOR YOUR SAFETY, PLEASE READ THIS BEFORE OPERATING ....2 What to Do If You Smell Gas ..........2 POUR VOTRE SÉCURITÉ, LISEZ AVANT DE METTRE EN MARCHE ......2 Que Faire si Vous Sentez une Odeur de Gaz ......2 Lighting the Unit ..............3 Turning Off the Gas to the Unit ..........3 Instructions de Mise en Marche ..........4...

  • Page 3: Familiarizing Yourself To The Brute

    BOILERS AND VOLUME WATER HEATERS Brute FAMILIARIZING YOURSELF TO THE The Bradford White Brute is offered in both Indoor and The only component and interior difference between the Outdoor models for all sizes, as both Boiler and Volume Water Indoor and Outdoor models is that all of the piping for the Heater.

  • Page 4: For Your Safety, Please Read This Before Operating

    Page 2 RADFORD HITE FOR YOUR SAFETY - PLEASE READ THIS BEFORE OPERATING WARNING If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury or loss of life. A. This unit does not have a pilot. It is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand.

  • Page 5: Lighting The Unit

    Brute Page 3 BOILERS AND VOLUME WATER HEATERS LIGHTING THE UNIT 1. STOP! Read the safety information listed above. 2. Set the thermostat to the lowest setting. 3. Turn off all electric power to the unit. This unit is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand.

  • Page 6: Instructions De Mise En Marche

    Page 4 RADFORD HITE INSTRUCTIONS DE MISE EN MARCHE 1. ARRÊTEZ ! Lisez les instructions de sécurité sur la portion supérieure. 2. Réglez le thermostat à la temperature la plus basse. 3. Coupez l’alimentation électrique de l’appareil. 4. Cet appareil est dote d’un dispositif d’allumage qui allumera automatiquement le brûleur.

  • Page 7: Shutting Down The Brute

    Brute Page 5 BOILERS AND VOLUME WATER HEATERS SHUTTING DOWN THE BRUTE It may sometimes be necessary to shut down the Brute. Here are the steps required to do this: 1. Switch off the main electrical disconnect switch. 2. Open the front cover and close the main manual gas valve. 3.

  • Page 8: Using The Touchscreen

    Page 6 Page 45 Brute RADFORD HITE HIGH EFFICIENCY COMMERCIAL BOILERS AND VOLUME WATER HEATERS Section 8 Using the Touch Screen e home screen shows a picture of the Brute controller. e color of the controller depends on the status of the Brute, as shown below. Color Status Control...

  • Page 9: Login

    Brute Page 46 Page 7 BOILERS AND VOLUME WATER HEATERS RADFORD HITE Screen Menu Icons (For some special safety-related functions, besides entering the correct password, the system will ask you to go through an additional “verifi cation” process. For more information, see the section on “Confi guration.”) When a password is necessary, the system will present the keyboard screen.

  • Page 10: Verification Process For Safety Parameters

    Page 8 Page 47 Brute RADFORD HITE HIGH EFFICIENCY COMMERCIAL BOILERS AND VOLUME WATER HEATERS Each time you press a key, the system will respond Press OK to continue. The system will ask you with a beep. If you are entering a password, an to login before you make a change.

  • Page 11: Checking Individual Parameters

    Page 48 Brute Page 9 BOILERS AND VOLUME WATER HEATERS RADFORD HITE Checking Individual Parameters From the ‘Home’ screen (Menu 9), press the icon for the controller. Menu 7. Safety Parameter Confi rmation For each group, check the list carefully. Press Yes if all of the parameters in the group have Menu 9.

  • Page 12: Setting The Date & Time

    Page 49 Brute Page 10 HIGH EFFICIENCY COMMERCIAL BOILERS AND VOLUME WATER HEATERS RADFORD HITE Setting the Date and Time on the System Display The display includes an internal clock, which keeps track of the date and time. This setting is important, because log entries for Lockouts and Alerts include time listings.

  • Page 13: The Configuration Menu

    Brute Page 11 BOILERS AND VOLUME WATER HEATERS Page 50 RADFORD HITE The Confi guration Menu is the gateway to the parameters that the factory, the installer, or the end user will need in order to setup, service, maintain, or adjust the unit. 8.7.1 There are 18 total Configuration Sub There are eighteen (18) items in the Confi guration...

  • Page 14: The Configuration Sub-Menus

    Page 51 Brute HIGH EFFICIENCY COMMERCIAL BOILERS AND VOLUME WATER HEATERS Page 12 RADFORD HITE 8.7.2 Setting Up 4-20 mA Setpoint The Confi guration Sub-Menus ( 18 ) 1 __ 18 The Central Heat Confi guration Menu (Menu 18) has 8.7.
  • Page 15 Brute Page 52 Page 13 BOILERS AND VOLUME WATER HEATERS RADFORD HITE 8.7.3 Outdoor Reset Confi guration Choose S2 (J8-6) 4-20 mA, then press OK At this sub-menu, confi rm that Central Heat is Enabled. Next, press onto the Maximum Outdoor Temperature, Minimum Outdoor Temperature, and Low Water Menu 20.
  • Page 16 Additional overrun time. 120VAC circuits may be required for the pumps. The Boiler Pump terminals (TB5 - max 7.4 FLA) are 200 Lafayette St. www.BradfordWhite.com Middleville, MI 49333 Warranty: (800) 531-2111 Litho in U.S.A. © Bradford White 1802 Document 1345A-BW...
