User's Manual
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,
qualified in hot water boiler and heater installation and maintenance. Improper installation and/or operation
could create carbon monoxide gas in flue gases which could cause serious injury, property damage, or
death. Improper installation and/or operation will void the warranty.
If the information in these instructions is
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency, or gas
supplier.

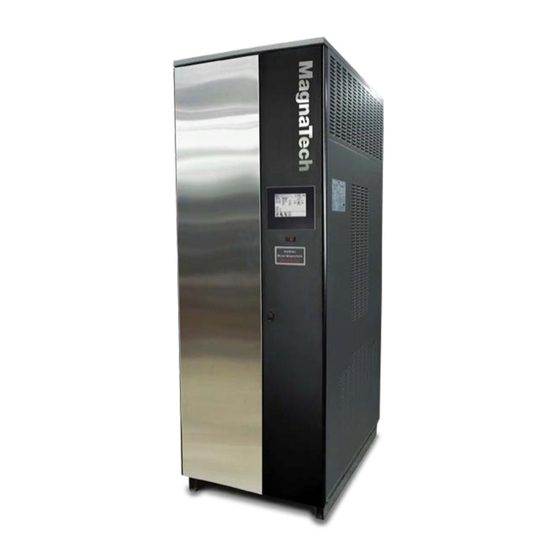

User's Manual for
Brute MagnaTech
Modulating Boiler
Model BMGH1600
1,599 MBTU/h
Model BMGH2000
1,999 MBTU/h
Model BMGH2500
2,499 MBTU/h
Model BMGH3000
3,000 MBTU/h
Model BMGH3500
3,500 MBTU/h
Model BMGH4000
4,000 MBTU/h
WARNING
Water Heater
Model BMGV1600
1,599 MBTU/h
Model BMGV2000
1,999 MBTU/h
Model BMGV2500
2,499 MBTU/h
Model BMGV3000
3,000 MBTU/h
Model BMGV3500
3,500 MBTU/h
Model BMGV4000
4,000 MBTU/h
AVERTISSEMENT
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au
minimum le risque d'incendie ou d'explosion ou
pour éviter tout dommage matériel, toute blessure
ou la mort.
Ne pas entreposer ni utiliser d'essence ou ni
d'autres vapeurs ou liquides inflammables dans
le à proximité de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareils.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones dans le bâtiment où vous vous trovez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le sservice des incendies.
L'installation et l'entretien doivent être assurés par
un installateur ou un service d'entretien qualifié ou
par le fournisseur de gaz.
Doc. 1294A
®
Advertisement
Table of Contents
Related Manuals for Bradford White Brute MagnaTech BMGH1600
Summary of Contents for Bradford White Brute MagnaTech BMGH1600
- Page 1 User’s Manual Doc. 1294A User’s Manual for Brute MagnaTech ® Modulating Boiler Water Heater Model BMGH1600 Model BMGV1600 1,599 MBTU/h 1,599 MBTU/h Model BMGH2000 Model BMGV2000 1,999 MBTU/h 1,999 MBTU/h Model BMGH2500 Model BMGV2500 2,499 MBTU/h 2,499 MBTU/h Model BMGH3000 Model BMGV3000 3,000 MBTU/h 3,000 MBTU/h...
-
Page 2: Table Of Contents
The MagnaTech Page 1 CONTENTS Familiarizing yourself with the MagnaTech .......1 FOR YOUR SAFETY, PLEASE READ THIS BEFORE OPERATING ....2 What to Do If You Smell Gas ..........2 Lighting the Unit ..............2 Turning Off the Gas to the Unit ..........2 POUR VOTRE SÉCURITÉ, LISEZ AVANT DE METTRE EN MARCHE ......3 Que Faire si Vous Sentez une Odeur de Gaz ......3... -
Page 3: For Your Safety
BRADFORD WHITE CORP . Page 2 Start-Up and Shut-Down Decal. Located on the inside of the right side door. FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 4: Pour Votre Sécurité, Lisez Avant De Mettre En Marche
TO TURN OFF GAS TO APPLIANCE Turn off all electric power to the appliance if service is to be performed. The MagnaTech Page 3 Open front doors. Set the thermostat to lowest setting. Turn off manual gas valve. Valve is off when valve handle is at a right angle to gas pipe. Close front doors. -
Page 5: Shutting Down The Magnatech
BRADFORD WHITE CORP . Page 4 SHUTTING DOWN THE MAGNATECH It may sometimes be necessary to shut down the MagnaTech. Here are the steps required to do this: 1. Switch off the main electrical disconnect switch. 2. Open the front access doors and close the main manual gas valve. -
Page 6: The Touch Screen And Indicators
The MagnaTech Page 5 CONTROLS AND INDICATORS Touch Screen Display Power Switch Each MagnaTech has one burner and one burner controller. A complete lead lag system can include up to eight MagnaTechs. After the system starts, the Touch Screen will automatically present the Home screen: The icon for each burner controller will appear in one of four colors:... -
Page 7: About Lockouts, Holds, And Alerts
BRADFORD WHITE CORP . Page 6 ABOUT LOCKOUTS, HOLDS, AND ALERTS The system responds to three kinds of trouble indications: • A”lockout” is caused by a serious problem that might involve a safety issue. Once the controller enters a lockout, the burners will shut down, and will not be allowed to run again until the cause of the problem is corrected, and you reset the control system. -
Page 8: Care, Inspection, And Service
électrique de la pompe. Fermer plutôt le robinet d’admission de gaz à l’extérieur de l’appareil. FOR SERVICE Contact your installing contractor, gas utility, Bradford White dealer, or check www. BradfordWhite.com for the nearest authorized representative in your area. 200 Lafayette St.
