Vancouver

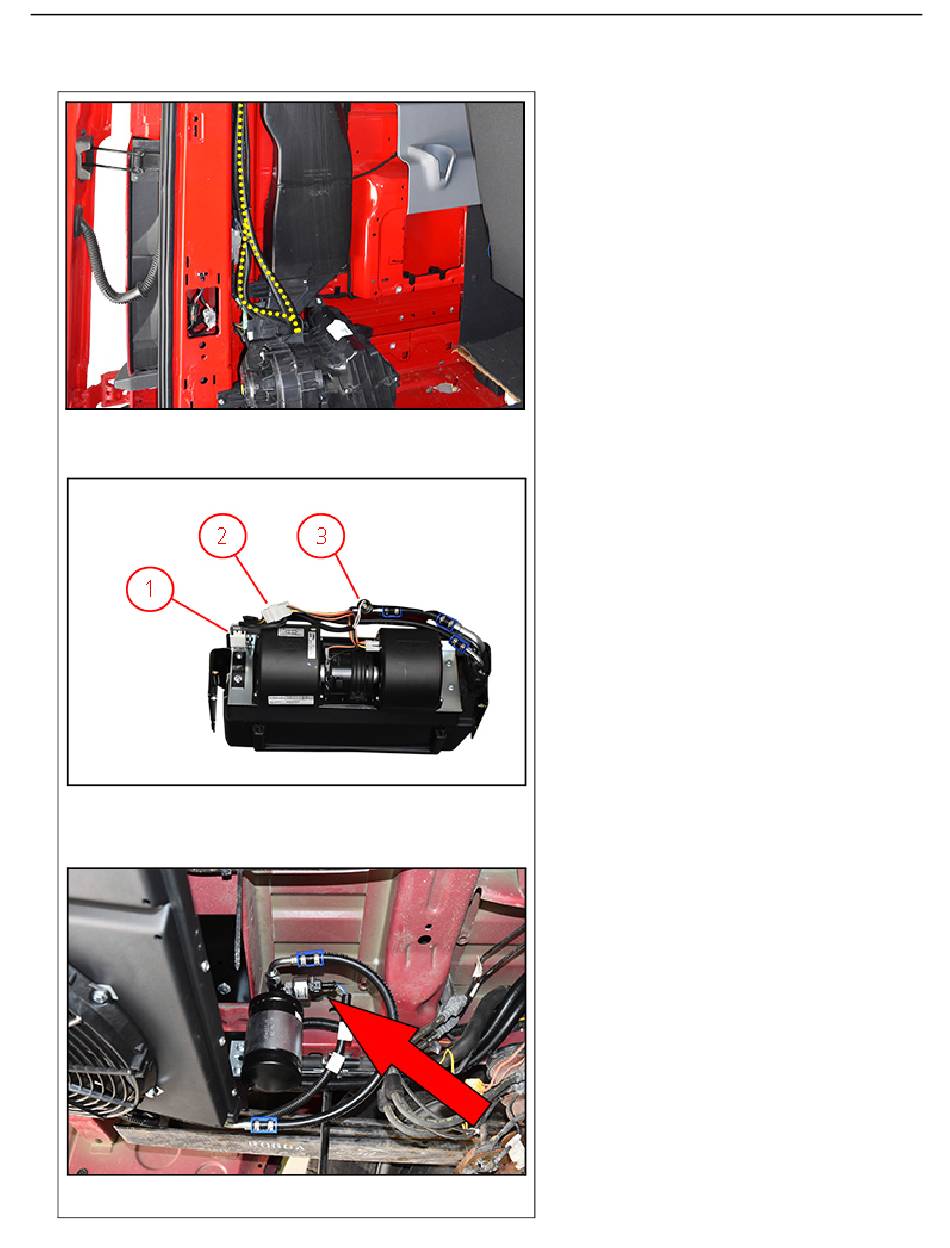

30. Route the wiring for the condenser fans (65),
HP/LP switch (64), and A/C compressor (66)
from the electrical boards, down the e-pillar
and through the hole in the floor.
31. Connect the following harnesses to the
electrical boards and to the Vancouver unit:
• LP switch (67)
• Thermostat (67)
• Blower fans (69)
32. Connect the filter/dryer connector.
32
Ford Transit
