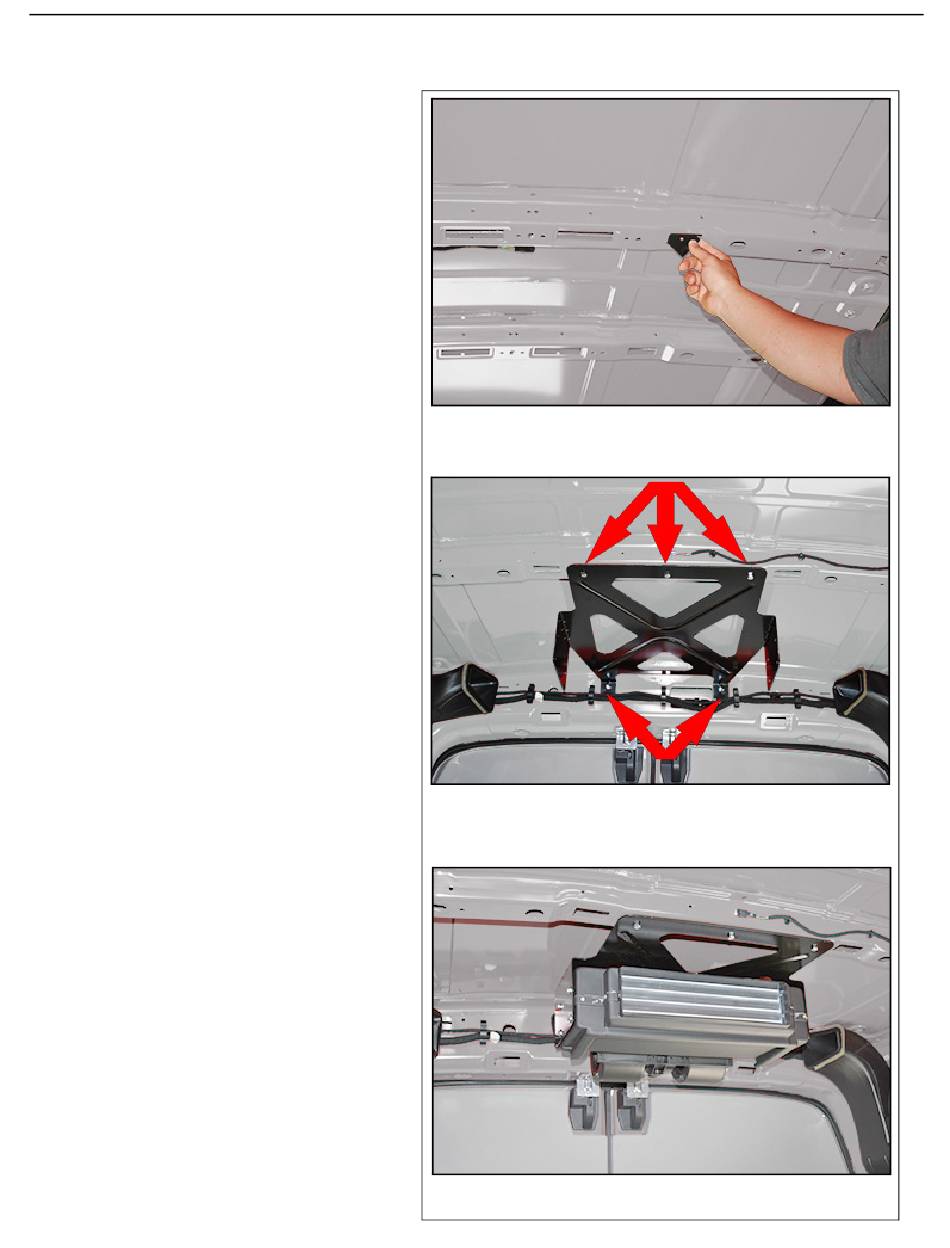

4. Insert the three threaded plates (19) into the
support ribs as shown.
5. Using three M8 bolts (42) and washers (43) in
the front and two M6 bolts (7) and nuts (21) in
the rear, install the upper bracket (1) to the
vehicle.
6. Mount the Vancouver assembly to the mounting
bracket using 8 bolts (3), nuts (21), and washers
(50).
