Webasto Transit Vancouver Extended Body Manual page 30

Vancouver

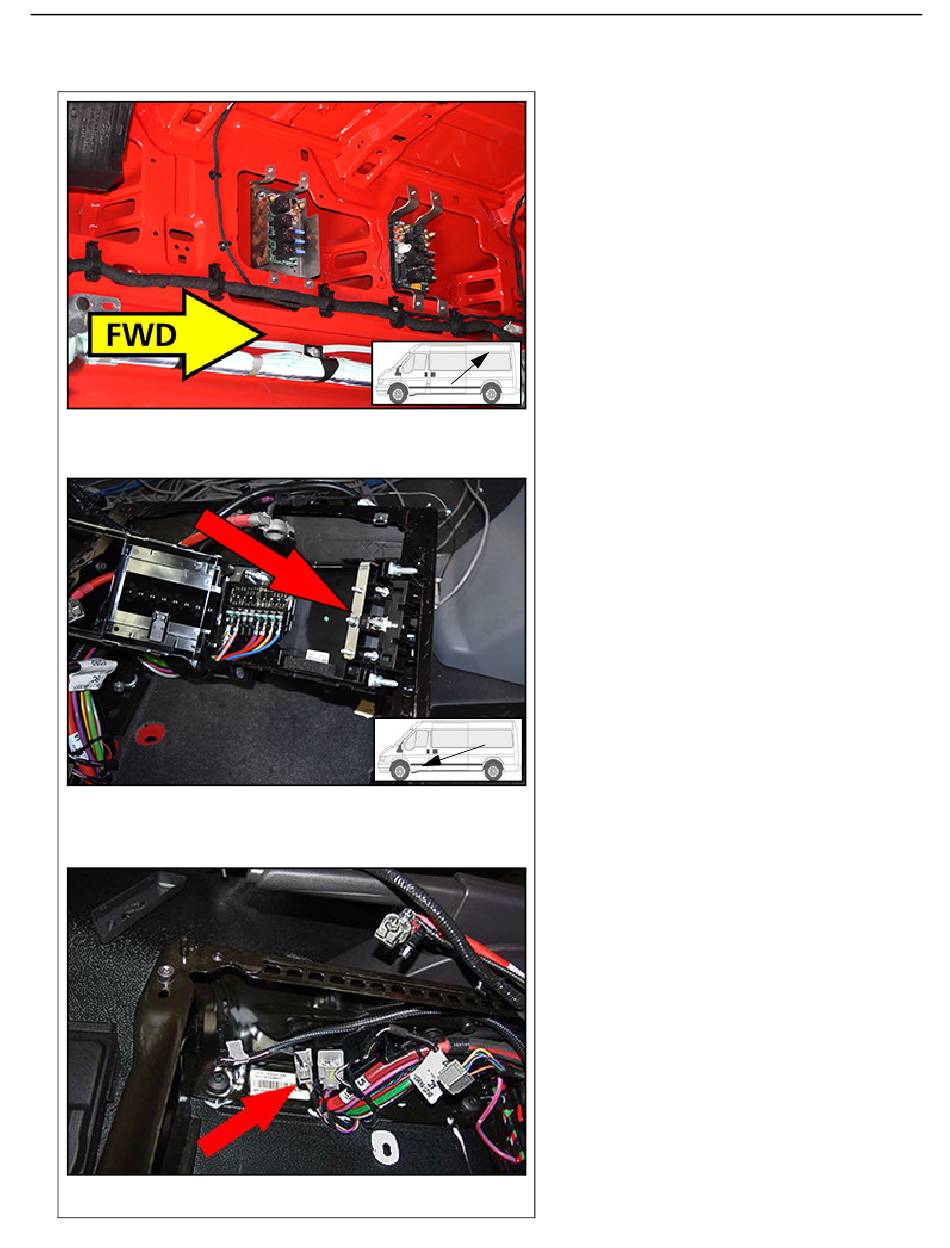

24. Remove the factory HVAC duct, if applicable.
Using the board bracket kits (46), install the
basic and extreme circuit boards (44, 45)
above the side-curtain air bags using self-
tapping screws.
25. Replace one of the 60 amp fuses with the
supplied 70 amp fuse (71). Reinstall the
power distribution center at this time.
NOTE: Due to vehicle variances some con-
nectors will be different than the one pic-
tured.
26.Connect the pink wire from the AC control
harness (58) to a 12V ignition circuit at the
open connector in the battery compartment.
30
Ford Transit
