- Page 1 Workshop Manual Transport Refrigeration Frigo Top 10 - 43 | Pordoi 2000 - 4000 English...
-
Page 2: Table Of Contents
6.3 Upload parameters to the hot key Error messages Technical support and customer service Disposal Annex 10.1 Technical data 10.2 (Typical) 12/24 VDC wiring and connections 10.3 Parameter description 10.4 Standard parameter settings Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 3: About This Document
Warranty and liability ■ Fresh produce delivery system: Cooling temperature can be selected between 0 – 40 °C Webasto shall not assume liability for defects or damage that are (32 – 104 °F). the result that the installation, operating instructions and as well as the instructions contained therein being disregarded. -

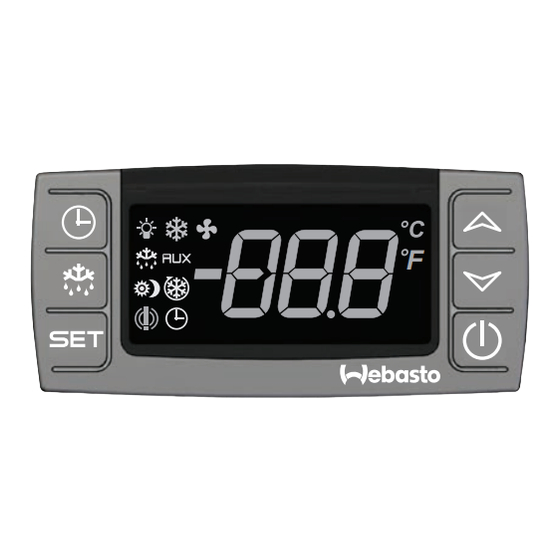

Page 4: General Description
"Set" button or wait for at least 15 seconds. The display with the temperature set-point flashes for several sec- onds. Then it shows the temperature measured in the cooling compartment. Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 5: Hours Of Compressor Operation
When no key is pressed for 3 s, the instrument goes back to nor- mal display. The user cannot reset the saved value. Only Dixell can reset it, using a special reset procedure. Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 6: Parameter Settings In 1St / 2Nd Level Menus
XPress “Set” + “Up” and hold for several seconds. XWait 15 s without pressing a key A set value is stored even when you exit the service menu by means of waiting 15 s without pressing a key. Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 7: Set And Reset The Service Interval
XPress “Set” to reset the service interval. – “rSt” starts blinking. – The clock symbol disappears. – Screen shows “SEr”. – After approx. 10 s the display turns back to the operating menu. Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 8: Change The Service Interval
■ Remove the hot key to stop operation. Download parameters to the control element XSwitch off the control element. XInsert a hot key in the slot at the back of the control element. Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 9: Upload Parameters To The Hot Key
Fig. 21: Upload indication Fig. 22: End of upload cycle XPress “SET” to finish the upload cycle. XSwitch off the control element. XRemove the hot key. XSwitch the system on again. Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 10: Error Messages
Technical support and customer service Do you have any technical questions or problem with the device? National phone numbers of our representatives are provided on the following website: www.webasto.com. Disposal When you eventually decommission the system, please dispose of the individual components properly at a recycling cen- tre. -
Page 11: Annex
8. Supply 12/24 V Max. 9. Digital input 16 A 10. Evaporator temperature sensor 1 2 3 4 5 11. Common 12. Room temperature sensor 13. Hot key plug Fig. 24: Wiring connections Frigo Top 10 - 43 | Pordoi 2000 - 4000... -
Page 12: Parameter Description
HY, LS, US, Ot, ALU and ALL have to be checked and modified if necessary). Display resolution (for °C only): in = 1 °C; dE = 0.1 °C; allows decimal point display. Frigo Top 10 - 43 | Pordoi 2000 - 4000... - Page 13 C-Y = runs with the compressor, ON during defrost; o-Y = continuous mode, ON during defrost; Fans delay after defrost: Time interval between end of defrost and evapora- 0 – 255 min tor fans start. Frigo Top 10 - 43 | Pordoi 2000 - 4000...
- Page 14 = activation of a defrost cycle; LHt = not enabled; Htr = kind of action inversion (cooling – heating) AUS = not enabled; FAn = not set it ES = energy saving. Frigo Top 10 - 43 | Pordoi 2000 - 4000...
- Page 15 On/Off key enabling: no = disabled. OFF = enabled. ES = not set it. First probe display. Second probe display. Software release for internal use. Parameter table code: read only. Frigo Top 10 - 43 | Pordoi 2000 - 4000...
-
Page 16: Standard Parameter Settings
Interval between defrost cycles (Maximum) length for defrost Start defrost delay Displaying during defrost MAX display delay after defrost Draining time First defrost after start-up Defrost delay after fast freezing Frigo Top 10 - 43 | Pordoi 2000 - 4000... - Page 17 10.4.7 Other Refrigerant Program level Label Description R134 R134a with defrost R404A Kind of probe on/off key enabling Room probe display Evaporator probe display Software release … … … Map code Frigo Top 10 - 43 | Pordoi 2000 - 4000...
- Page 18 En documentos multilingües, se considera vinculante el texto en inglés. Puede encontrar el número de teléfono del país correspondiente en el folleto de centros de servicio de Webasto o en la página web del representante de Webasto en su país.
