Ford Transit

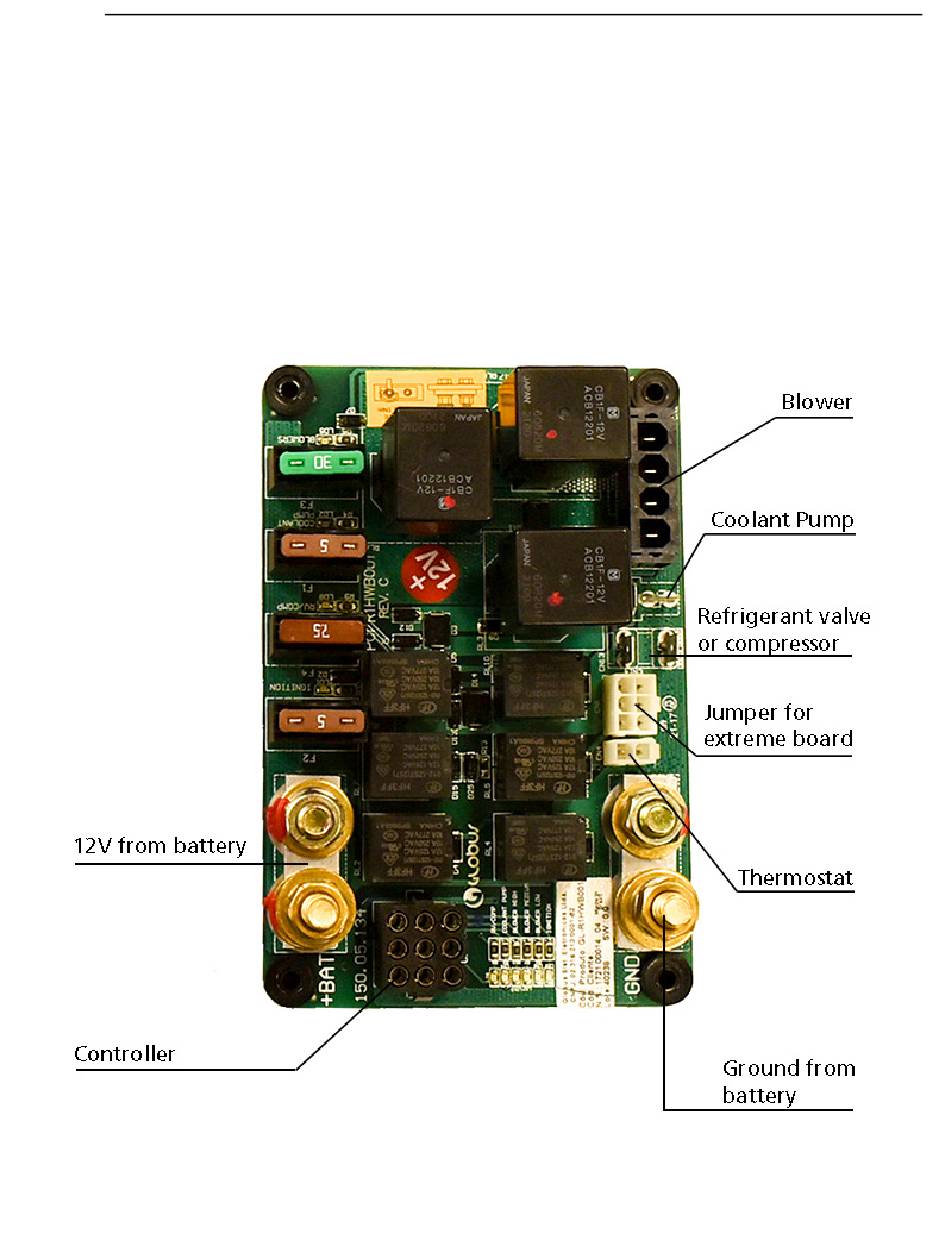

Basic Board Layout
Note: Some connections may not be used in this installation.
Note: The refrigerant valve/compressor connector can be plugged in two different ways. Be sure the
power wire is on the correct terminal. Refer to the wiring diagram for more information.
