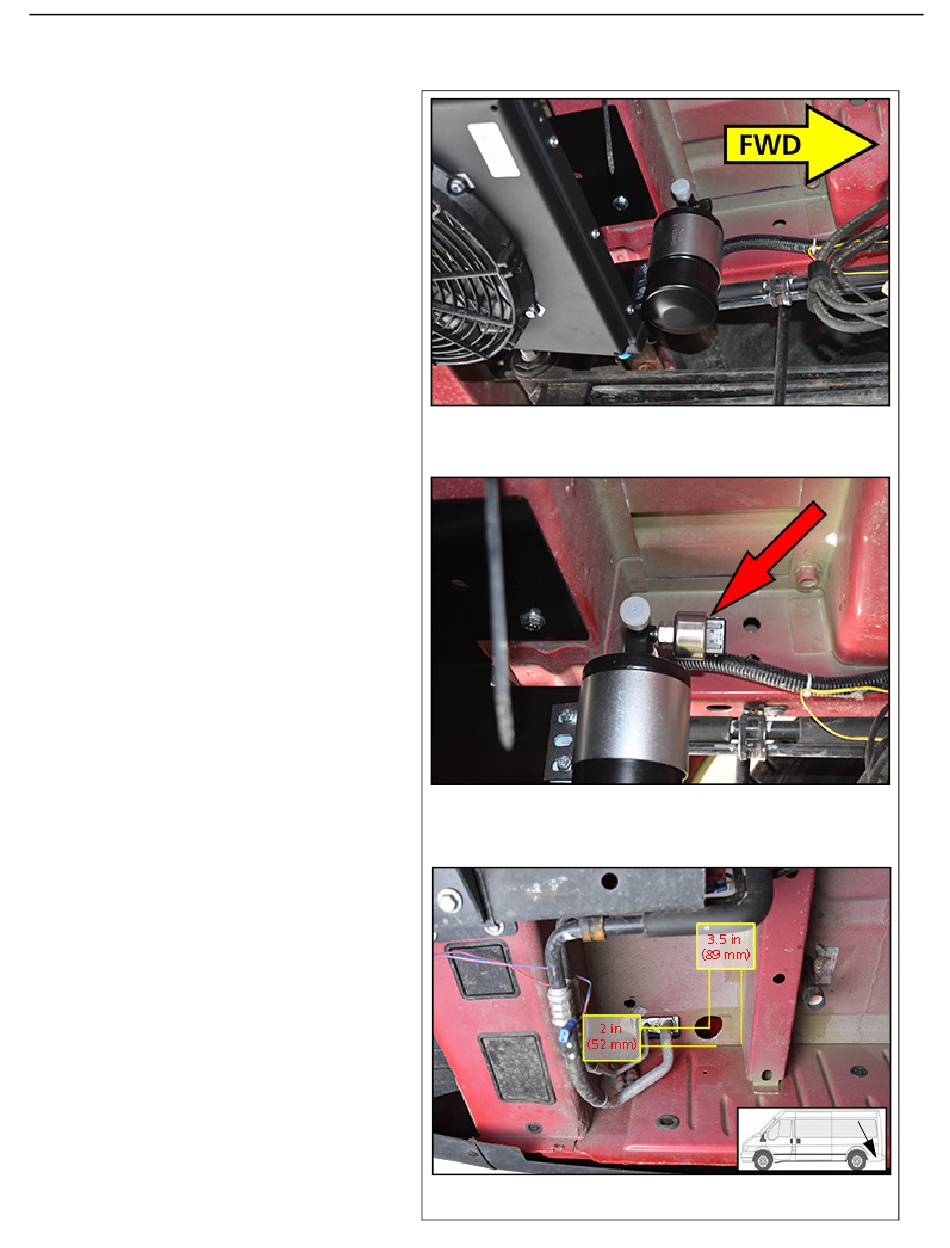

10. Mount the filter/dryer (5, 6) to the condenser
mount bracket using two M6 bolts and nuts (7,
21).
11. Mount the pressure switch (
dryer.
NOTE: The location of this hole is not critical,
but it must avoid the factory-equipped rear
HVAC module, if equipped.
12. Drill a 2 in (51 mm) hole approximately 2.5 in (64
mm) from the side wall, and approximately 3.5 in
(89 mm) from the chassis outrigger. Protect the
cut edge against corrosion and chaffing and install
a grommit (57).
53) to the filter/
