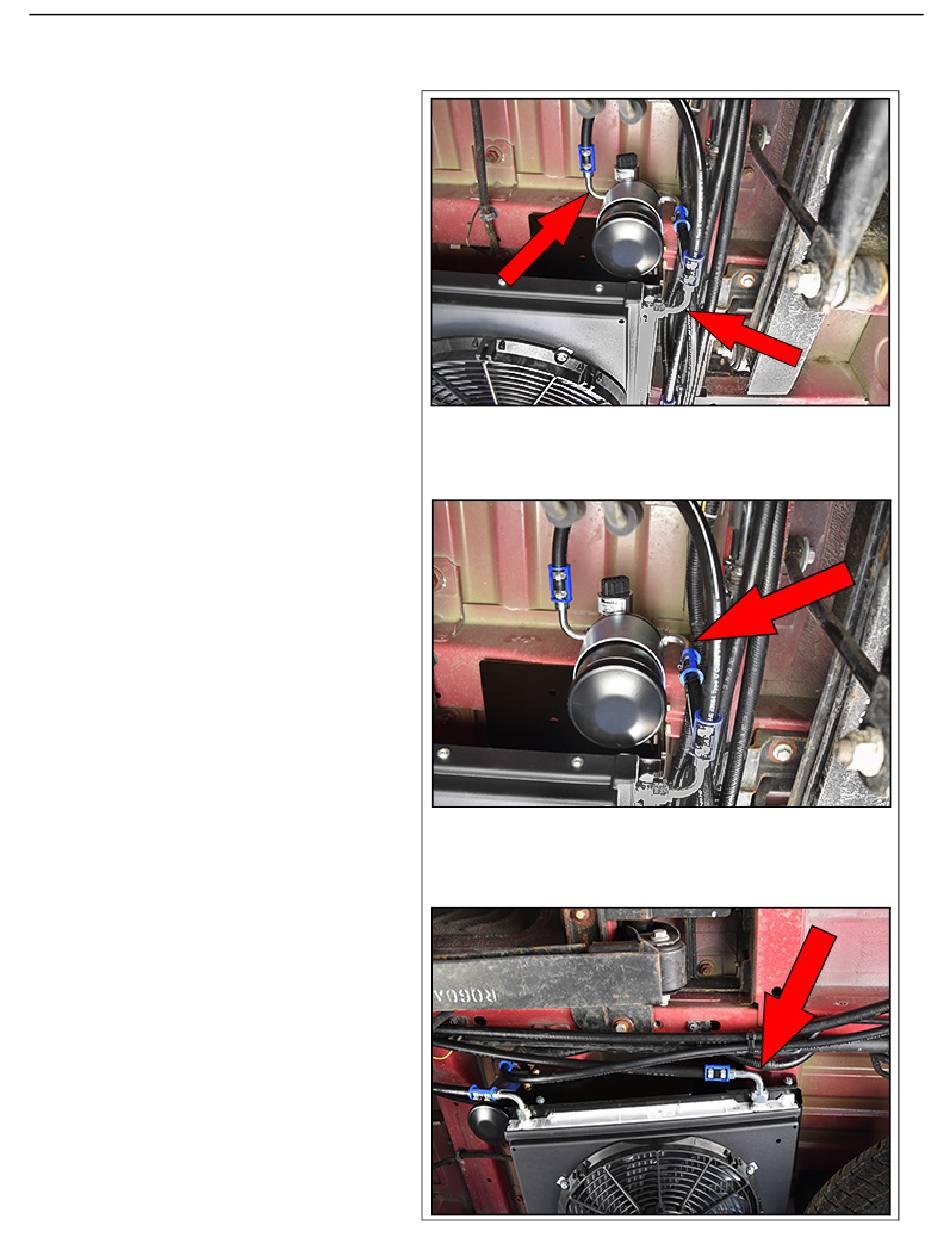

13. Using two #6 90º fittings (30) connect a high-
pressure hose (28) from condenser output port to
the input port on the filter/dryer.
14. Connect a #6 90º fitting (30) to the output on
the filter/dryer and route the hose (28) through
the hole drilled in the floor.
15. Using a #8 90º fitting (37), route A/C hose (36)
from the condenser to the auxiliary A/C
compressor. Do not connect the hose to the
compressor at this time.
