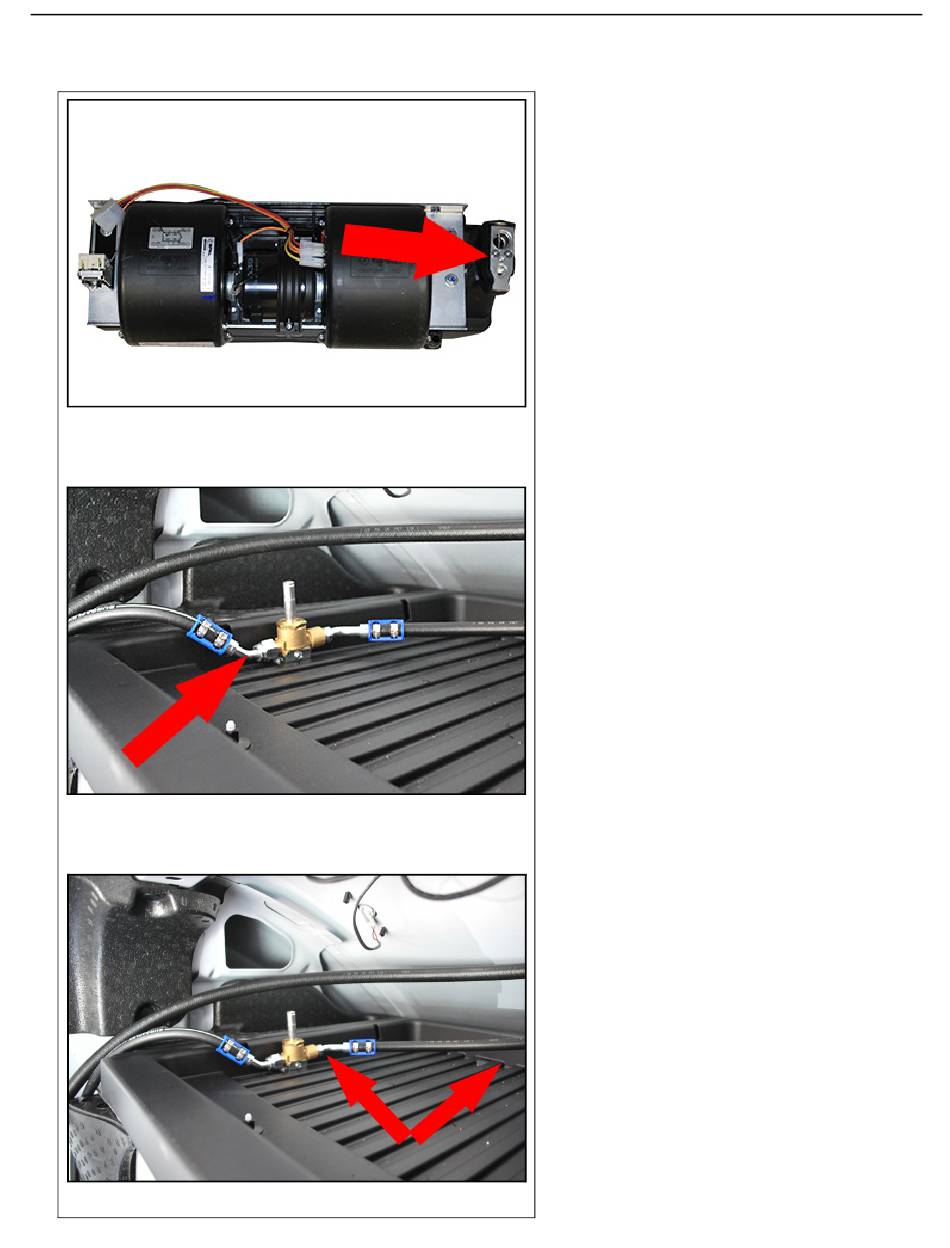

40. Route the hoses through the hole in the
floor. Using the 45º fitting (23), connect the
#10 hose to the Vancouver unit. Loosely
install the TXV mounting (29, 30, 31) plate at
this time.
NOTE: Both fittings are shown connected to
the TXV for clarity only.
41. Trim and connect the #6 hose to the inlet
side of the refrigerant valve using a 45º fitting
(24).
42. Using two 45º #6 fittings (26, 25) and the
appropriate length of #6 hose (8), connect
the Vancouver unit to the refrigerant valve
outlet port.
28
