Vancouver

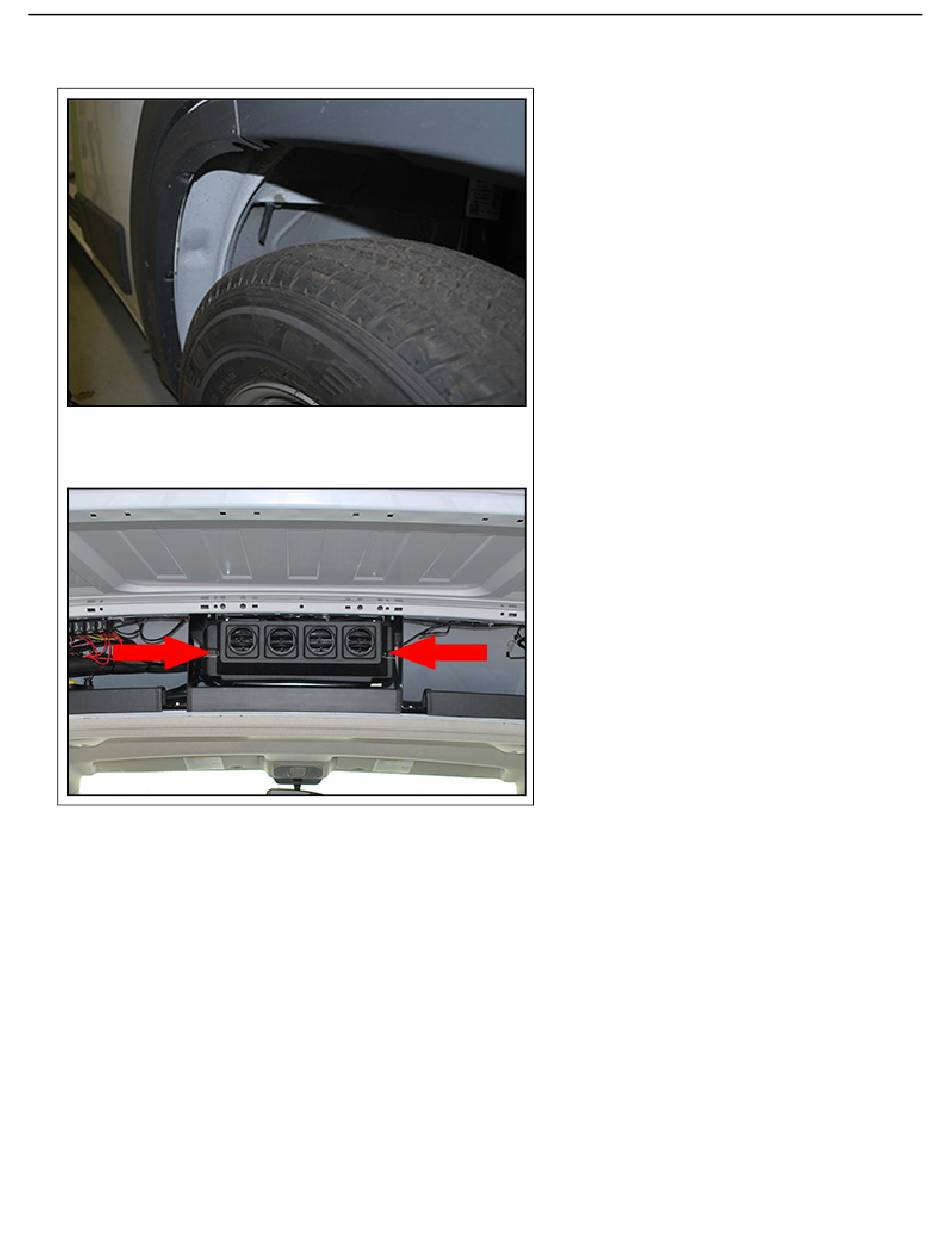

54. Cut the drain hoses approximately 1.5 in (38
mm) below the body at a 45º angle away
from the direction of travel.
Rout the left drain hose along the A/C hoses
through the hole in the floor. Secure and trim
the hose 1.5 in (38 mm) below the body at a
45º angle away from the direction of travel.
55. Using the black self-tapping screws (35),
install the air grille (10) on the Vancouver unit.
56. Add foam insulation (2) to the exposed low-
pressure (larger) hose in the upper package
tray area.
57. Secure the wiring harness and hoses as
necessary (20, 22).
34
Ram ProMaster
