Electrical Connections - Webasto ProMaster Vancouver Standard Manual

Vancouver
Required parts for electrical connections:
Item
Part Number
Number
35 5011593A
18 5013002A
13 5012812B
15 5012882A
17 5012877A
16 5012587A
14 5012430
40 5011932
20 5001085A
22 620406

Electrical Connections

Description
SCREW - BLACK
BRACKET CONTROL HEAD NEO 1 PROMASTER
CONTROLLER NEO 1 AC
WIRE HARNESS ADAPTER NEO 1 5500MM
WIRE HARNESS BLOWER NEO 4000-7000MM
HVAC WIRE HARNESS T-STAT or LP 8600mm
HVAC WIRE HARNESS SOLENOID VALVE 9000mm
PLUG FUSE ATM-APM MINI ADD-A-CIRCUIT
CABLE TIE - HEAVY DUTY BLACK
CABLE TIE - 11 INCH
16
NOTE: The location shown is not the only
location where edge trim is necessary.

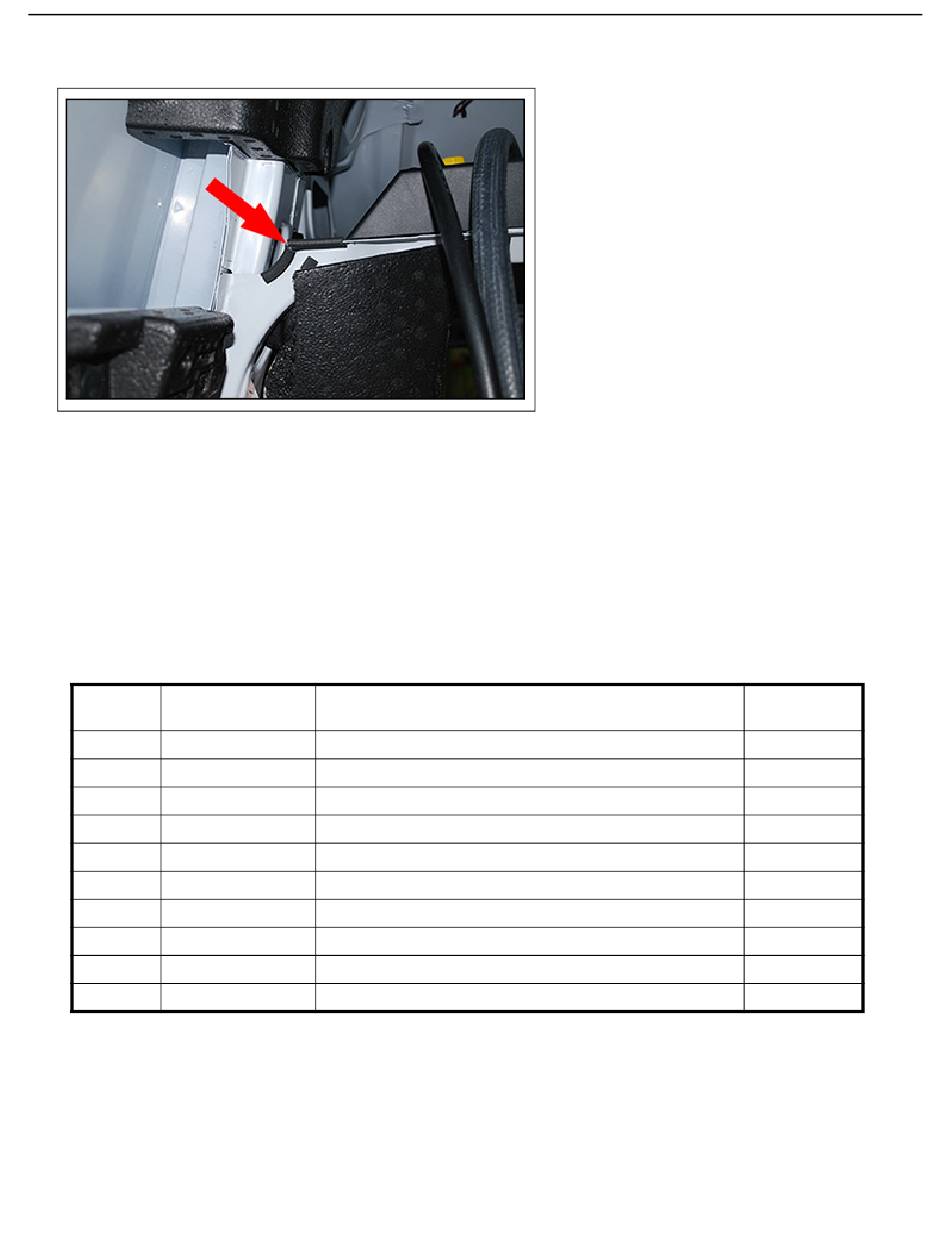

14. To prevent chaffing, install edge trim (21) to
the portions of the body where wiring or
hoses may rub.
Ram ProMaster
Quantity
3
1
1
1
1
1
1
1
As needed
As needed
