Drain Tube Installation - Webasto ProMaster Vancouver Standard Manual

Ram ProMaster
Required parts for drain tube installation:
Item
Part Number
Number
12 5011506A
20 5001085A
22 620406
10 62U003AA020B
35 5011593A
2 5011556A

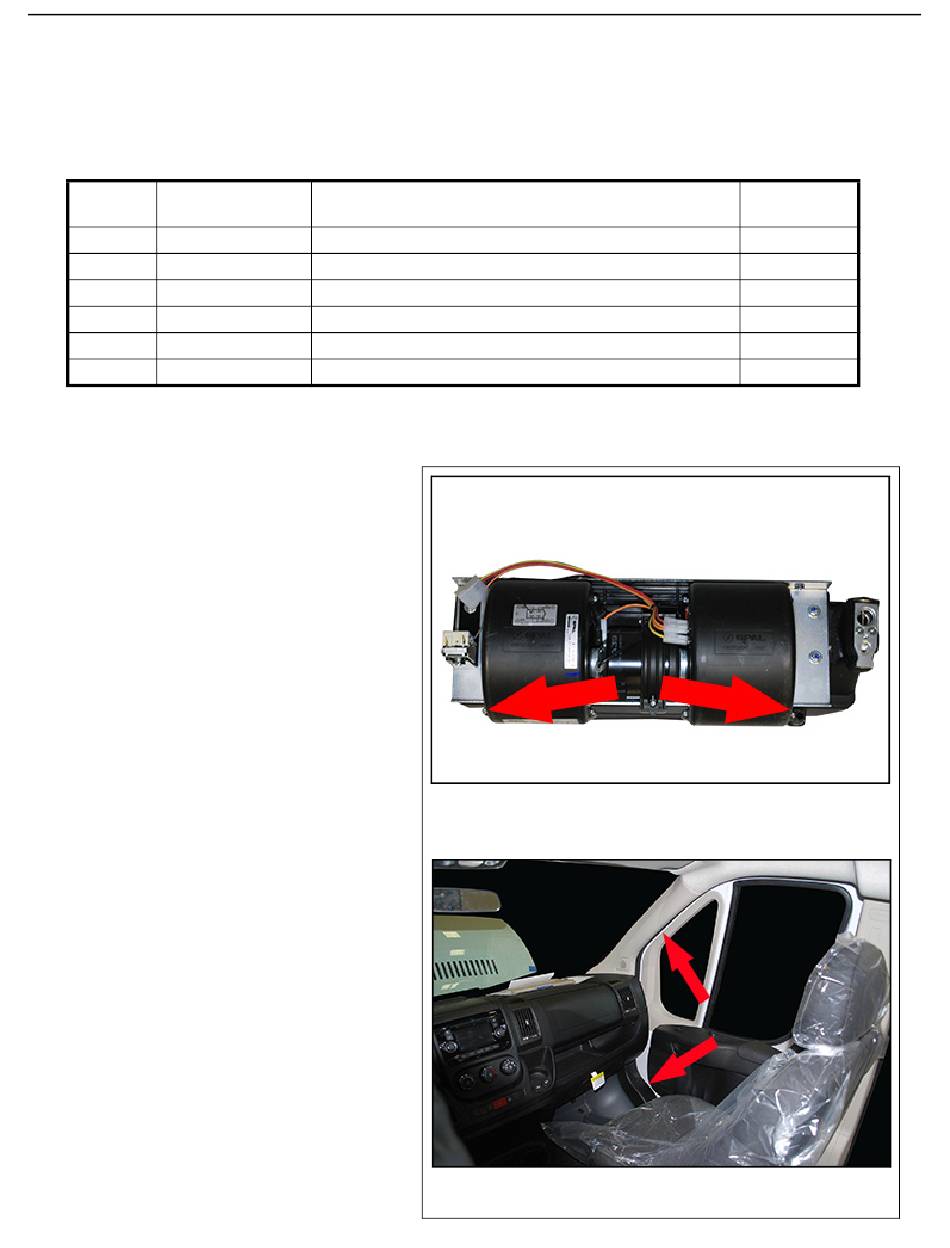

46.Connect the 5/8 inch drain hoses (12, and
included with Vancouver) to the drain fittings
on the Vancouver unit.
47. Remove the upper and lower A-pillar trim
panels on the right side of the vehicle.

Drain Tube Installation

Description
HOSE DRAIN ID 0.4375 INCH
CABLE TIE - HEAVY DUTY BLACK
CABLE TIE - 11 INCH
AOR DUCT 4 GRIGLE D67 NERO
SCREW 4.2 X 16MM SELF DRILLING BLACK
INSULATION HOSE ID 0.875IN X 6 FT LONG
31
Vancouver
Quantity
As needed
As needed
As needed
1
2
1
