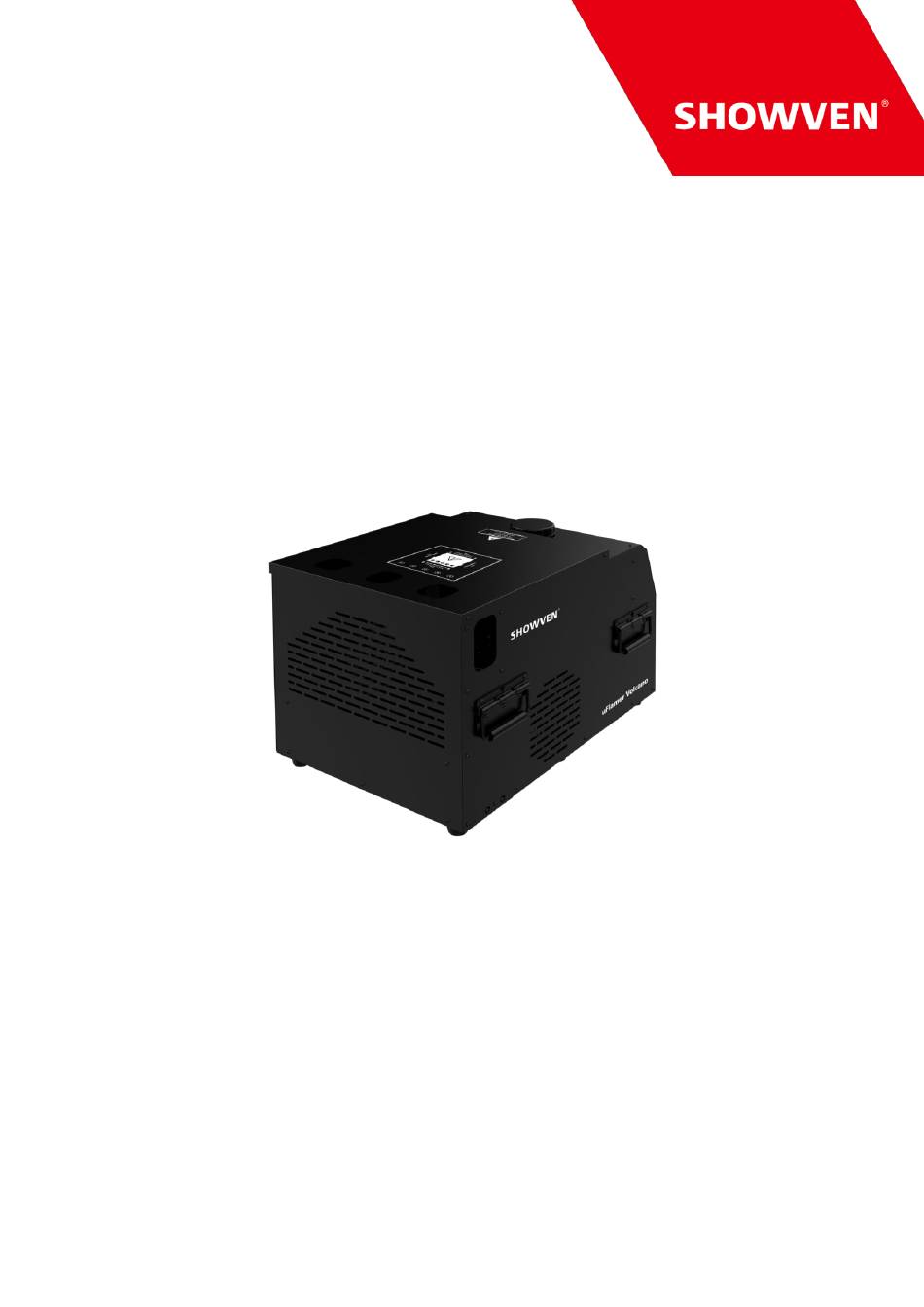

- Page 1 USER MANUAL uFlamer Volcano V1.1 Showven Technologies Co., Ltd...
- Page 2 Please keep flame fluid away from heat source, sparks, fire or other possibility of ignition. Do not smoke! The operator responsible for the control of uFlamer Volcano must always have a clear view ...
-
Page 3: Functional Characteristics

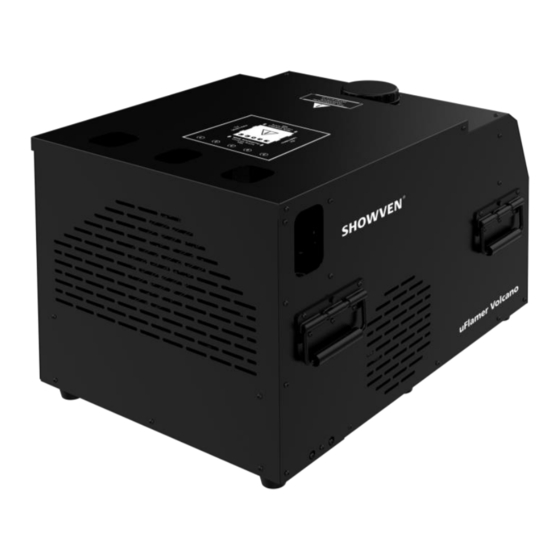

Operate according to instructions is very important for safety, and can elongate the service life of the machine. Strictly follow the instruction in the manual when operate uFlamer Volcano. If you have any doubts, please contact SHOWVEN technologies Co., Ltd by info@showven.cn. - Page 4 ▲ Structure of uFlamer Volcano 1. Fuel Tank Lid 2. Top Panel 3. Handle 4. Control Panel 5. Safety Loop ▲ Connection dimension diagram of bottom bracket...
-
Page 5: Overview Of Control Panel
▲ Overview of Control Panel 1. LCD screen operate panel 2. Pressure indicator 3. Safety indicator 4. 5-pin XLR Socket 5. 110V/220V Power Socket 6. Auto-reset Fuse 7. Fuel Input Quick Coupler (G1/4, ISO7241B 8. Safety Lock 9. ON/OFF Switch 10. -
Page 6: Button Functions
1. LED Display Area: RX: Radio receiving (reserved) DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal ERR: Light on when there is an error PUMP: Light on when pump is running 2. Button Functions: MENU: Switch interface to setup parameter; +: Parameter Up -: Parameter Down ENTER: Confirm and save parameters (screen will flash when parameters saved) -
Page 7: Interface Setup
E6 Tip Err if the machine slant over 45° , it stops running, system will report E6 E7 Low Fuel When fuel 0 report E7 low fuel 6. Interface setup: 1. 6CH Normal Mode / 6CH Pro Mode Press “MENU” to switch through setup menu. Menu Range Explanation... - Page 8 1. Direction explanation Please read the safety distance printed on top panel of CIRCLE FLAMER carefully. 1.1-5 indicate the related head number of uFlamer Volcano. Right side one is head 1, head 3 is in the middle, left side is head 5.
- Page 9 generate flames normally. Please strictly follow the safety distance requirement, remove all human, animal or flammable objects in the danger area. Please fueling with high quality fuel Fueling according to requirement of this manual Make sure power supply in Power and consistent with the rated voltage of DMX cable the equipment, and the socket must...
- Page 10 DMX cable, pack up the device when it is cooled down. 3. Angle Definitions Below schematic shows 5 heads and the projection directions of uFlamer Volcano from Audience Side view. 4. Firing sequence list uFlamer Volcano with more than 97 preset firing sequences. Operator use related channel DMX value or sequence No.
- Page 11 flame Single ignition SHORT Static 0.1s 11-12 flame Single ignition SHORT Static 0.1s 13-15 flame Single ignition LONG Static 0.28s 16-17 flame Single ignition LONG Static 0.28s 18-20 flame Single ignition LONG Static 0.28s 21-22 flame Single ignition LONG Static 0.28s 23-25 flame...
- Page 12 SHORT flame Step Step 2>3>4 L>M>R 0.32s 74-76 sequence SHORT flame Step Step 4>3>2 R>M>L 0.32s 77-79 sequence SHORT flame Step Step 1>3>5 L>M>R 0.32s 80-81 sequence SHORT flame Step Step 5>3>1 R>M>L 0.32s 82-84 sequence SHORT flame Step Step 1>5 L->R 0.21s 85-86...
- Page 13 LONG flame Step Step 5>3>1 R>M>L 0.86s 148-150 sequence LONG flame Step Step 1>5 L>R 0.57s 151-152 sequence LONG flame Step Step 5>1 R>L 0.57s 153-155 sequence LONG flame Step Step 2>4 L>R 0.57s 156-158 sequence LONG flame Step Step 4>2 R>L 0.57s 159-160...
-
Page 14: Dmx Control
Multi ignition SHORT 1245 Static 0.1s 215-216 flame Multi ignition SHORT Static 0.1s 217-219 flame Multi ignition SHORT Static 0.1s 220-221 flame Multi ignition SHORT Static 0.1s 222-224 flame Multi ignition SHORT Static 0.1s 225-226 flame Multi ignition LONG 12345 Static 0.28s 227-229... - Page 15 50~200: Firing Mode 201~255: Pressure Relief Mode (Emergency Stop) ▲ SHOWVEN Flamer Nozzle Information SHOWVEN offer two types of nozzles to generate different effect height. Nozzle M and Nozzle L. Standard configuration is Nozzle M. 1. Nozzle Types ●SFSMA002 Nozzle M Short flame：5~7m...
- Page 16 2. Nozzle replacement Change nozzle Use 14mm outer hexagon socket wrench to disassemble the nozzle, clean the nozzle and nozzle socket with air gun (air compressor), change a different nozzle and install it. Nozzle disassemble tool: SFMET944 Ignitor Position Adjustment After change the nozzle please adjust the ignitor’s position according to below parameters.
-
Page 17: Hardware Description
(effects lasts for 30min) 4. Multi trigger sources: manual, music or midi input 5. RDMX monitoring function: system can send back uFlamer Volcano working status info such as pressure, warming etc. and display on the screen 6. Emergency stop function 3. -
Page 18: Maintenance
2. Maintenance 1. To maintain the system in good performance and running status, it is recommended to running the device at least once per month. 2. Maintenance of the nozzle: Nozzle need to be cleaned up , and it is recommended that once every six months (depending on the environment and frequency of use). -
Page 19: Warranty Instructions
Warranty Instructions ▲ Sincere thanks for your choosing uFlamer Volcano, you will receive quality service from us. ▲ The product warranty period is one year. If there are any quality problems within 7 days after shipping out from our factory, we can exchange a brand new same model machine for you. - Page 22 Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
