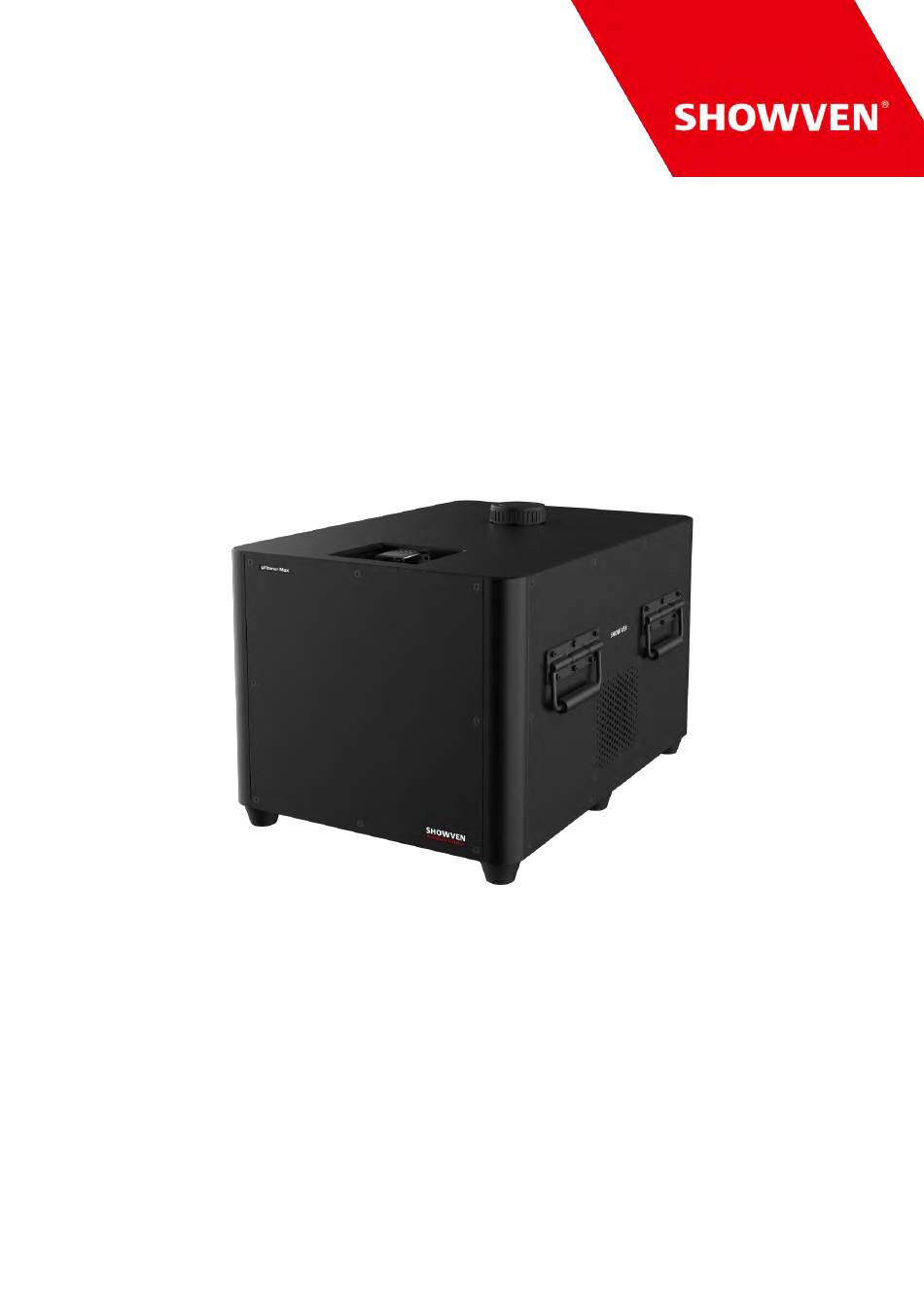

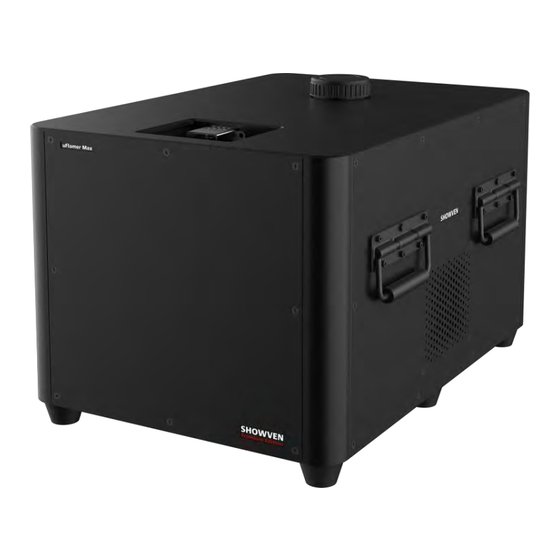

USER MANUAL
U-FLAMER MAX
V1.0
2024/04/22
SHOWVEN Technologies Co., Ltd
PREMIUM FACTORY - OFFICIAL DISTRIBUTOR
info@premiumfactory.eu | www.premiumfactory.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the U-FLAMER MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Showven U-FLAMER MAX

Summary of Contents for Showven U-FLAMER MAX

  • Page 1 USER MANUAL U-FLAMER MAX V1.0 2024/04/22 SHOWVEN Technologies Co., Ltd PREMIUM FACTORY - OFFICIAL DISTRIBUTOR info@premiumfactory.eu | www.premiumfactory.eu...

  • Page 2: Safety Instructions

    Thanks for choosing SHOWVEN uFlamer Max, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this device. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards.

  • Page 3: Technical Specifications

    Warning A dry powder fire extinguisher, a carbon dioxide fire extinguisher and a fire blanket must be equipped next to the equipment. Someone must be on duty during operation. In case of fire accident, dry powder fire extinguisher can be used when the fire is large, and a carbon dioxide fire extinguisher can be used when the fire is small.
  • Page 4 Structure Δ 1. Top panel 2. Fuel tank lid 3. Fire box 4. Front panel 5. Handle 6. Rear panel 7. Safety loop (optional) 8. Igniter (triple) Diagram of bottom panel...
  • Page 5 Rear Panel Δ 1. LCD screen 2. Touch button 3. ARM indicator light 4. 9-60V pyro signal port 5. DC12V external fuel pump power supply 6. 3-pin XLR IN/OUT 7. Safety switch 8. Power IN / OUT 9. E-stop interface 10.
  • Page 6 1.) Three icons may appear in the status bar 1 : appears when “Flame Monitor” is “ON” : appears when “Flame Monitor” is “ON” and detected successful ignition : appears when “External Trigger” is “ON” 2.) DMX: DMX address, Background turns from BLACK to RED when DMX cable was connected.
  • Page 7 4. Alert Message Alert Message Why it appears How to remove Safety Key Switch at TEST Switch Key to USER MODE E0 Test Mode MODE E0 Factory Factory mode Switch to Normal mode Mode Set “External Trigger” to E0 ExtIgnite ON “External Trigger”...
  • Page 8 Fuel Level Current fuel level User Mode <15000 is under test mode Igniter Voltage Flame monitoring value display Motor Speed Motor running speed display DC voltage DC power supply voltage Pump Run Time Accumulative pump working time Ignition Times Accumulative ignition times 7.
  • Page 9 Machine will alarm and stop working when Fuel Level Alarm 0-100% fuel level lower than setting value Fuel Input ON / OFF Automatic filling tank when fuel level low Automatic filling start when fuel level lower PV ON FuelLevel 0-100% than this setting value.
  • Page 10 Switch Valve Test Switch valve ON/OFF 3 times, 1s per time DC12V Output Test DC12V output test, ON/OFF 3 times, 1s per time Fuel Valve Test Fuel Valve ON/OFF 3 times, 1s per time Igniter 1 Test Igniter 1 ON/OFF 3 times, 1s per time Igniter 2 Test Igniter 2 ON/OFF 3 times, 1s per time Igniter 3 Test...

  • Page 11: Operation

    0~253: Firing OFF Firing ON/OFF 254~255: Firing ON 0 and 255: permanent fire (0.5s is limit duration time) Firing Duration setup 1~254: 10~2540ms duration time (Manual firing duration = DMX Value * 10ms) 0~49 and 201~255: Firing Disable Firing Enable / Disable (Emergency STOP) 50~200: Firing Enable Operation...
  • Page 12 3. Colored fuels are forbidden to use on uFlamer Max it may damage the machine. SHOWVEN excludes liability for the losses, damages and accidents caused by not using qualified fuels in accordance with this requirement. 4. Connecting uFlamer Max Make sure the DMX or pyro controller is disarmed or powered off during cable connection.
  • Page 13 Power on all uFlamer Max. Check the safety lock, double confirm it stays at “TEST MODE”. g) Assign DMX address for each unit of uFlamer Max. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine.
  • Page 14 8. Depressurize and Power OFF a) Depressurize the flame unit after show or not use flamer for a period of time b) Power OFF DMX console c) Press E-Stopper to power OFF all machine (if connect with E-stopper) d) Switch safety lock of uFlamer Max to TEST MODE e) Power OFF each unit of machine 9.
  • Page 15 WARNING: Do unplug the power cable when service flamer.

  • Page 16: Maintenance

    Maintenance Δ 1. To maintain the machine in good performance and running status, it is recommended to running the device at least once per month. 2. Check the ignition probes both before and after each show, if there is any foreign objects on it please clean it up.

  • Page 17: Warranty Instructions

    Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
  • Page 18 ASK US FOR YOUR PROFESSIONAL PRICES ! PREMIUM FACTORY SAS - OFFICIAL DISTRIBUTOR 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
