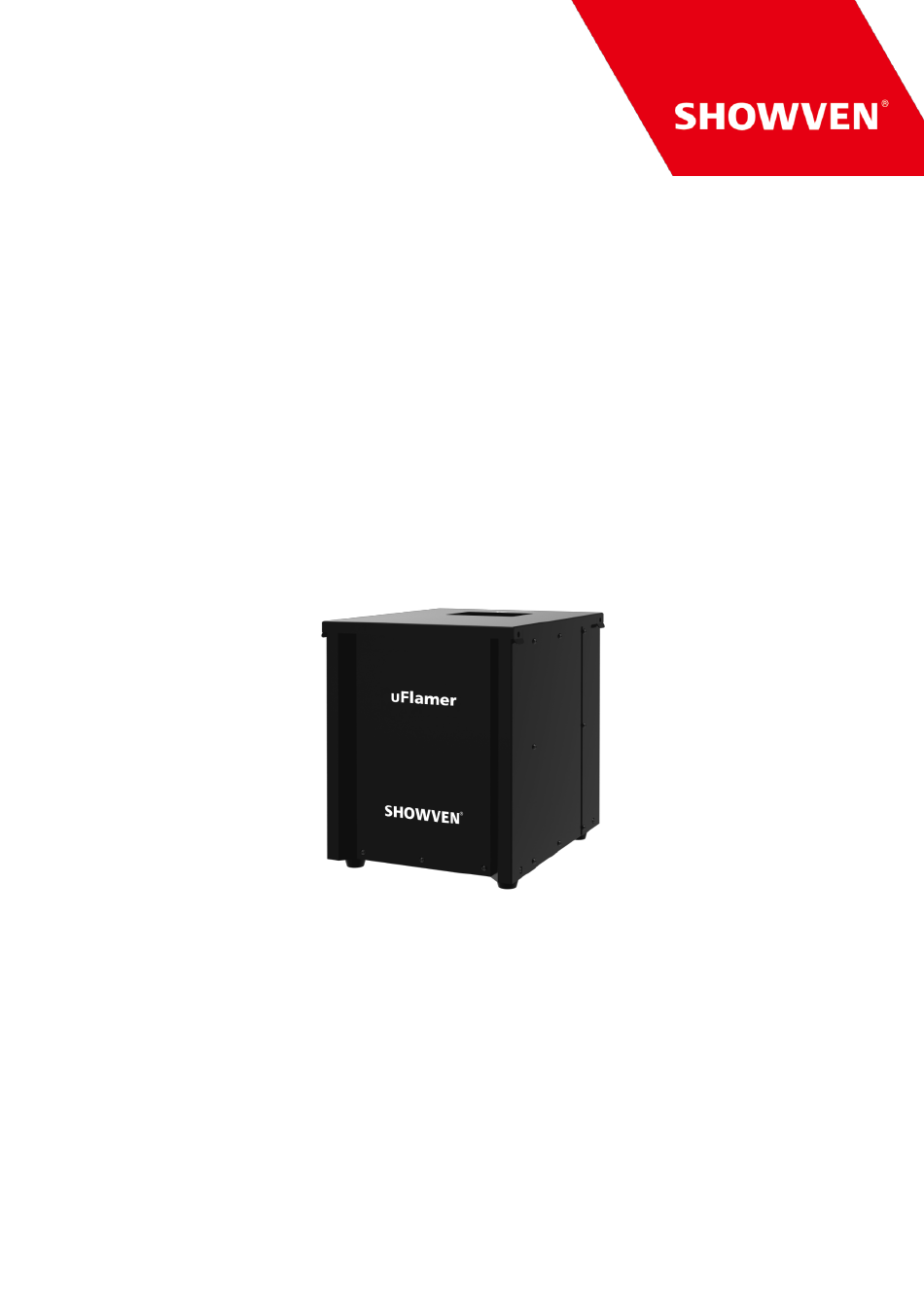

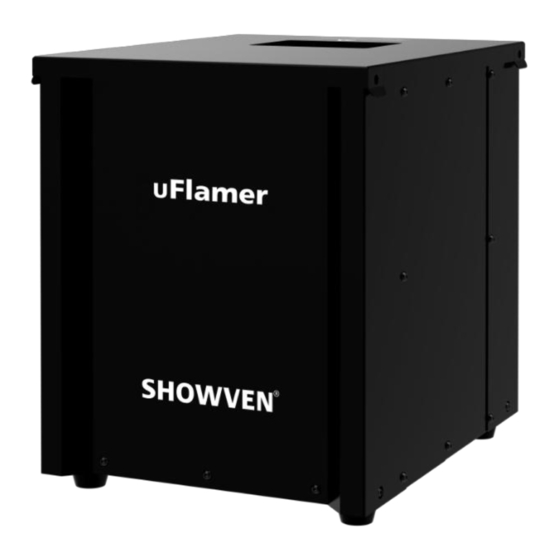

USER MANUAL
uFlamer
V1.0
2021/03/23
Showven Technologies Co., Ltd
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uFlamer and is the answer not in the manual?

Questions and answers

Related Manuals for Showven uFlamer

Summary of Contents for Showven uFlamer

  • Page 1 USER MANUAL uFlamer V1.0 2021/03/23 Showven Technologies Co., Ltd...
  • Page 2 Do not smoke! The operator responsible for the control of uFlamer must always have a clear view of the device, so that he/she can stop the show immediately when there is danger. The main AC power switch should near operator.

  • Page 3: Functional Characteristics

    ▲Functional Characteristics \ Fluid driven vertical flamer original designed by SHOWVEN \ Flame up to 8-10m, indoor nozzle optional \ Super compact pumping system design, easy carrying \ Stainless steel housing, IPX3 waterproof design, reliable and durable \ Built-in 3.5L fuel tank, no external hose connection needed...
  • Page 4 ▲Structure of uFlamer 1. Firing Box 2. Top Panel 3. Fuel Bottle Area 4. Control Panel 5. Safety Loop ▲Overview of Bottom Panel...

  • Page 5: Operation Panel

    ▲Overview of Control Pane ▲Operation Panel 1. LED Display Area: RX: Radio receiving (reserved) DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal ERR: Light on when there is an error PUMP: Light on when pump is running 2.

  • Page 6: Main Interface

    3. Welcome Interface : First Line: Product model and software version Second Line: Equipment series number 4. Main Interface: FIRE 1 M:2CH-P P:75 V:13.6 First Line: Fire address and Safe address on the DMX ChannelMode(2CH-P ); DMX address on the DMX ChannelMode( 6CH / 2CH-N ); Second Line: Pressure75 (e.g.
  • Page 7 Reset default parameter settings ▲Operation Instructions 1. Direction explanation Please read the safety instructions printed on the top panel of uFlamer carefully. Safety distances for uFlamer is at least 15m in projection directions and 5m around. AC 100V-240V 50/60Hz 300W Showven Technologies Co.,Ltd.
  • Page 8 3. Quick Operation Sheet for reference (Specialized for host controller ZK6200/ZK6300) Immediately upon receiving the machine, carefully unpack the carton, check the machine received in good condition. Ensure safety operation of machine, please do following below operation procedures when operate uFlamer. Operation Schematic diagram and explanation Explanation...
  • Page 9 (both of the lights on) Host controller: Press “FIRING” key Firing Relief pressure when shows finished Pressure or uFlamer not use for a long period. Relief Host controller: Press “pre-heat” key (both of the lights off) Switch safety lock to TEST...

  • Page 10: Hardware Description

    CH-1 Ignition ON/OFF: (0~110) Ignition OFF, (111~255) Ignition ON Mode setup: (0~49) Pressure Relief Mode (Emergency Stop), (240~255) Compression CH-2 Mode ▲SHOWVEN host controller ZK6200/ZK6300 1. Hardware description: \ MODEL: X-F1800 \ DIMENSION: 590× 360× 370mm \ WEIGHT: 30kg \ VOLTAGE: 100-240V, 50/60Hz...

  • Page 11: Operational Panel

    2. SHOWVEN host controller introduction: 1. Standard DMX512 signal output 2. Support 18units CIRCLE FLAMER (ZK6200) or 54units CIRCLE FLAMER (ZK6300) at the same time 3. 5 standard dynamic modes: Synchronization, Center to Ends, Ends to Center, Left to Right, Right to Left.
  • Page 12 (4) LCD display Area: F1: Main menu F2: File selection F3: Configuration F4: About host controller (5)Edit/Control Area: Set circle flamer DMX address as below: FLAMER No. DMX address...

  • Page 13: Battery And Maintenance

    CONFIG ABOUT 1. Set the FIRING DURTN, REPEAT PERIOD and REPEAT COUNTS values. (ignore SEQUENCE setting on uFlamer) 2. Press “Pre-heat” to activate the compression of device. 3. Press the “Firing” to make a show. Note: Put safety lock at “TEST MODE” to check the signal connection and nozzle status before use the device for firing.

  • Page 14: Maintenance

    Standard 5200mah 35c-70c Voltage 14.8V Size 140*43*44mm Charge Jack 2.54-5A Discharge Jack XT60 Installation Contact our sales for the video 2. Maintenance 1. To maintain the system in good performance and running status, it is recommended to running the device at least once per month.

  • Page 15: Warranty Instructions

    1. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors; 2. Disassemble, modify or repair products without Showven’s permission; 3. Damage caused by external reasons (lightning strike, power supply etc) 4. Damage caused by improper installation or use;...
  • Page 16 Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
