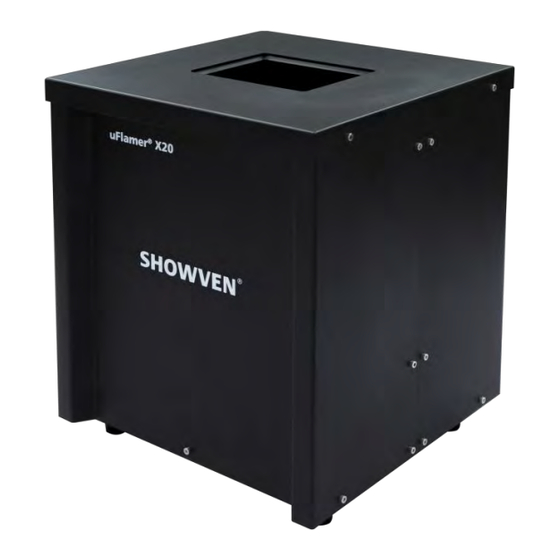

Showven uFlamer X20 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

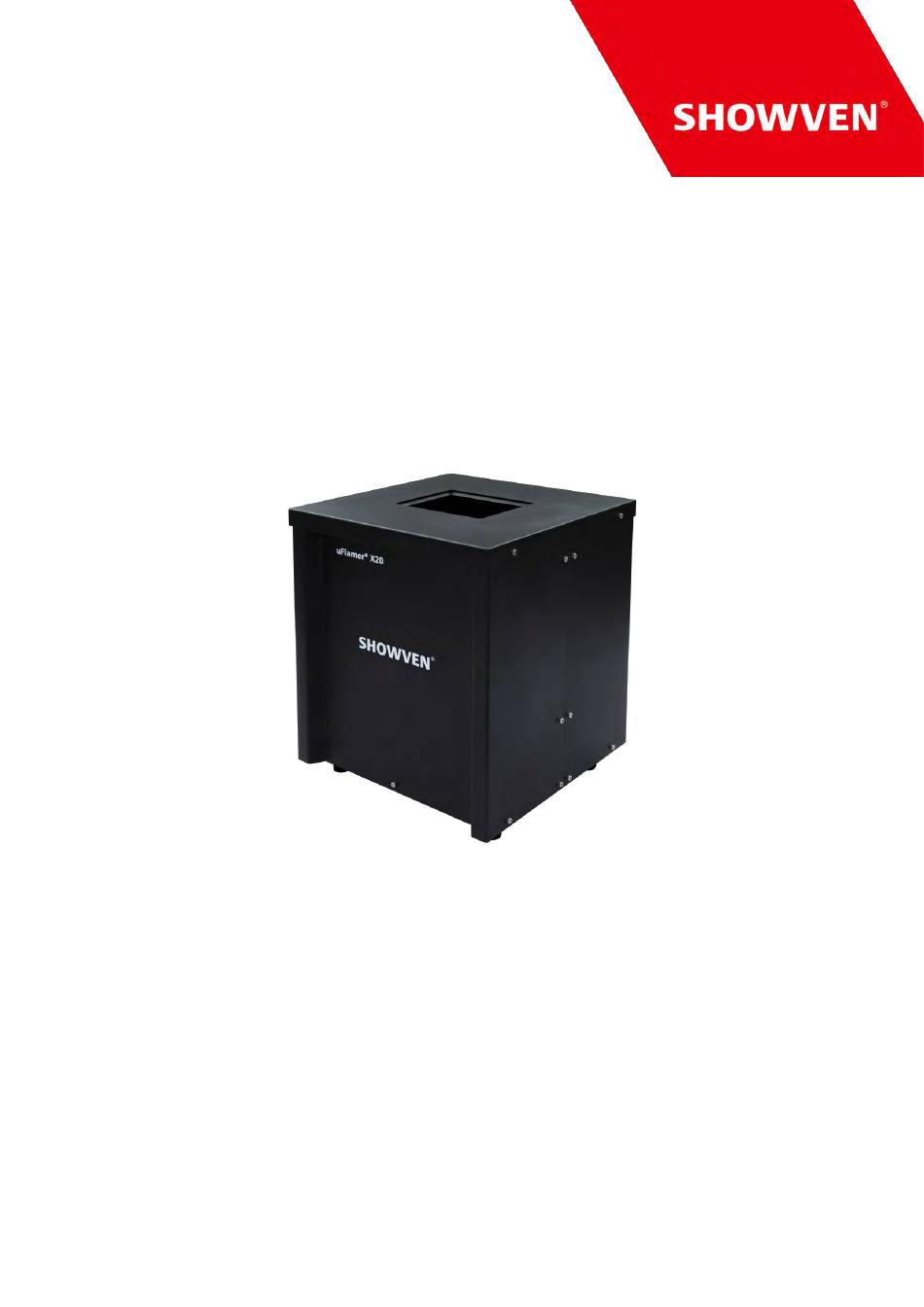

USER MANUAL
uFlamer X20
V1.0
2023/05/18
SHOWVEN Technologies Co., Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uFlamer X20 and is the answer not in the manual?

Questions and answers

Related Manuals for Showven uFlamer X20

Summary of Contents for Showven uFlamer X20

  • Page 1 USER MANUAL uFlamer X20 V1.0 2023/05/18 SHOWVEN Technologies Co., Ltd...

  • Page 2: Safety Instructions

    Thanks for choosing SHOWVEN Flame system, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this system. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards.

  • Page 3: Technical Specifications

    Warning Fuel requirements for SHOWVEN flame system, for safety and long service life of flame system, please strictly follow below requirements. SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents and damages if not following below requirements.
  • Page 4 Structure Δ 1. Top panel 2. Nozzle box 3. Front panel 4. Igniter (triple) 5. Rear panel 6. Safety loop Diagram of bottom panel...

  • Page 5: Rear Panel

    Rear Panel Δ 1. LCD Screen 2. Indicator light 3. Safety switch 4. 9-60V pyro signal port 5. 3-pin XLR IN/OUT 6. 5-pin XLR IN/OUT 7. Power IN 8. Pressure gauge 9. Safety loop M8 10. FUEL IN quick coupler (ISO 7241B G1/4 male) 11.

  • Page 6: Dmx Address

    2. Button functions MENU: Switch interface to setup parameter; +: Parameter Up -: Parameter Down ENTER: Confirm and save parameters (screen will flash once when parameters saved) Note: screen display will switch to main interface if there is no operation in 15s. 3.
  • Page 7 0~239: disarm CH-2 Armed / Disarm 240~255: armed 2CH-P: In this channel mode uFlamer X20 occupies 1 functional channel and 1 separate safety channel (this channel is independent from operational channel, can be shared with other machine). Channel Function Value...

  • Page 8: Operation

    (b). No person and flammable materials are allowed to stay inside the safety isolation zone when flamer was armed. uFlamer X20 with default nozzle can generate a flame effect up to 18m, for safety we suggest a 5m safety radius around the machine.
  • Page 9 Connect a DMX cable to the DMX IN socket of first unit of uFlamer X20, another head of this DMX cable connect to DMX console (such as FXcommander). Make sure the DMX console is powered off.

  • Page 10: Nozzle Replacement

    10. Disconnect hose connection, stop fuel supply. Disconnect the hose connection on uPumper P20H. 11. Power OFF a) Power OFF DMX console b) Switch safety switch of uFlamer X20 to TEST MODE c) Unplug power cable, DMX cable. Nozzle Replacement Δ...

  • Page 11: Maintenance

    If after clean, there are still problems please replace new nozzle. Optional Parts for uFlamer X20 Δ Part. No.

  • Page 12: Warranty Instructions

    Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
  • Page 13 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
