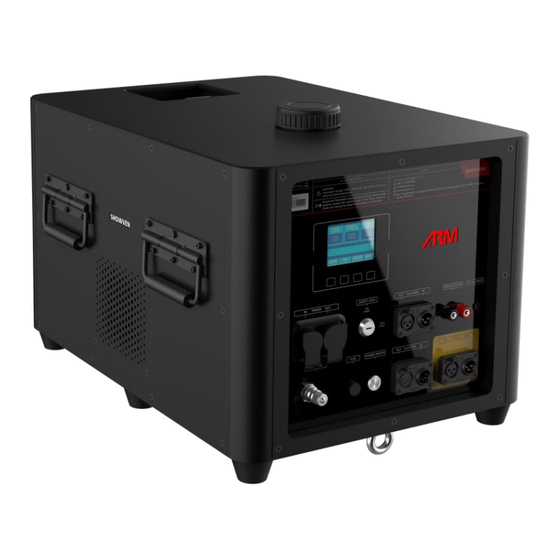

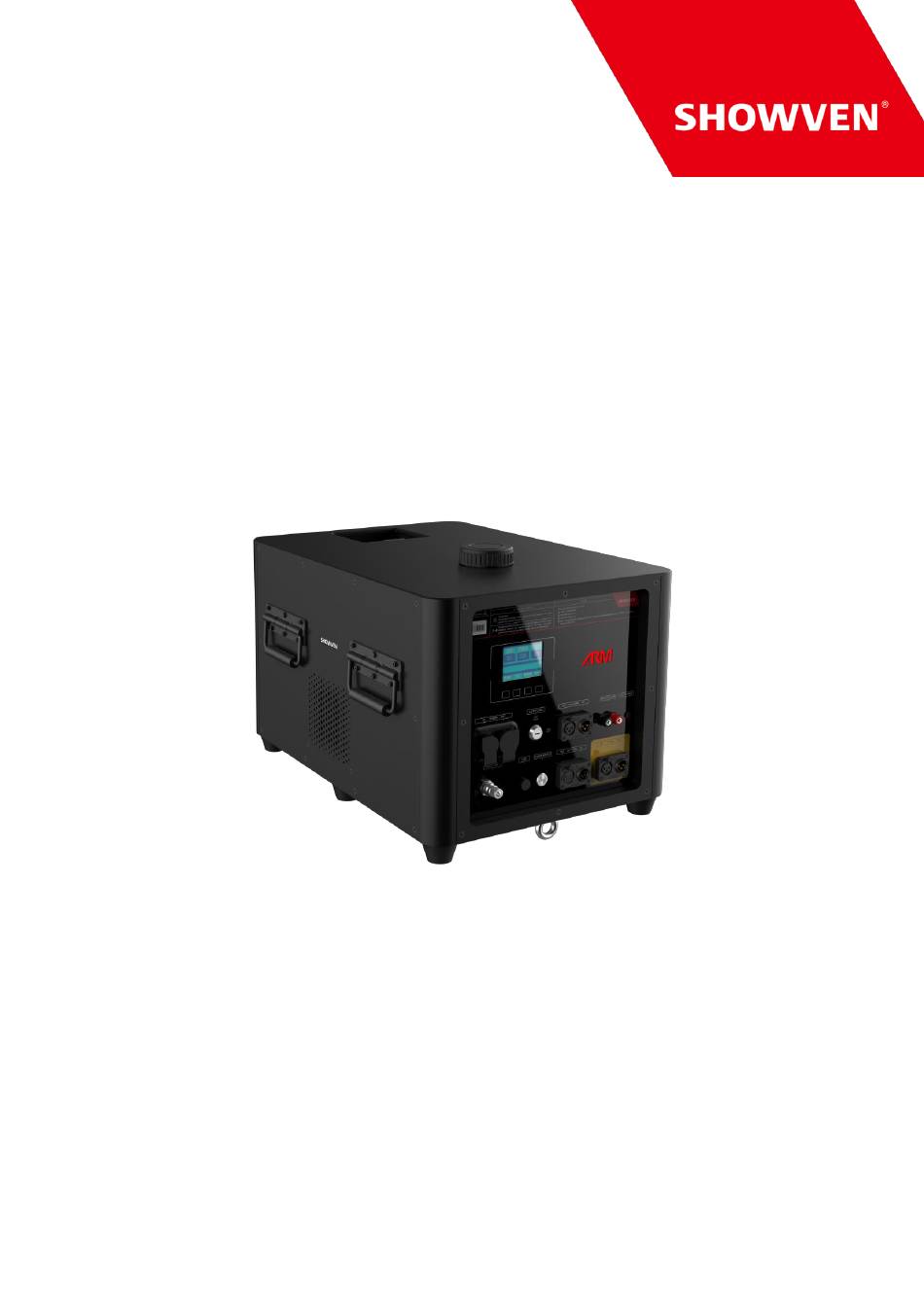

- Page 1 USER MANUAL uFlamer Max Plus V1.0 2024/06/26 SHOWVEN Technologies Co., Ltd...
- Page 2 Thanks for choosing SHOWVEN uFlamer Max, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this device. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards hen handling equipment and provide information on how to avoid those hazards.
- Page 3 Technical Specifications Δ Model: uFlamer Max Plus Housing Material: 304 stainless steel Dimension: 690 475 415mm Weight: 80kg Input: AC200-240V, 50/60Hz Work Power: 2.5KW...
- Page 4 Structure Δ Top panel Fuel tank lid Fire box Front panel Handle Rear panel Safety loop (optional) Igniter (triple) Diagram of bottom panel...
- Page 5 Rear Panel Δ LCD screen Touch button ARM indicator light 9-60V pyro signal port DC12V external fuel pump power supply 3-pin XLR IN/OUT Safety switch Power IN / OUT E-stop interface 10. 5-pin XLR IN/OUT (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with DC5V power supply) 11.
- Page 6 Main interface 1.) Three icons may appear in the status bar 1 : appears when “Flame Monitor” is “ON” : appears when “Flame Monitor” is “ON” and detected successful ignition : appears when “External Trigger” is “ON” 2.) DMX: DMX address, Background turns from BLACK to RED when DMX cable was connected. SAFE: Safety address, Background turns from BLACK to RED when DMX cable was connected and safety channel activated.
- Page 7 4. Error Message Error Message Why it appears How to remove Consecutive pressurize failure times Restart machine or reset safety E1 Pressure Err exceed “Pressure Fail Cnt” setting value channel Pressure keep above 10 after pressure Restart machine E2 P Relief Err relief Power supply module abnormal, Voltage abnormal...
- Page 8 8. Advanced menu Select “ADVANCED” in menu interface, press “EDIT” enter advanced menu. Use UP / DOWN / SAVE to change the parameters. Items Contents Default Description External Trigger OFF / ON Trigger through 9-60V pyro ignition signal Firing duration under external trigger, this External Time 0.2s~3s 0.2s...
- Page 9 0~49 and 201~255: Firing Disable (Emergency STOP) Firing Enable / Disable 50~200: Firing Enable NOTICE: SHOWVEN FXcommander / HOST CONTROLLER equipped with check liquid level and pressure function. When safety channel disable (firing disable) it shows liquid level; safety channel enable (firing enable) shows pressure value.
- Page 10 Operation Δ 1. Safety distance explanation Safety distance for uFlamer Max divided into two parts safety radius around machine (a) and safety distance at firing direction (b). No person and flammable materials are allowed to stay inside the safety isolation zone when flamer was armed. The safety radius around machine with a radius of 5m.
- Page 11 If control by 9-60V pyro signal, follow below steps: a) Connect a power cable to the POWER IN socket of uFlamer Max Plus. Connect the other end of power cable to the power source. Make sure power supply in consistent with the rated voltage of...
- Page 12 Test the ignition function of uFlamer Max Plus, we can check whether the igniters of each unit of uFlamer Max Plus is working fine. Due to the safety switch is stay at TEST MODE there will be only ignition while jet solenoid valve is not open, so no flames generated.
- Page 13 Nozzle Replacement and Igniter Position Adjustment Δ Nozzle Replacement Use 14mm outer hexagon socket wrench (SFMET944) to disassemble the nozzle, clean the nozzle and nozzle socket with air gun (air compressor), change a new nozzle and install it. Mark 1 in below picture is NOZZLE XXH, it is the main nozzle for 20m flame effect. 2 is NOZZLE EL, is the auxiliary nozzle.
- Page 14 WARNING: Please pay attention to the tightening torque of the fuel drain screw. It should not exceed 10N*m, otherwise, the fuel tank will be damaged. This operation is prohibited for non-professionals. Optional Parts for uFlamer Max Plus Δ Part. No.
- Page 15 Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
- Page 16 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
