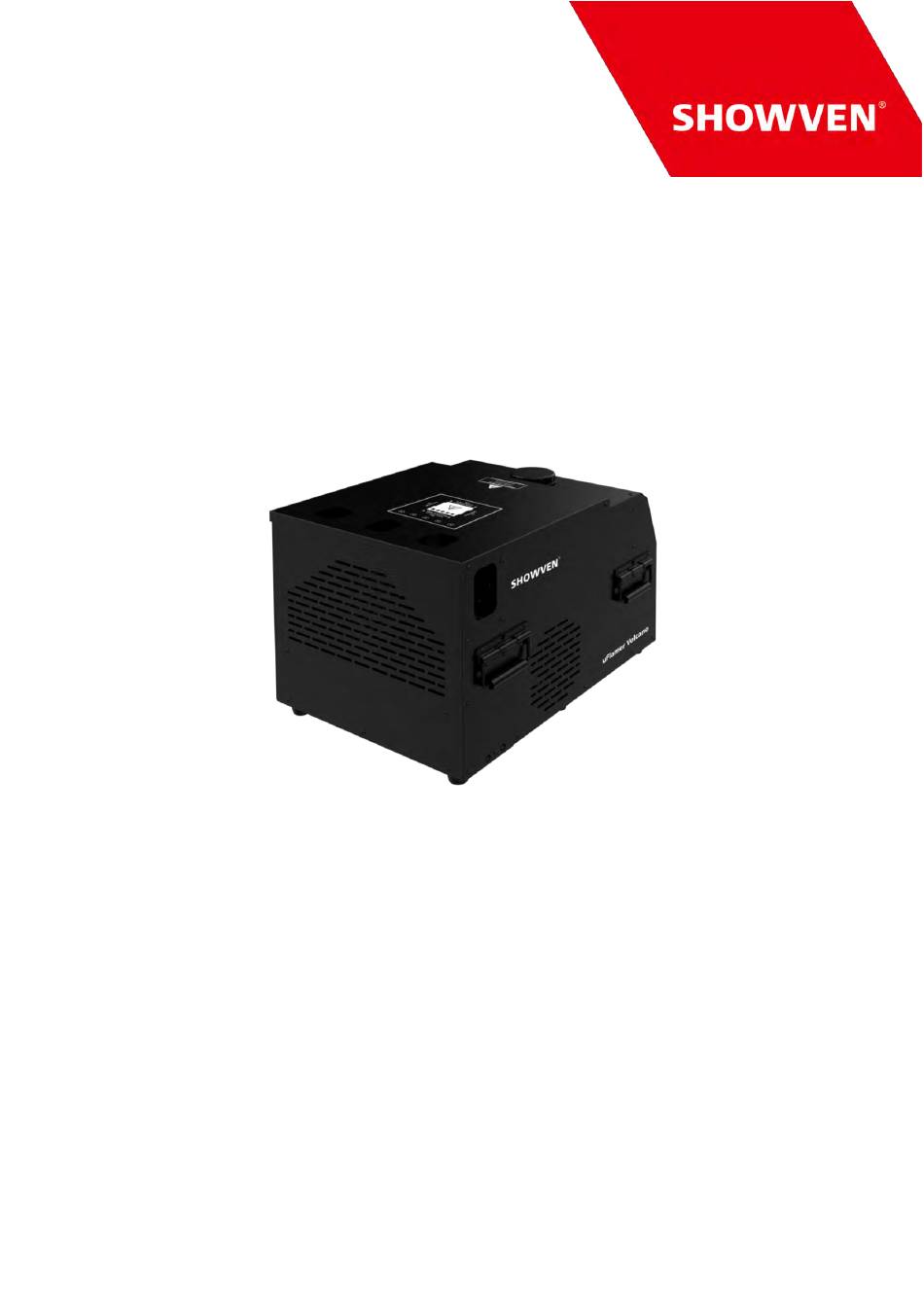

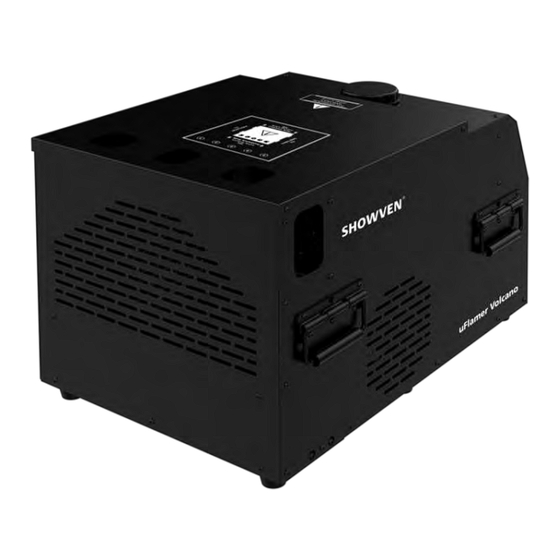

- Page 1 USER MANUAL U-FLAMER VOLCANO V2.1 2022/09 Showven Technologies Co., Ltd. PREMIUM FACTORY - OFFICIAL DISTRIBUTOR info@premiumfactory.eu | www.premiumfactory.eu...
- Page 2 Foreword Δ Thanks for choosing SHOWVEN uFlamer Volcano, we wish it will bring you lots of exciting moments. Please read following manual carefully and completely before operating this product. Operate according to instructions is very important for safety, and can elongate the service life of the machine.
-
Page 3: Functional Characteristics
Functional Characteristics Δ 5-heads liquid flamer, independent control of each head, flames up to 10m Internal pump, plug and play system 25L built-in stainless steel fuel tank, real-time fuel level display, support automatic refueling station Safety switch key safer for service Integrated valve block design, premium and independent jet valve, safe and reliable Reinforced stainless steel housing Customized water-proof igniter and rain-proof structure design, can be used in rainy day... - Page 4 4. Control Panel 5. Safety Loop 6. Wind shield Overview of bottom panel Overview of Control Panel 1. LCD screen operate panel 2. Pressure indicator (Blue LED) 3. Safety indicator (Red LED) 4. 5-pin XLR Socket 5. 110V/220V Power Socket 6.
-
Page 5: Operation Panel
7. Fuel Input Quick Coupler (G1/4, ISO7241B) (NOTE: external fuel input pressure < 0.8MPa) 8. Safety Lock 9. ON/OFF Switch 10. 3-pin XLR Socket 11. DC 9V-60V pyro igniter signal port Operation Panel Δ 1. LED Display Area: RX: Radio receiving (reserved) DMX: DMX signal. - Page 6 Second Line P: Pressure Value 100 (100=10bar) L: Liquid level 50% 5. Alert Message: Alert Message Why it appears How to remove Safety Switch at TEST MODE Switch to USER MODE E0 Test Mode E0 Factory Mode Factory mode Switch to Normal mode Invert function ON Set Invert to OFF E0 Invert On...
- Page 7 located at USER MODE before test. Jet Valve 3 Jet Valve 4 Jet Valve 5 Trigger through 9-60V ExtIgnite signal (such as Ext Ignite OFF / ON fireworks ignitor signal) ON/OFF switch. Firing all 5 heads. Firing time setup when activated through Ext Ext Ignite Time 0.1-2.0s (0.5s) Ignite signal...
- Page 8 Single Ignition Sequence List Sequence Ignition Firing Duration CH5 DMX Description Flame Activity head No. (for reference) Reference Value Single ignition SHORT flame Static 0.1s Single ignition SHORT flame Static 0.1s Single ignition SHORT flame Static 0.1s 8-10 Single ignition SHORT flame Static 0.1s 11-12...
- Page 9 Step 5>1 SHORT flame Step sequence R->L 0.21s 87-89 Step 2>4 SHORT flame Step sequence L->R 0.21s 90-91 Step 4>2 SHORT flame Step sequence R->L 0.21s 92-94 Step 1-5 LONG flame Step sequence L->R 1.45s 95-96 Step5-1 LONG flame Step sequence R->L 1.45s 97-99...
- Page 10 Step 15>3>24 LONG flame Step sequence LR>M>LR 0.86s 187-188 Step 24>3>15 LONG flame Step sequence LR>M>LR 0.86s 189-191 Step 15>24>3 LONG flame Step sequence LR>LR>M 0.86s 192-193 Step 3>24>15 LONG flame Step sequence M>LR>LR 0.86s 194-196 Step 3>15>24 LONG flame Step sequence M>LR>LR 0.86s 197-198...
- Page 11 0~253: Ignition OFF Ignition ON/OFF 254~255: Ignition ON 0 and 255: permanent fire (8s is limit duration time, 2s if 5 heads firing simultaneously) Firing Duration setup 1~254: 10~2540ms duration time (Manual firing duration = DMX Value * 10ms) 0-2: no preset sequence, firing through CH1 and CH4 Program sequence setup 3-255: preset sequence, CH1 and CH4 disable DMX value = 2 + Sequence No.*2.55 (ROUND OFF)
-
Page 12: Operation
Control with SHOWVEN Host Controller ZK6200/ZK6300 If use SHOWVEN Host Controller ZK6200 or ZK6300 to program the uFlamer Volcano, after set 6CH Normal Mode for uFlamer Volcano please also set on Host Controller. The setting step is: Press “F3” on Host Controller – find “Device” – choose the right device “CIRCLE FLAMER”. - Page 13 Safety distance in windy environment The safety isolation zone radius (a) and safety distance of firing direction (b) increase with wind direction and wind speed (v, m/s). The safety distance in windy conditions can be calculated as below: For Nozzle M: a = 6 + v; b = 15 + v For Nozzle L: a = 5 + v;...
- Page 14 4. Colored fuels are forbidden to use on uFlamer Volcano it may damage the machine. SHOWVEN excludes liability for the losses, damages and accidents caused by not using qualified fuels in accordance with this requirement. Always have a dry powder fire extinguisher, a CO fire extinguisher and an extinguishing blanket next to the equipment in case of needed.
- Page 15 Make sure power supply in consistent with the rated voltage of the equipment, and the socket must well grounded. b) Power on machine. c) Assign a DMX address for each unit of uFlamer Volcano. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine.
- Page 16 Please fill the machine with qualified fuel. The fuels suggested on Volcano are ISOPAR, ISOPROPANOL, please make sure water content in fuel should less than 0.5%. b) uFlamer Volcano can also support automatic fueling through SHOWVEN fueling station uPumper Fueling, connect the Volcano and Fueling station through Fuel Input quick coupler.
-
Page 17: Maintenance
Igniter Position Adjustment Δ Whenever changed the nozzle or ignition is not good, please check igniter pole position according to below parameters. The right position for ignition pole should have a gap from tip to tip of 4± 0.5mm and a gap between ignition pole and fuel stream of 4±... - Page 18 Optional Parts for CIRCLE FLAMER X-F1800 Δ Part. No. Description pcs / unit RMWAS025 O ring for nozzle RMBOT036 Safety ring RMMET045 Safety rope Wireless receiver ( for wireless control with FXcommander) RMEMD062 Wind shield RMSTE983 SFSMA002 nozzle M SFSMA003 nozzle L SFMET944 Nozzle disassemble tool...
-
Page 19: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 20 ASK US FOR YOUR PROFESSIONAL PRICES ! PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
