- Page 1 USER MANUAL uFlamer PF10 (DMX) V1.0 2022.05...
-
Page 2: Safety Distance
Do not smoke! The operator responsible for the control of uFlamer PF10 must always have a clear view of the device, so that he/she can stop the show immediately when there is danger. The main AC power switch should near operator. -
Page 3: Functional Characteristics

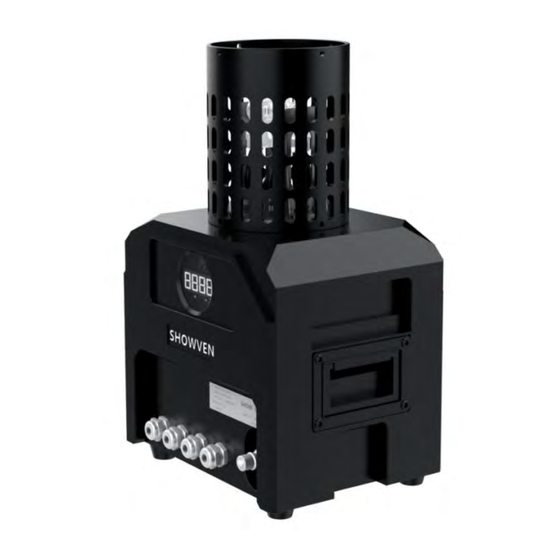

Functional Characteristics Δ IP67 rated waterproof, designed for outdoor installations Dual solenoid valve for extra safety Dual igniter ensure successful ignition Flames up to 10m Aluminum CNC machining structure Oxidation treated housing, durable for outdoor installation Highlight digital tube display convenient for remote debugging Infrared remote control realizes non-contact setting Built-in accumulator Technical Specifications... - Page 4 1. Flame chamber 2. Upper housing 3. Lower housing 4. Display panel 5. Quick coupler (ISO 7241B G1/4 male) 6. AC Power Input (BROWN: Live wire; BLUE: Neutral wire; Yellow: Ground wire), wire length 1m. 7. AC Power Output (BROWN: Live wire; BLUE: Neutral wire; Yellow: Ground wire), wire length 1m. 8.
- Page 5 2. Infrared remote A+ CH1: Value up B- CH2: Value down C< CH3: Unlock and menu switch. Press and hold 10s can unlock the machine, the point in the bottom right corner of the digital tube display is flashing after unlock, operater can press to switch the menu and set up for PF10.
- Page 6 6. Main interface C.X.X.X. C2N and C6CH channel mode, the display information as below: CXXX: Channel mode. C2P is safety channel mode, C2N is 2 channel mode; C6CH is 6 channel mode. DXXX: Firing channel address. Eg: D001 means firing channel DMX address is 1; PXXX: Current pressure display.
-
Page 7: Dmx Control
60 ≤ pressure <150, Ready light long ON When pressure < 60, Ready light OFF. Drive test 1: Ignition test, press confirm (D< CH4), ignition 3 times T00X 1 OR 2 2: Jet solenoid valve test: press confirm (D< CH4), jet valve ON/OFF 3 times Channel mode switch 0: C2P mode... -
Page 8: Nozzle Replacement
C2N channel mode Channel DMX value and function Ignition channel 0~110: Ignition OFF CH-1 111~255: Ignition ON Mode setting 0~239: Test mode CH-2 240~255: User mode In test mode, operator can test the ignition of PF10, but can’t firing. In user mode, machines are armed. -
Page 9: Maintenance
Note: Do unplug the power cable when service flamer. Maintenance Δ 1. To maintain the system in good performance and running status, it is recommended to running the device at least once per month. 2. Maintenance of the nozzle: Nozzle needs to be cleaned from time to time, and it is recommended that once every six months (depending on the environment and frequency of use). -
Page 10: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 11 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
