USER MANUAL
uFlamer
V2.2
2022/11
Showven Technologies Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uFlamer and is the answer not in the manual?

Questions and answers

Related Manuals for Showven uFlamer

Summary of Contents for Showven uFlamer

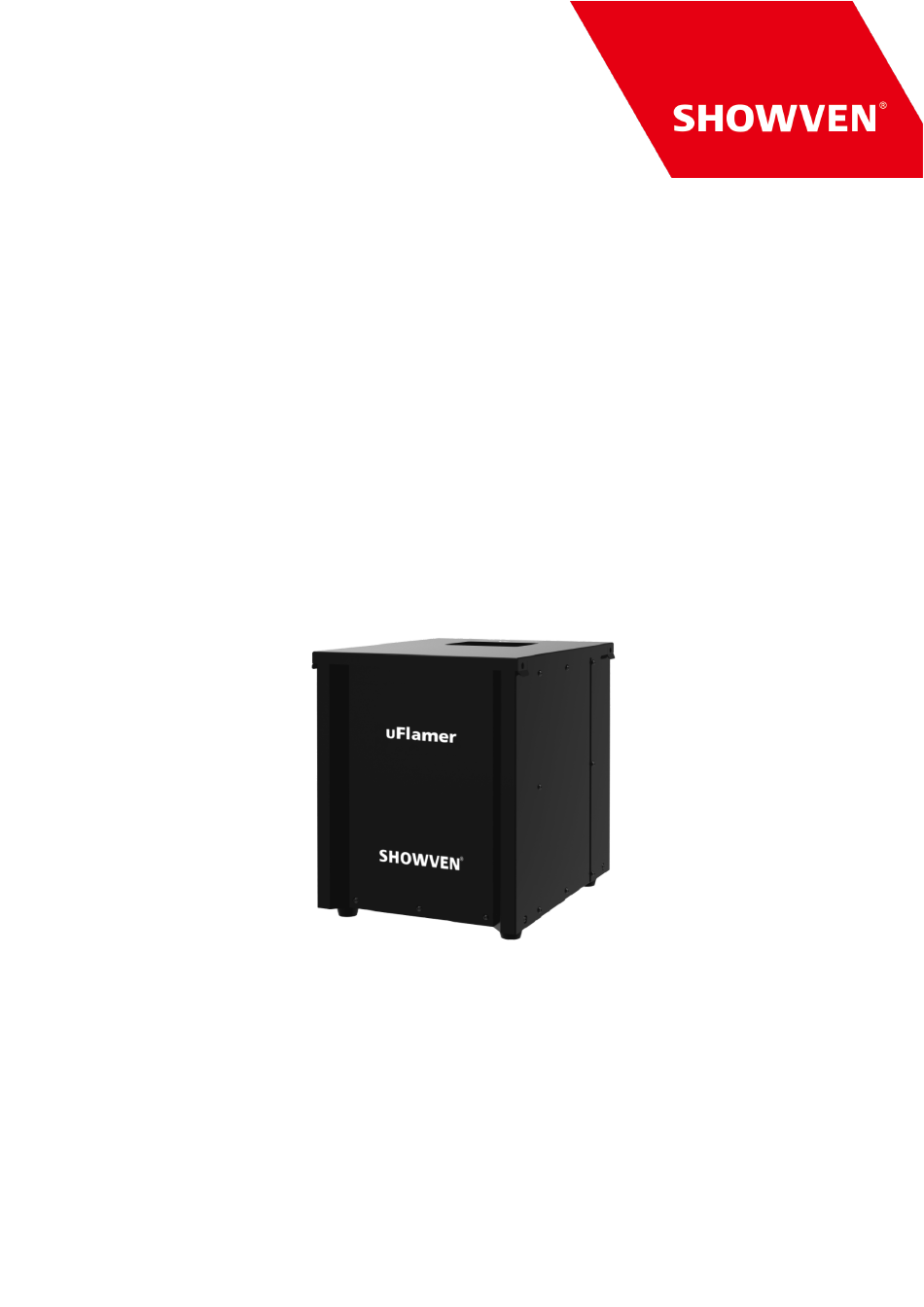

  • Page 1 USER MANUAL uFlamer V2.2 2022/11 Showven Technologies Co., Ltd.
  • Page 3 Do not smoke! The operator responsible for the control of uFlamer must always have a clear view of the device, so that he/she can stop the show immediately when there is danger. The main AC power switch should near operator.

  • Page 4: Functional Characteristics

    Functional Characteristics Δ Fluid driven vertical flamer original designed by SHOWVEN Flame up to 8-10m, indoor nozzle optional Dual igniter, built-in pump, plug and play system Super compact pumping system design, easy carrying Stainless steel housing, can be used in rainy weather, reliable and durable...

  • Page 5: Overview Of Control Panel

    1. Firing Box 2. Top Panel 3. Fuel Bottle Area 4. Control Panel 5. Safety Loop 6. Igniter (dual) Overview of Bottom Panel Overview of Control Panel 1. LCD screen operate panel 2. ON/OFF switch (pressurized indicator light, blue LED) 3.

  • Page 6: Operation Panel

    Operation Panel Δ 1. LED Display Area: RX: Radio receiving (reserved) DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal ERR: Light on when there is an error PUMP: Light on when pump is running 2. Button Functions: MENU: Switch interface to setup parameter;...
  • Page 7 DMX CONTROL Δ uFlamer with 3 different channel mode: 2CH-P, 2CH-N and 6CH. 2CH-P: In this channel mode uFlamer occupies 1 functional channel and 1 separate safety channel (this channel is independent from operational channel, can be shared with other machine).
  • Page 8 If use SHOWVEN Host Controller ZK6200 or ZK6300 to program the uFlamer, after set DMX channel mode on uFlamer please also set on Host Controller. The setting step is: Press “F3” on Host Controller – find “Device” – choose the right device “CIRCLE FLAMER” (6CH mode).

  • Page 9: Operation

    For Nozzle L: a = 2.5 + v; b = 12 + v For example when the wind speed is 3m/s, we use the Nozzle M on uFlamer, then the safety isolation zone radius should be 6m, safety distance of firing direction is 18m.
  • Page 10 4. Colored fuels are forbidden to use on uFlamer it may damage the machine. SHOWVEN excludes liability for the losses, damages and accidents caused by not using qualified fuels in accordance with this requirement. Always have a dry powder fire extinguisher, a CO fire extinguisher and an extinguishing blanket next to the equipment in case of needed.
  • Page 11 DMX console (such as FXcommander). Make sure the DMX console is powered off. f) Connect a DMX cable to the DMX OUT socket of previous uFlamer, and the other end to the DMX IN of next machine. Connect all devices in series in this way.
  • Page 12 Firing, the operator should always have a clear view of the device, so that he/she can stop the show immediately when there is danger. 8. Depressurize Depressurize all uFlamer after use or if not use for a long time during the show we also suggest to depressurize to ensure the safety. 9. Power OFF...

  • Page 13: Battery Recommendation

    13±1mm. Check the ignition success rate after adjustment by firing. Note: Do unplug the power cable when service flamer. Battery Recommendation Δ uFlamer can be driven by battery, you can order battery from us directly or buy it locally. The battery specifications are as below: Capacity 5200mah 20c-70c Voltage 14.8V...
  • Page 14 SFMET944 Nozzle disassemble tool 5500MAH 50C 14.8V 4S XT60 Lithium Battery RMSPS029 SFCAB100 Connection cable between RC battery charger and uFlamer HOT RC Lithium Battery Charger A400 RMEMD057 EU power cord for HOT RC Charger A400 (For EU only) RMCAB083...

  • Page 15: Warranty Instructions

    Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN...
  • Page 16 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
